Electrical Components Location: Location: Engine

• Control module

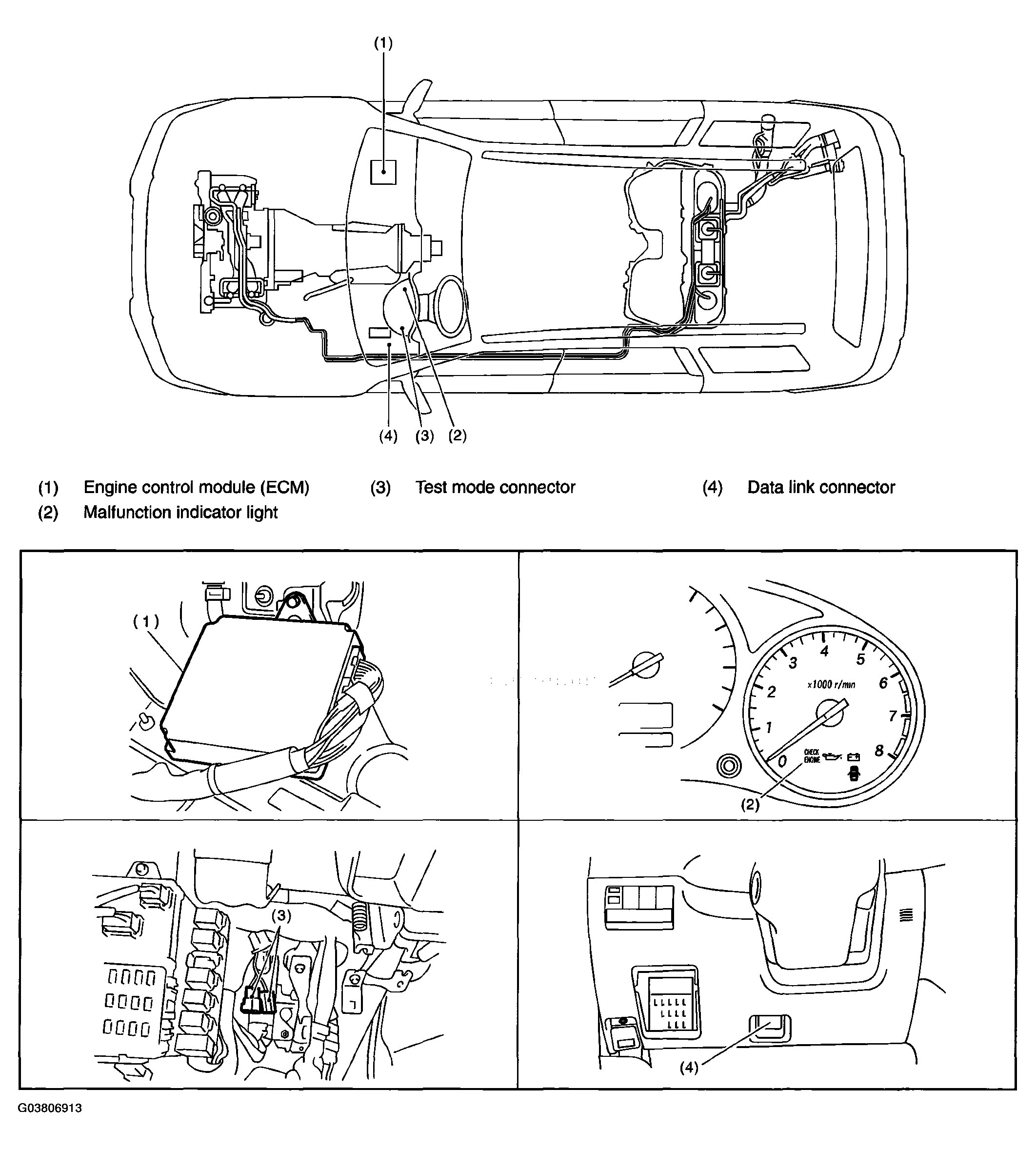

  Fig 1: Identifying Electrical Components Location (Control Module)

  Courtesy of SUBARU OF AMERICA, INC.

• Sensor

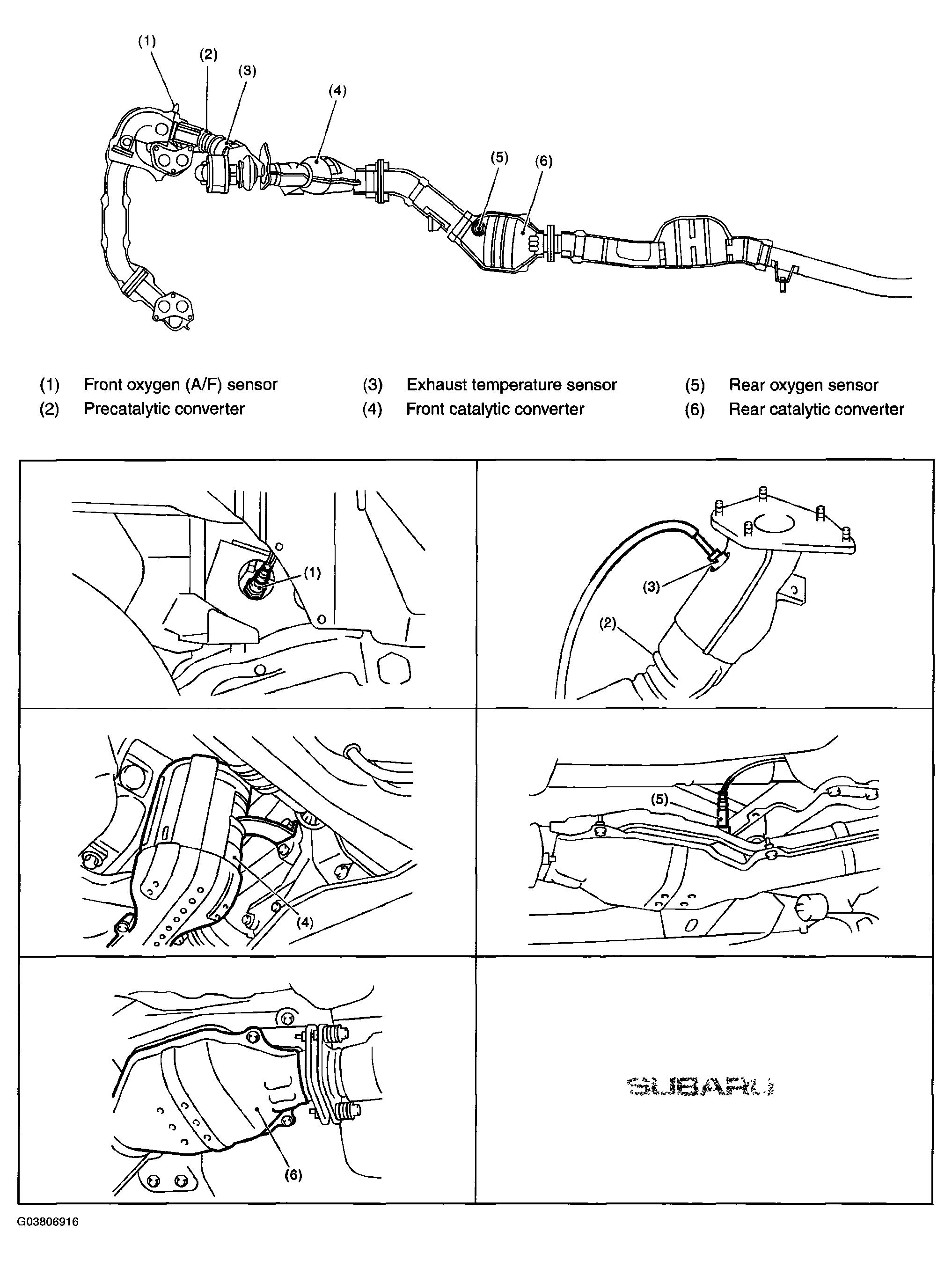

  Fig 2: Identifying Electrical Components Location - Sensor (1 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.

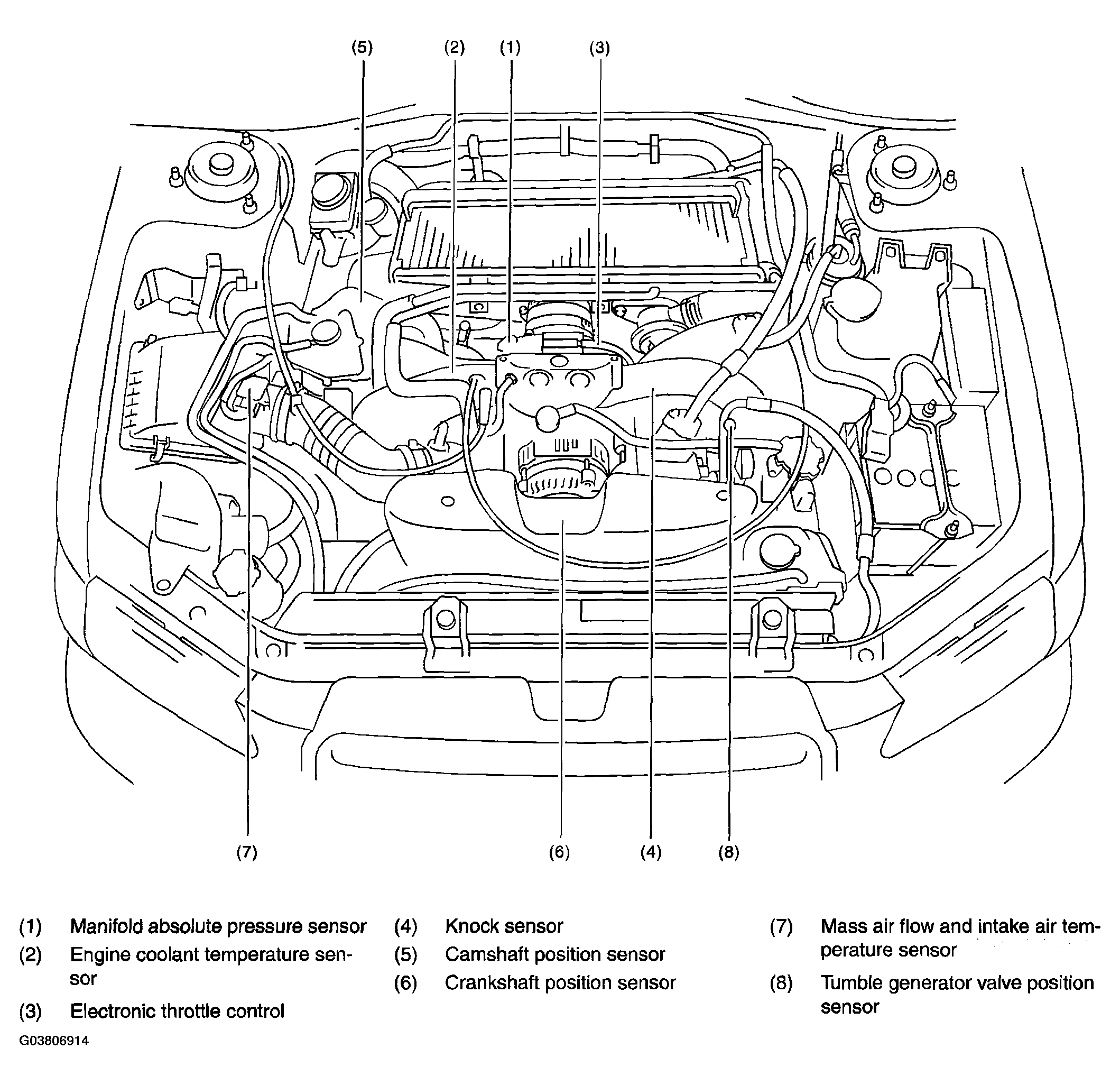

Fig 3: Identifying Electrical Components Location - Sensor (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

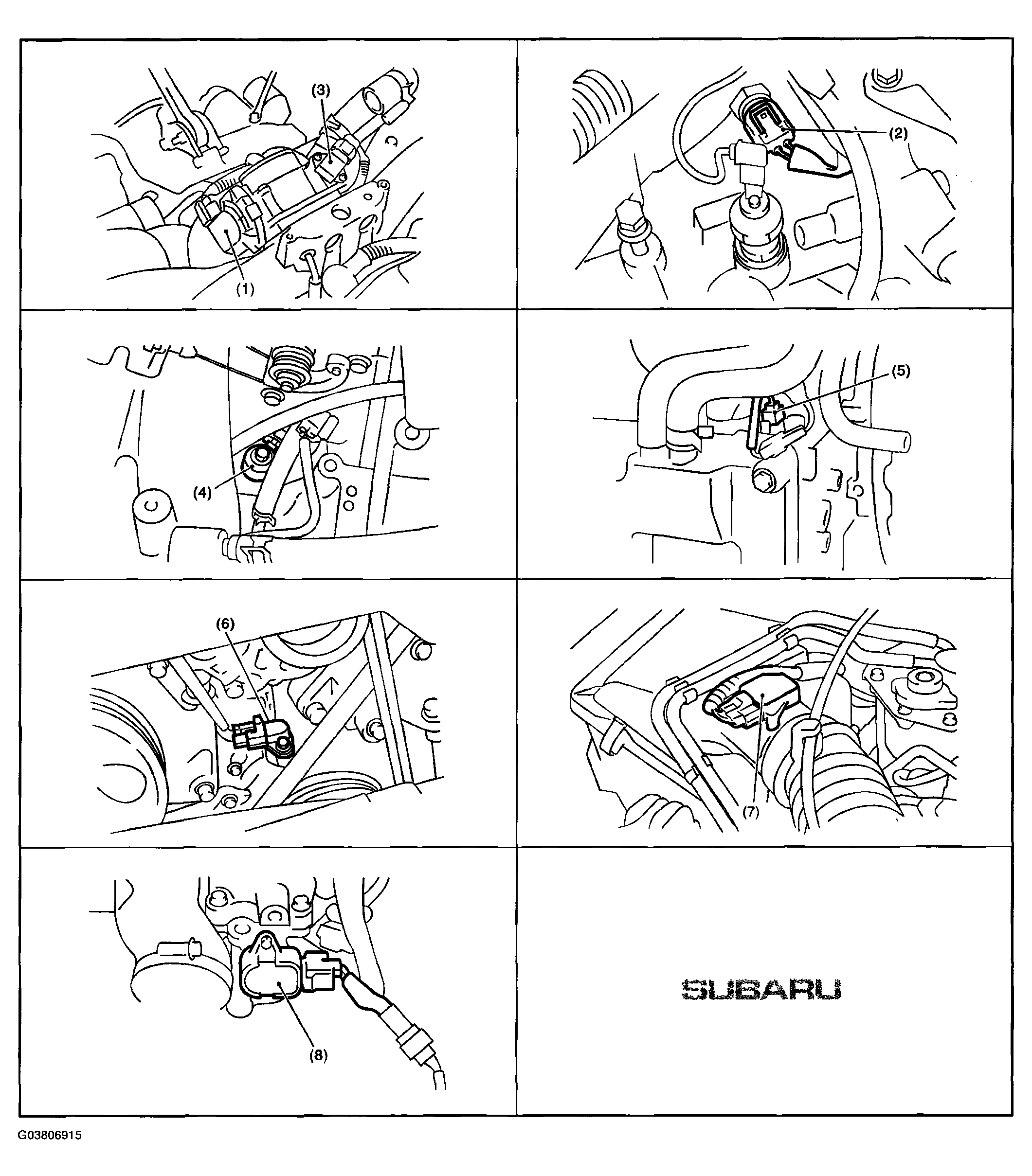

Fig 4: Identifying Electrical Components Location - Sensor (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

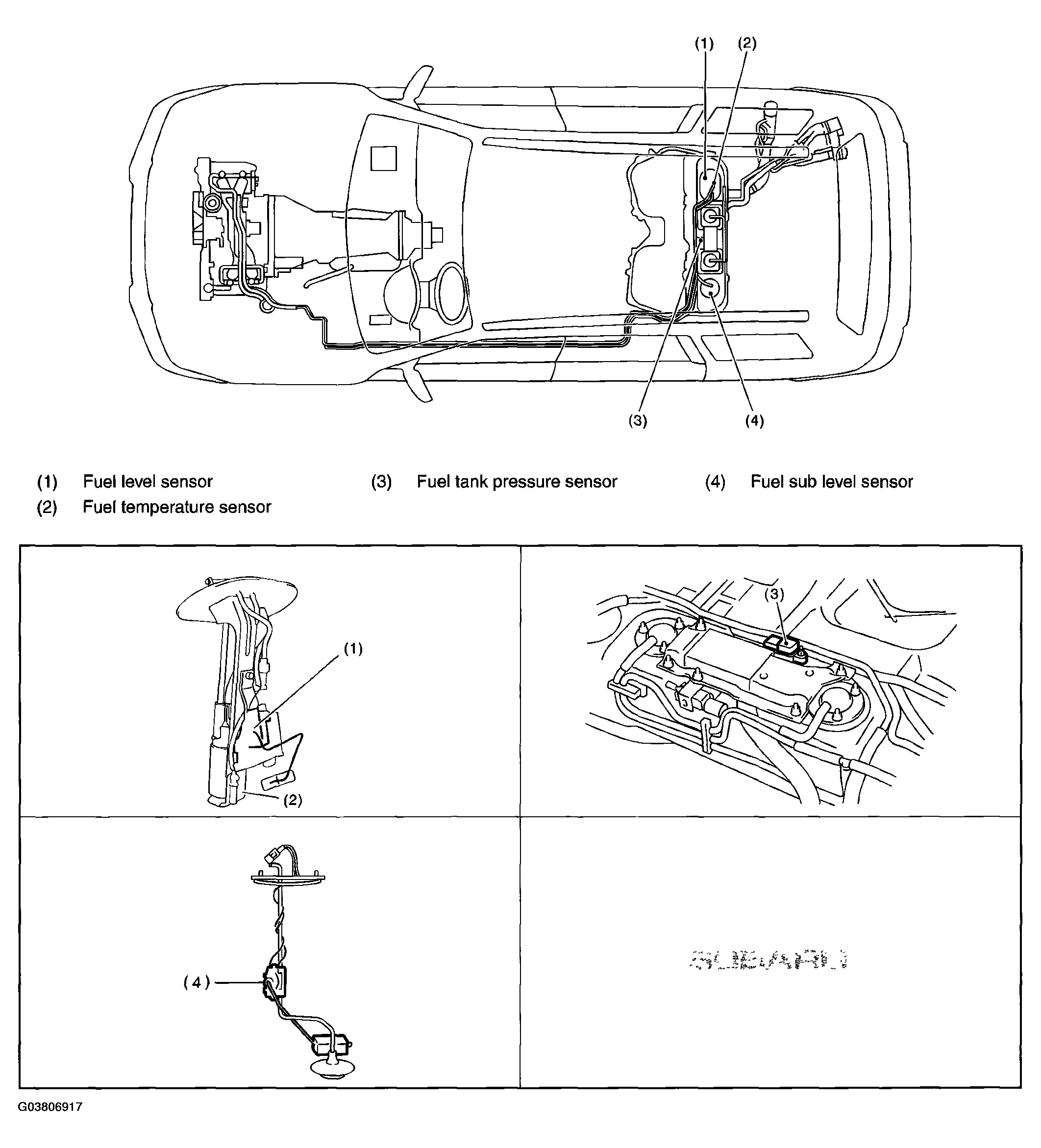

Fig 5: Identifying Electrical Components Location - Sensor (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

• Solenoid valve, actuator, emission control system parts and ignition system parts

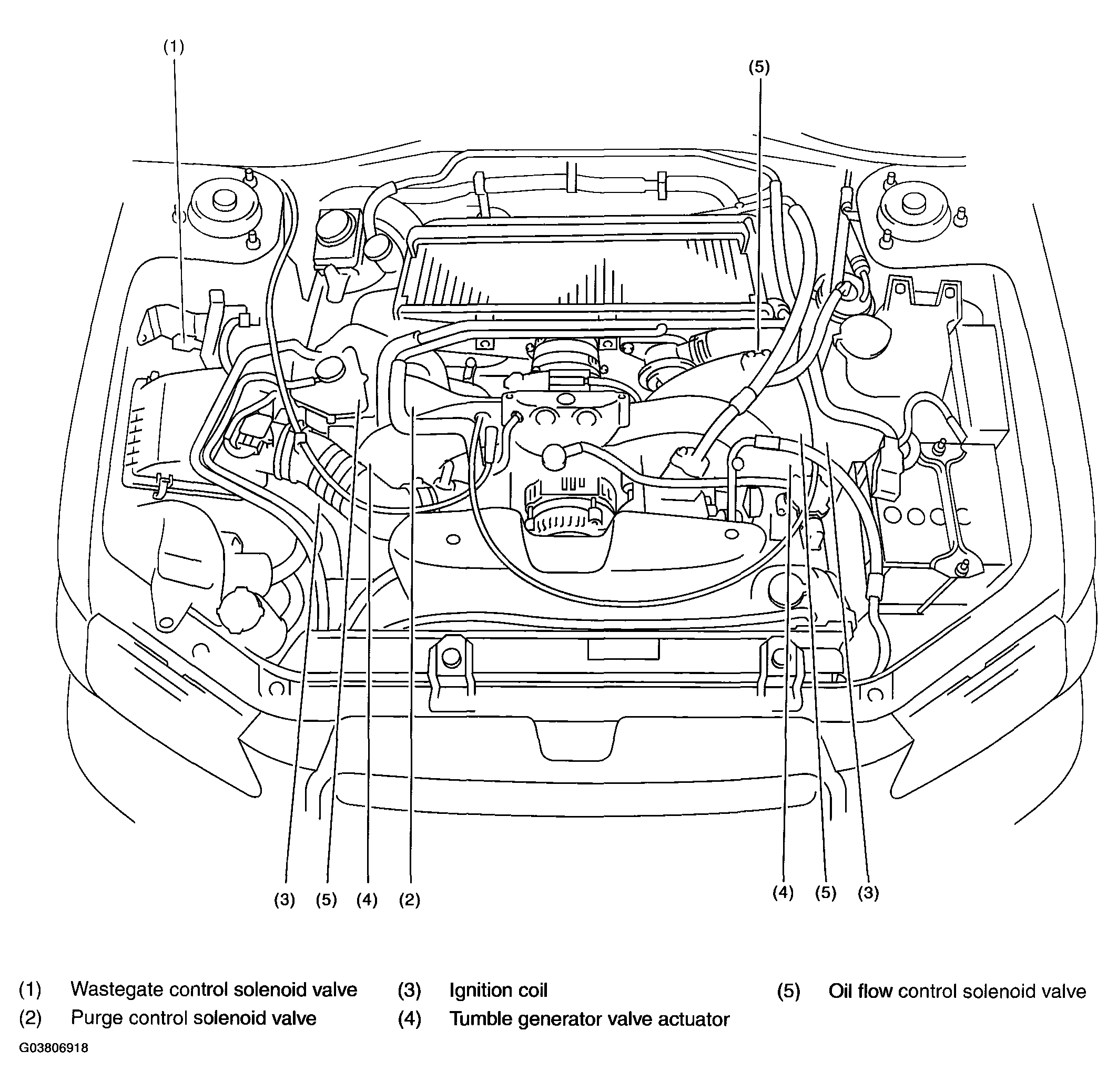

  Fig 6: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (1 Of 4)

  Courtesy of SUBARU OF AMERICA, INC.

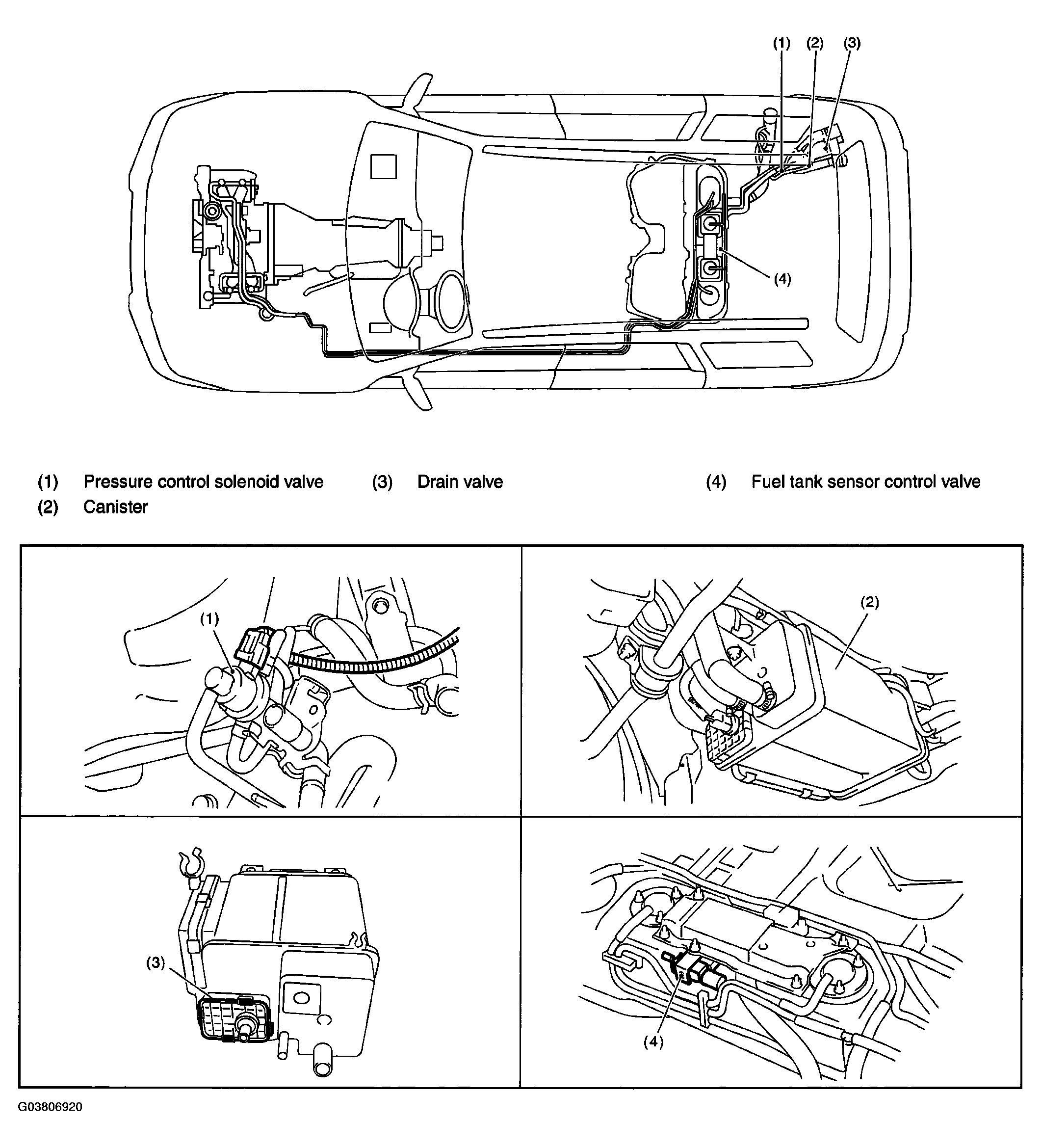

Fig 7: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

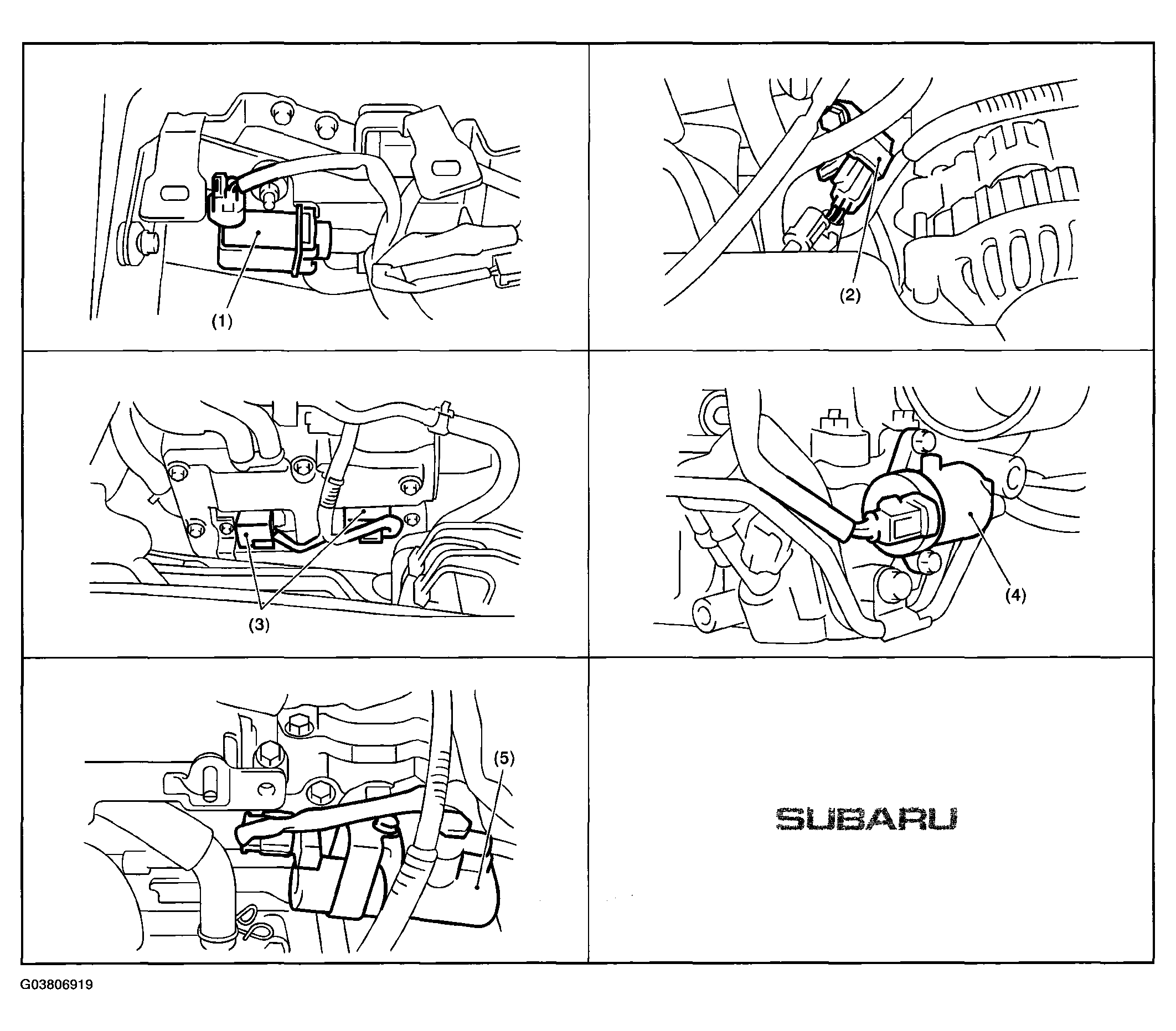

Fig 8: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

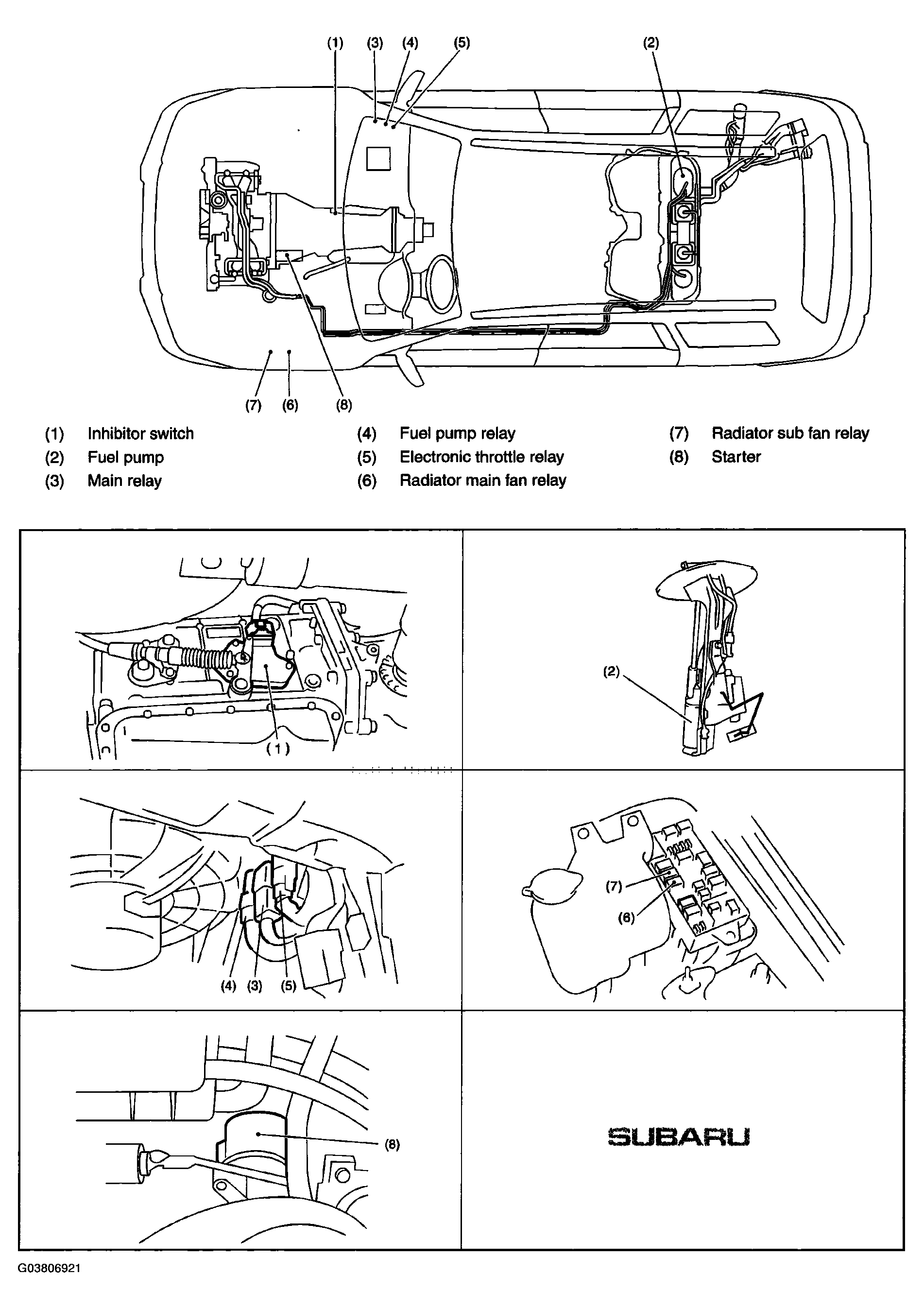

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Parts (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
