Home >> Subaru >> 2005 >> Baja F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Starter Motor

Starter Motor

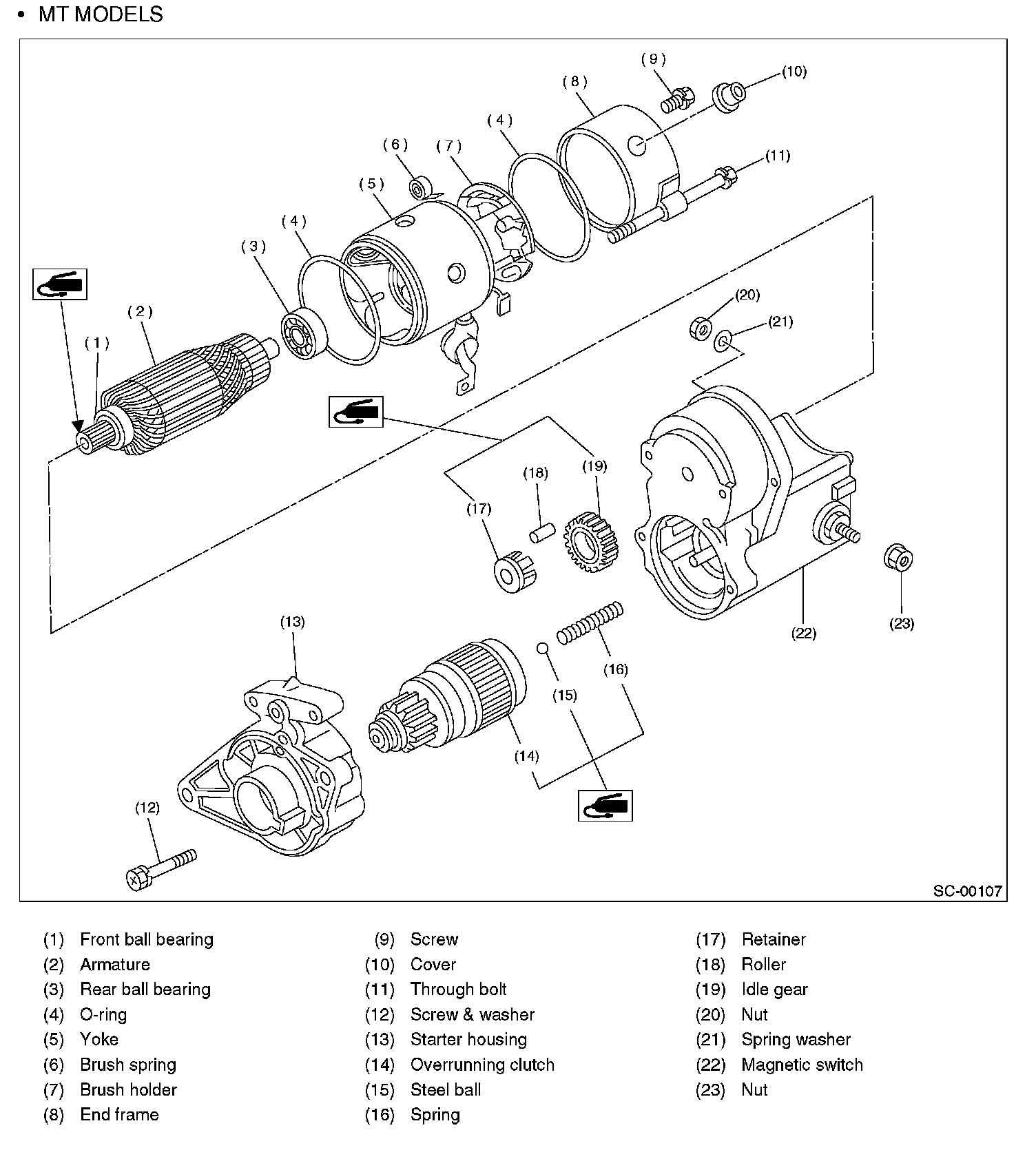

Starter (MT Models):

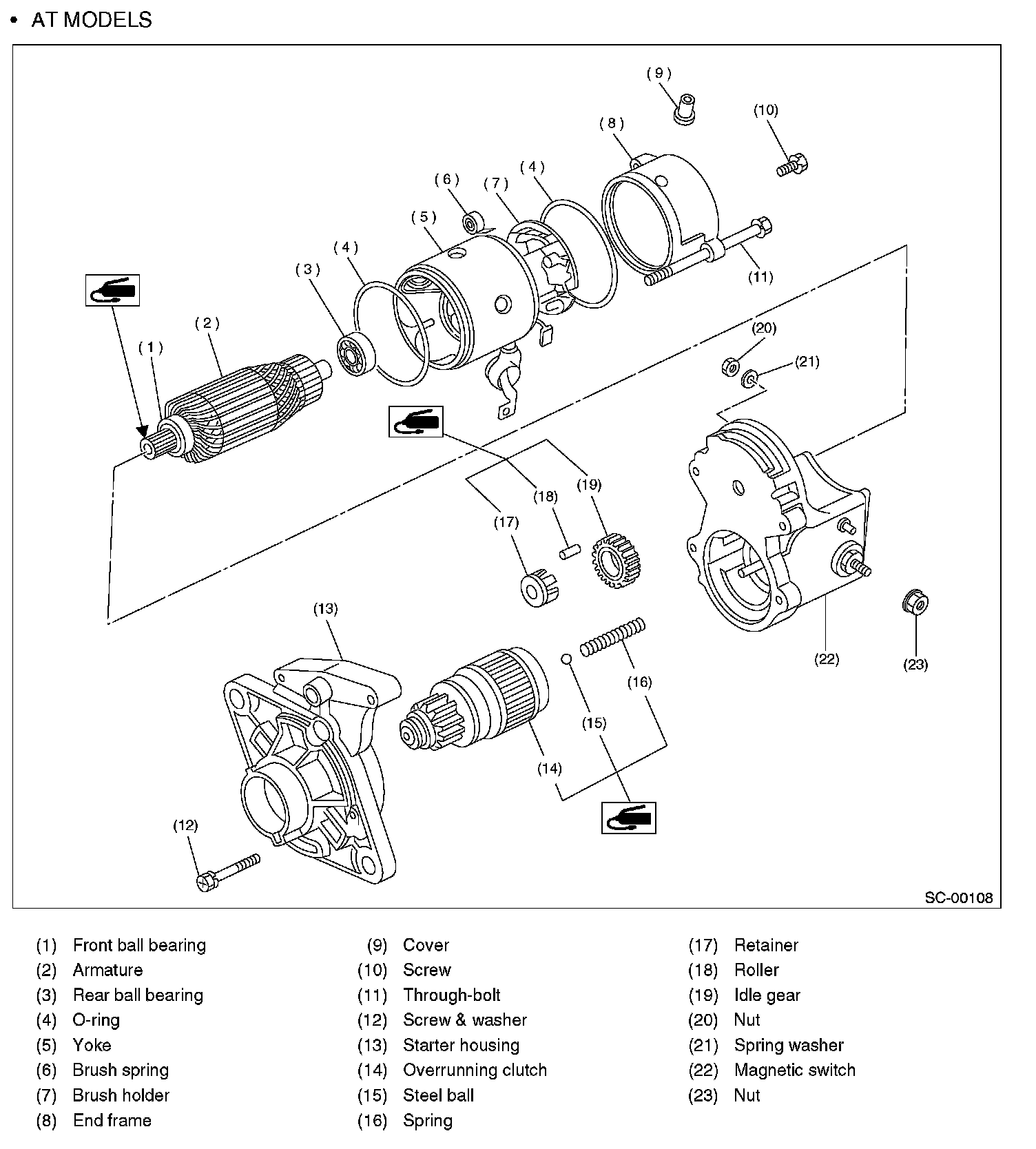

Starter (AT Models):
