System Diagram

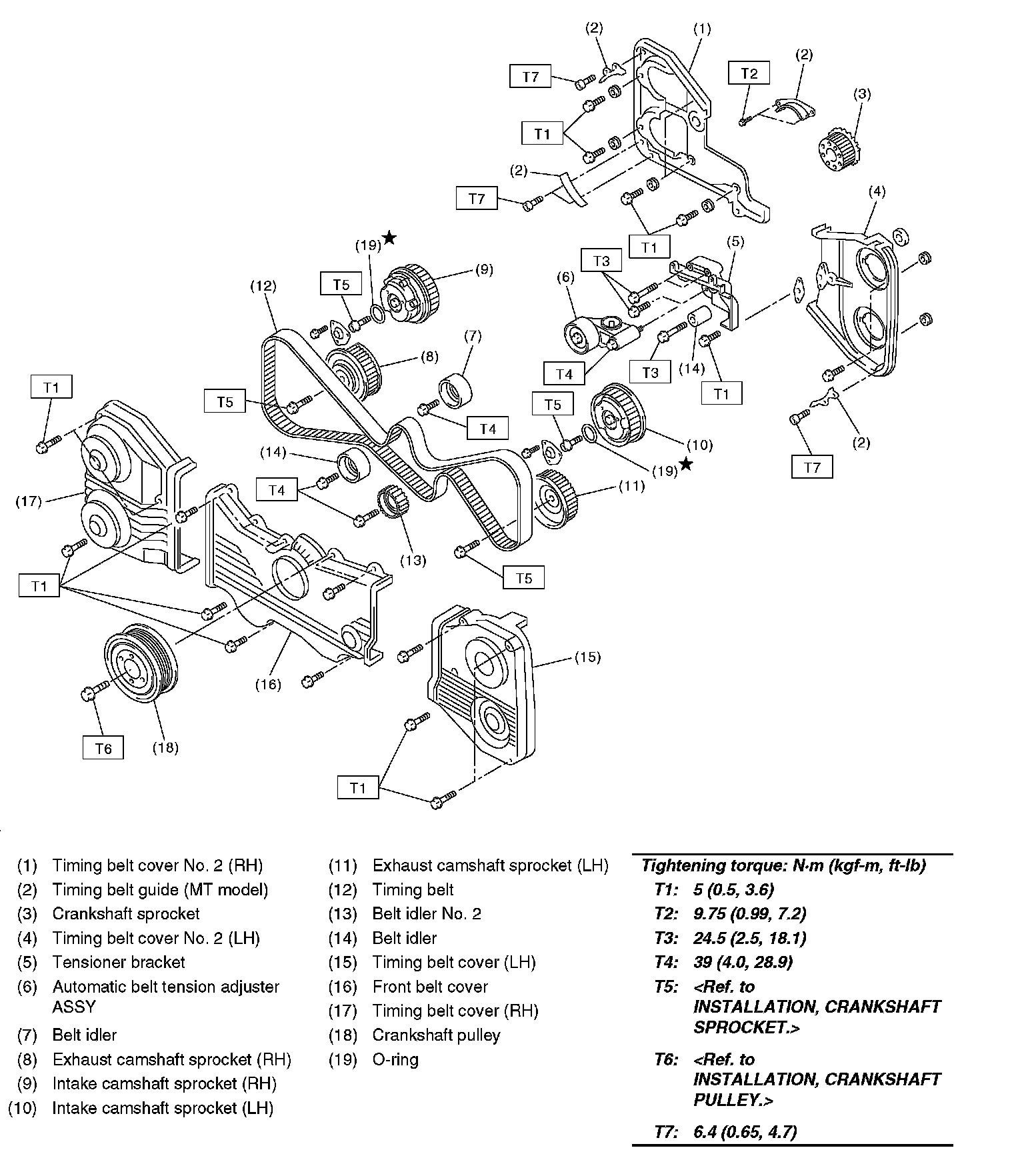

TIMING BELT








CYLINDER HEAD AND CAMSHAFT

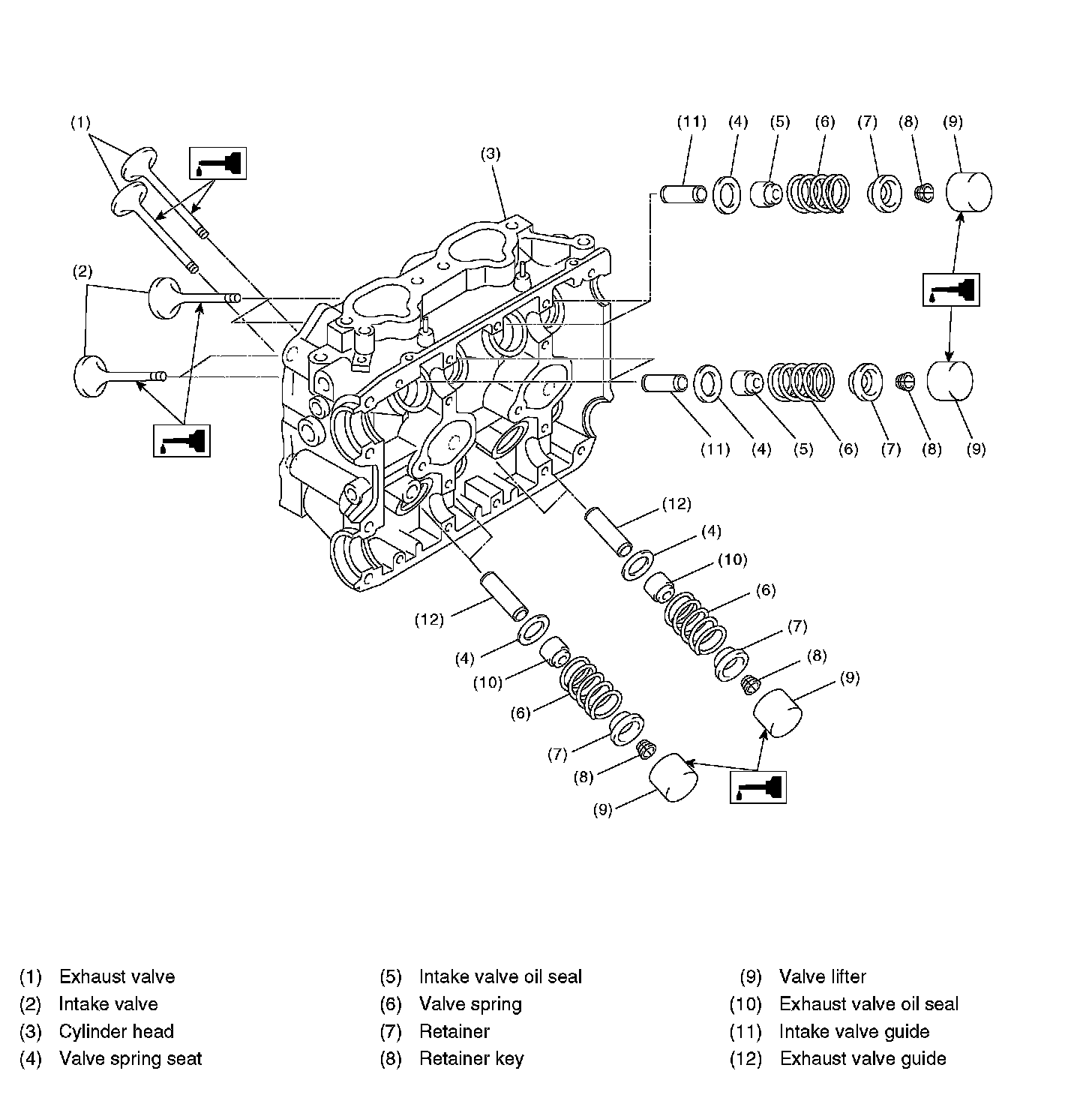

CYLINDER HEAD AND VALVE ASSEMBLY

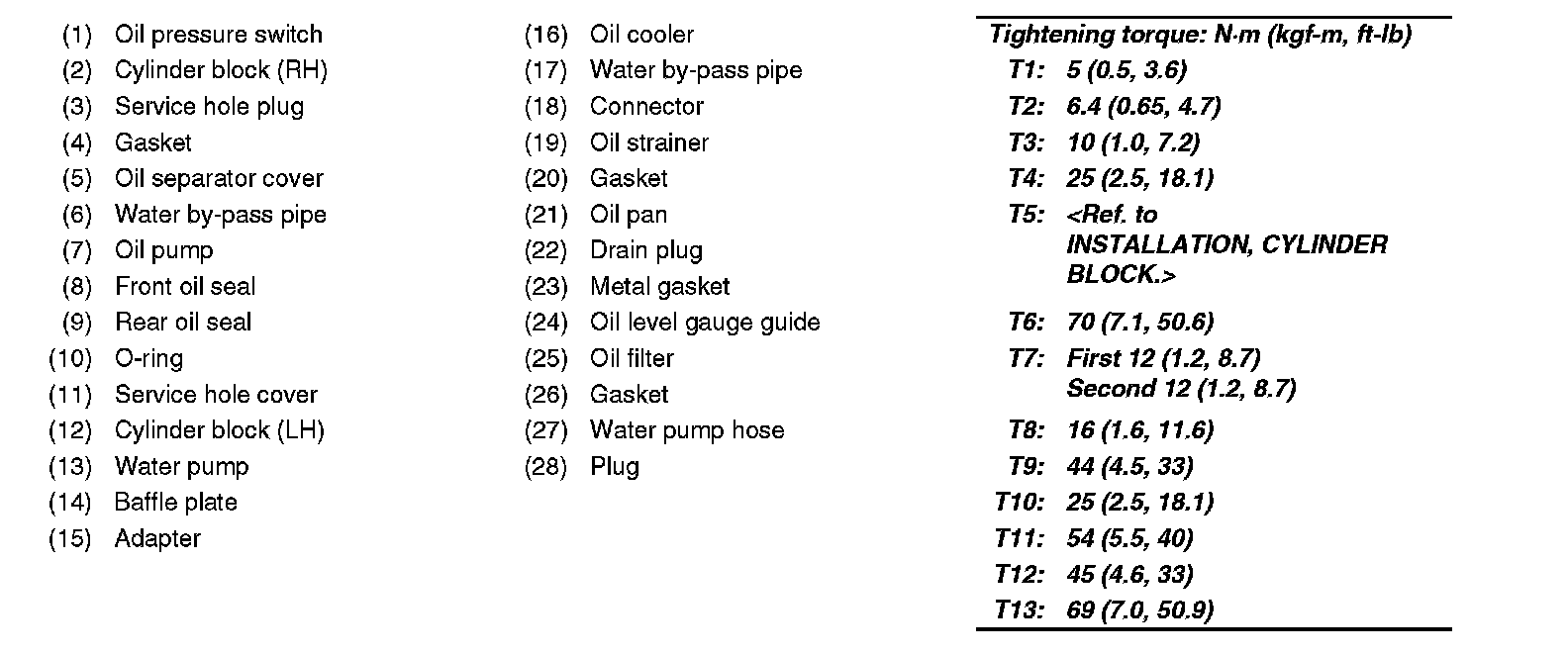

CYLINDER BLOCK





CRANKSHAFT AND PISTON

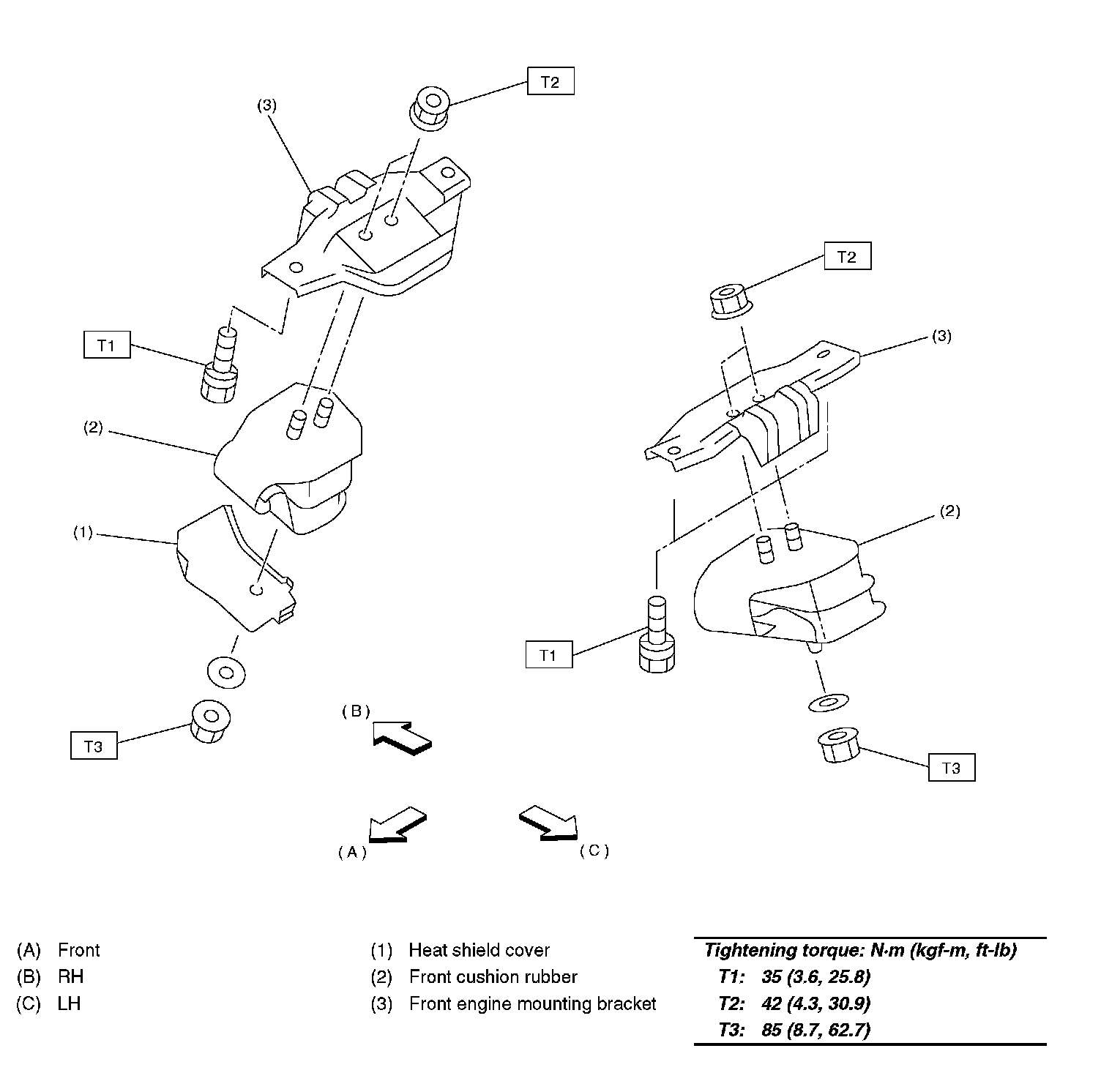

ENGINE MOUNTING
