MPT Model

WARNING: This page is about a different variant/trim than selected.
  1. Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
    NOTE: Be careful not to damage the oil seal in the extension.

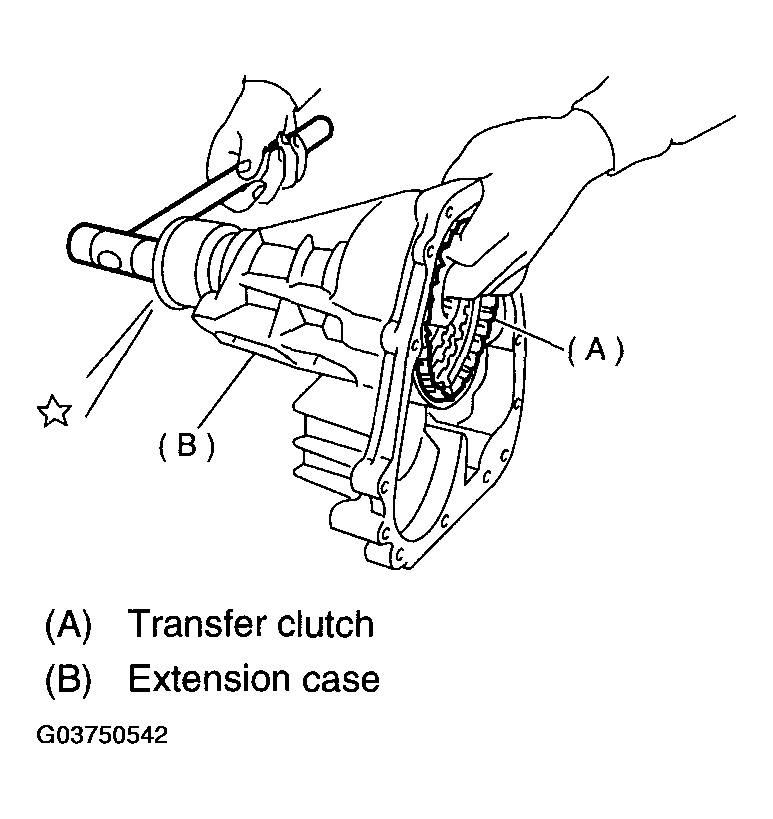

    Fig 1: Removing Transfer Clutch
    G03750542Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the transmission clutch pipe without bending pipe.

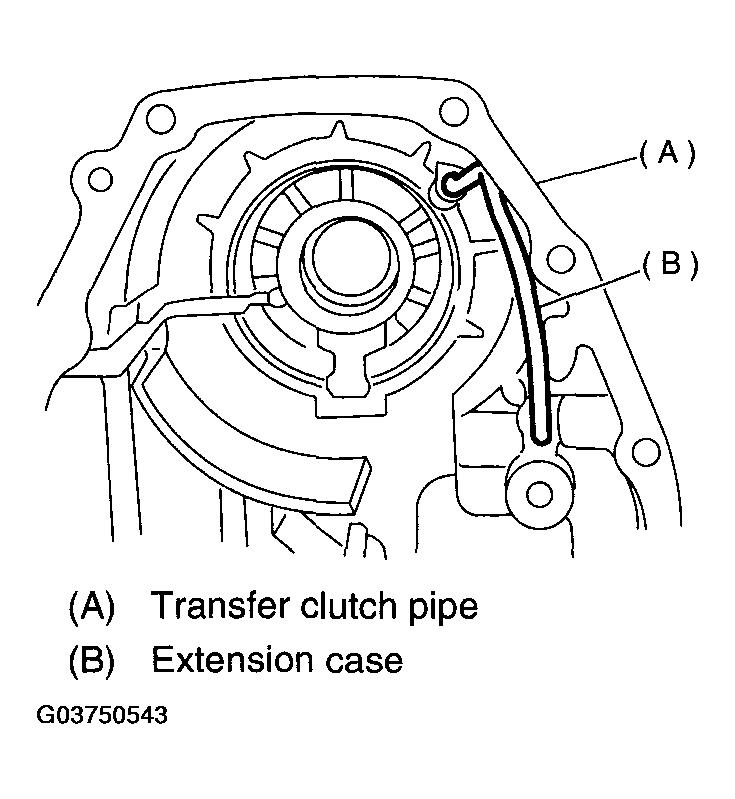

    Fig 2: Removing Transmission Clutch Pipe Without Bending Pipe
    G03750543Courtesy of SUBARU OF AMERICA, INC.
