Home >> Subaru >> 2004 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Throttle Position Sensor/Switch >> Locations

Throttle Position Sensor/Switch: Locations

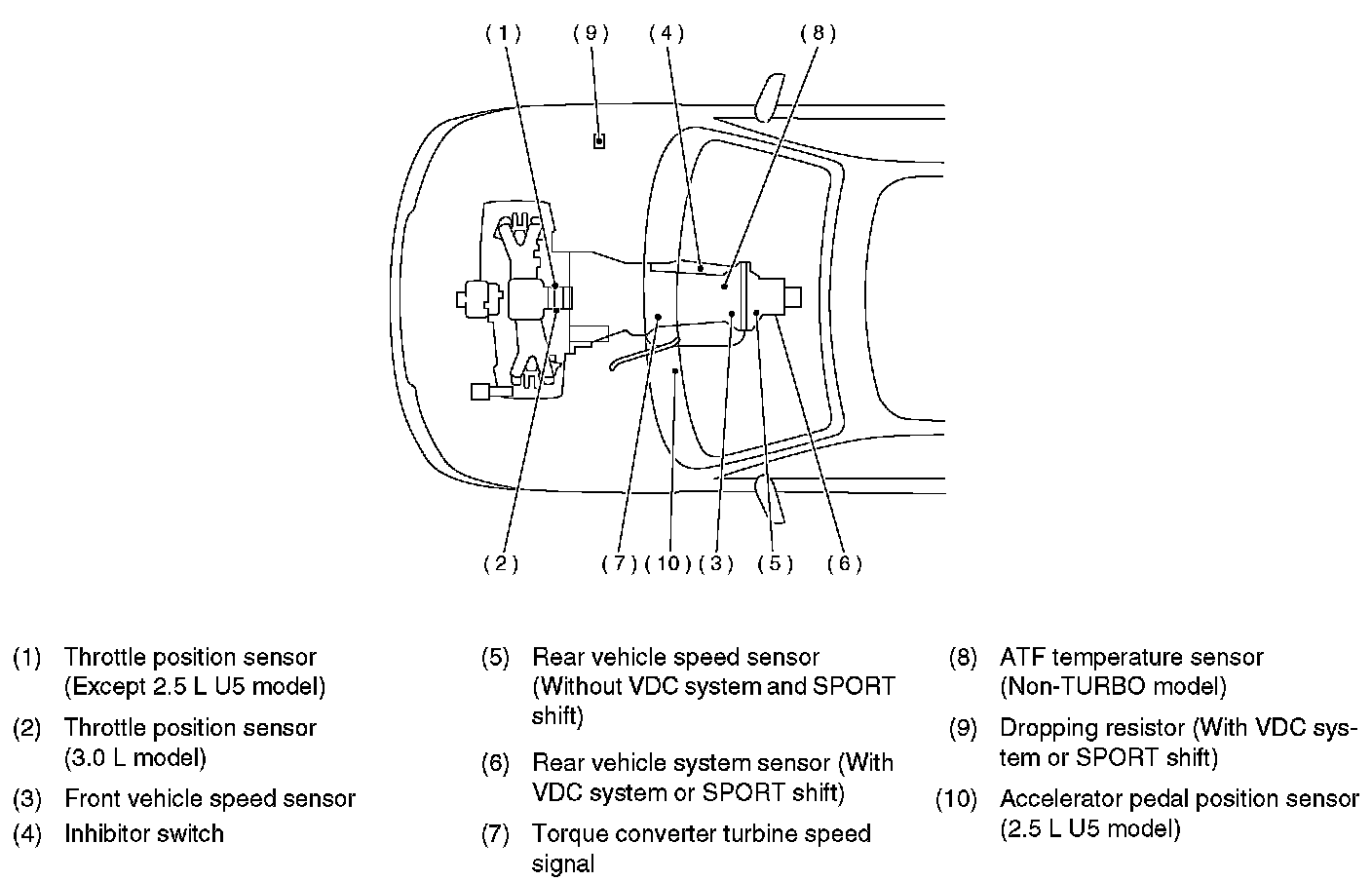

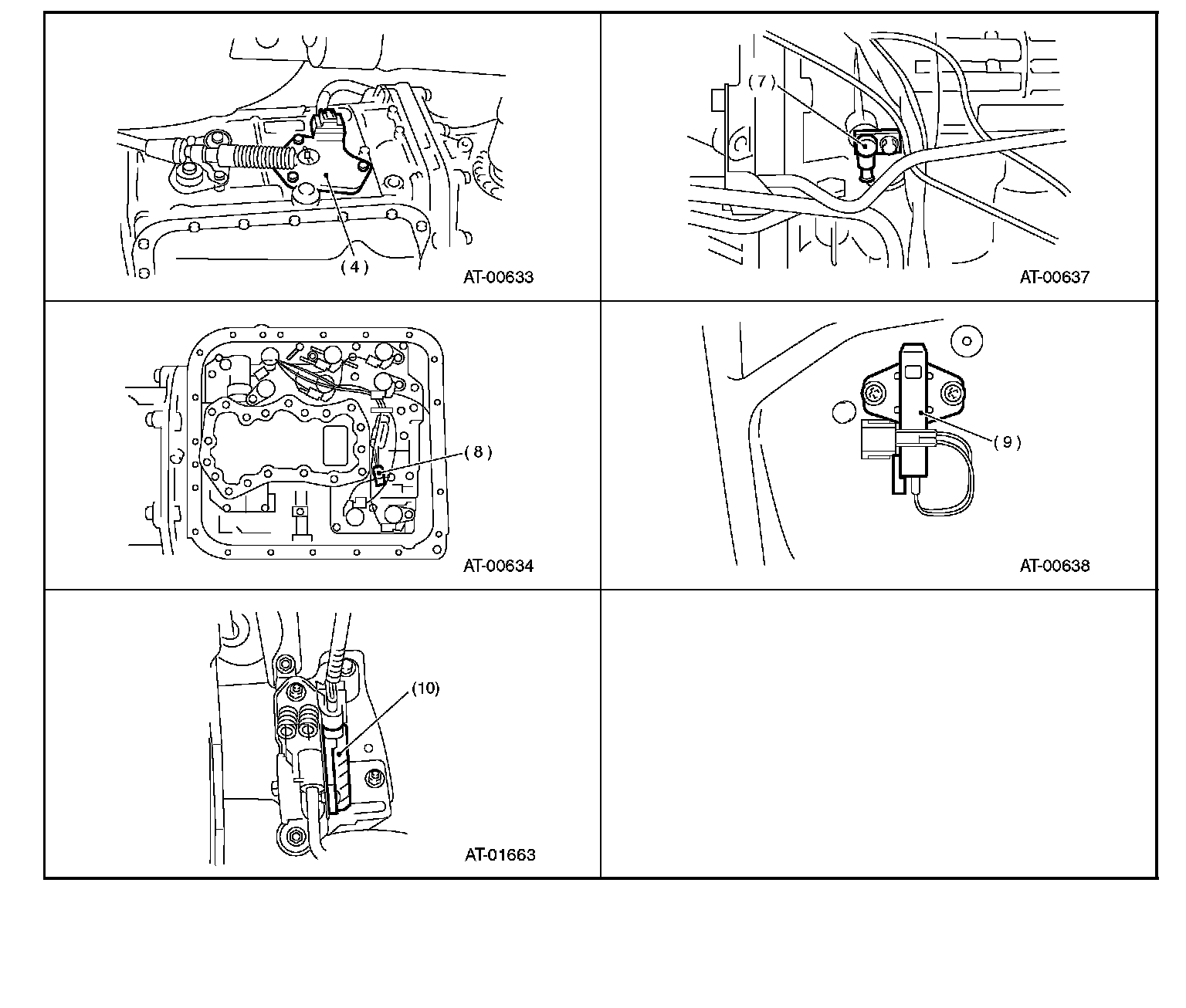

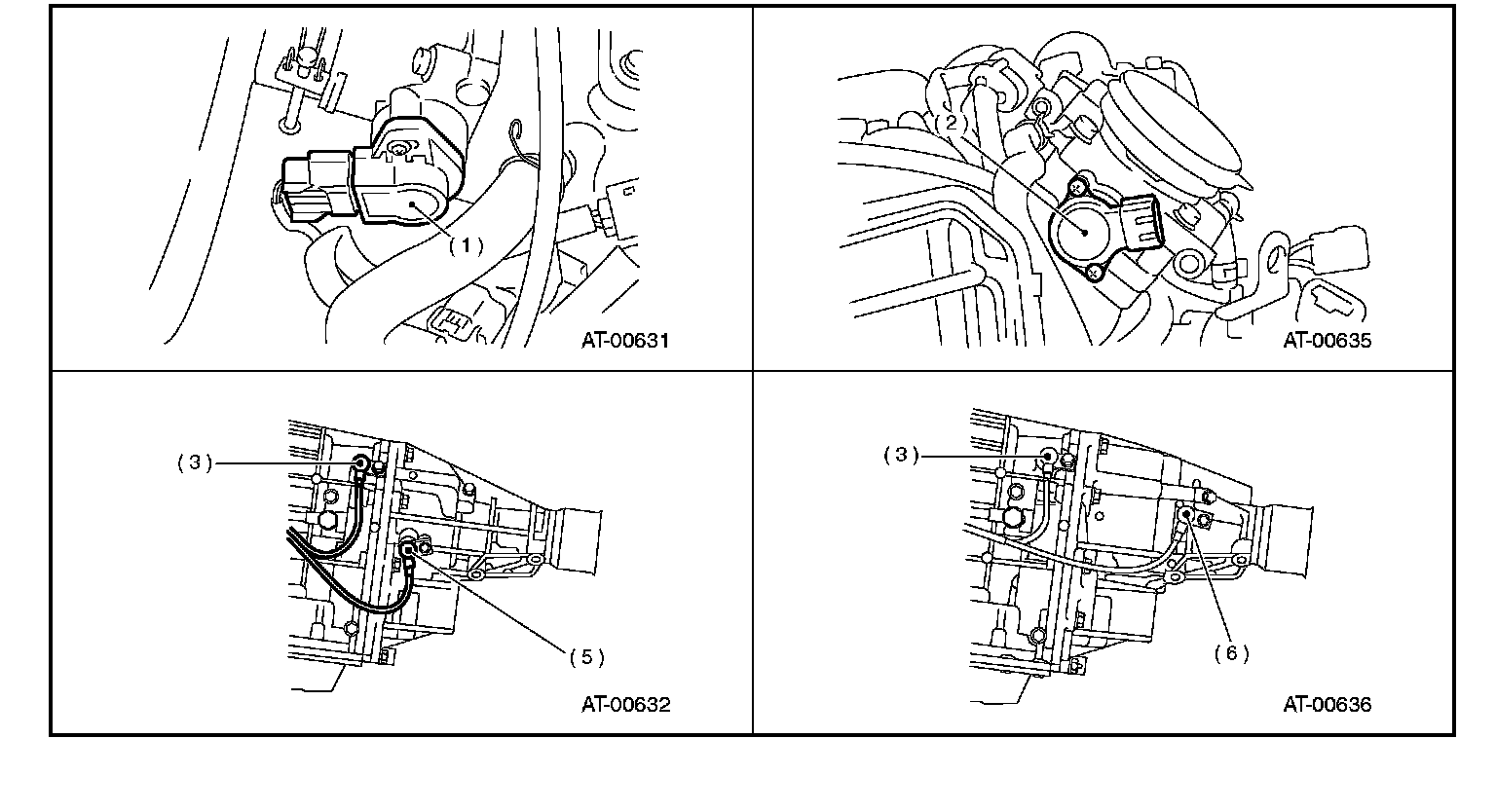

Electrical Components Location - Sensor:
