Home >> Subaru >> 2004 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> B3-B328

B3-B328

BULKHEAD WIRING HARNESS (IN ENGINE ROOM)

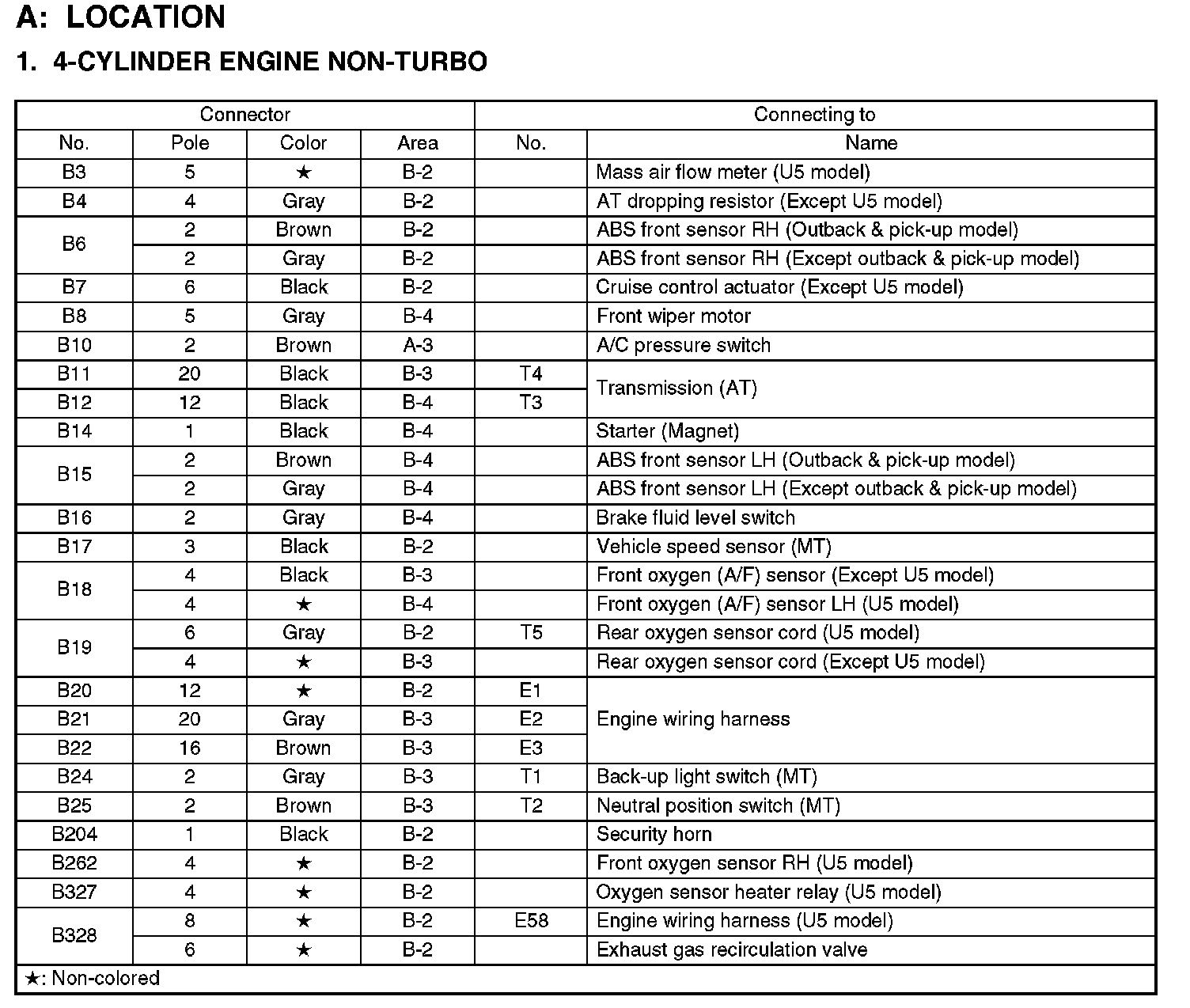

B3-B328:

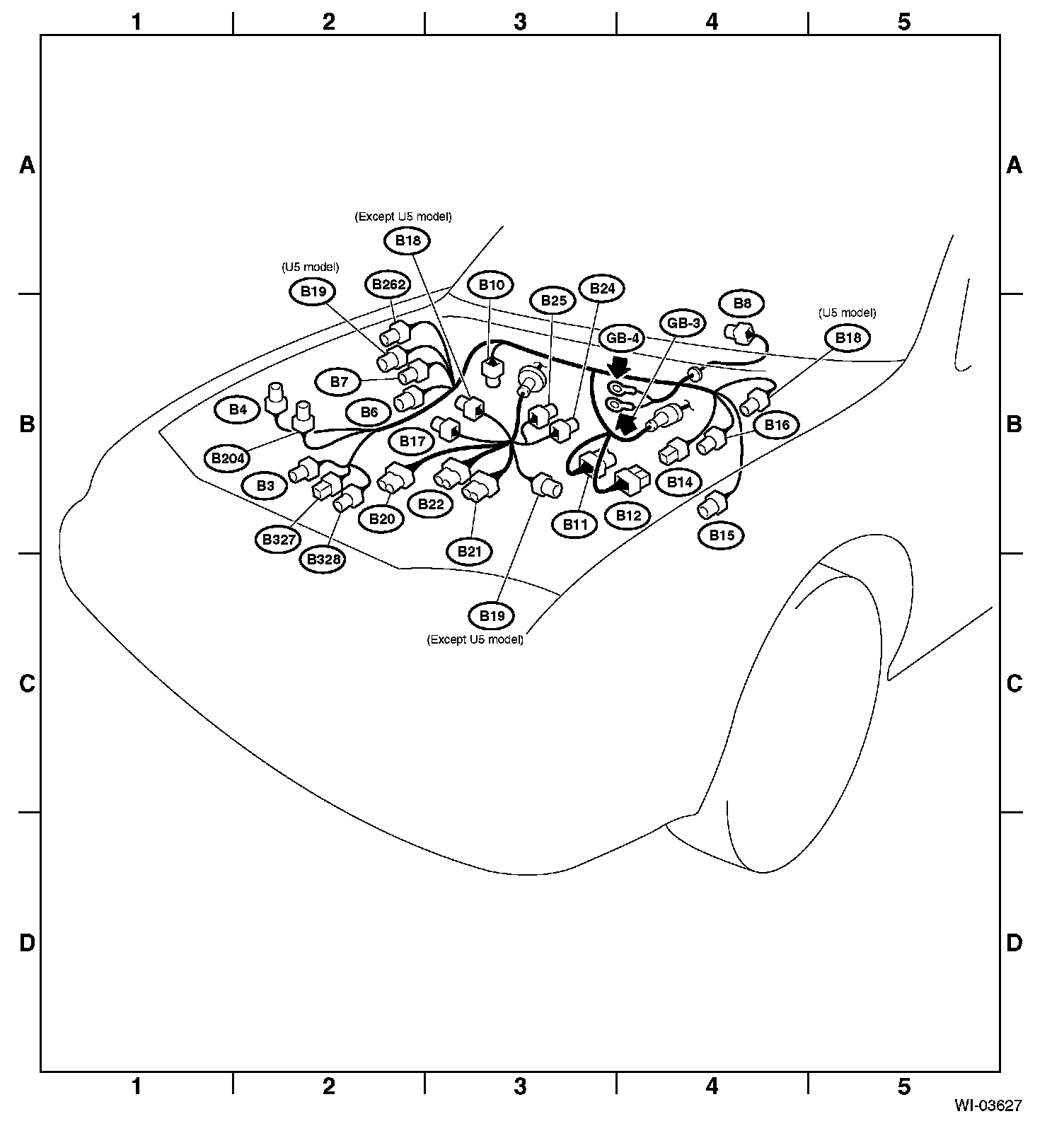

Area View:
