Automatic Transmission - Mechanism & Function
>>
Electro-hydraulic Control System
>>
Output Signals
>>
Non-Turbo Models
Non-Turbo Models

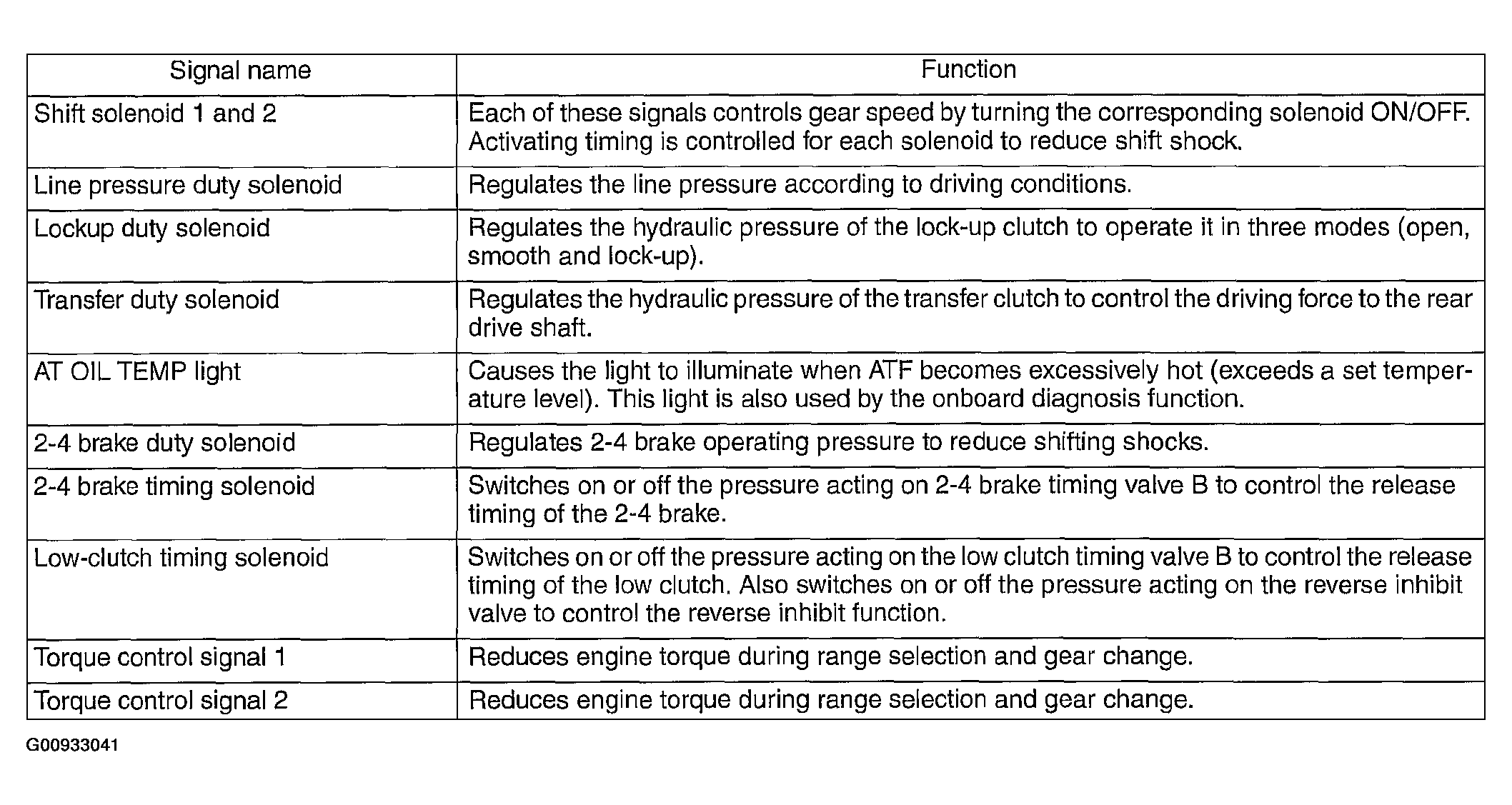

Fig 1: Output Signal Name & Function Chart - Non-Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
