General Diagnostic Table: Inspection: Engine

NOTE: Malfunction of parts other than those listed is also possible. Refer to ENGINE TROUBLE IN GENERAL.

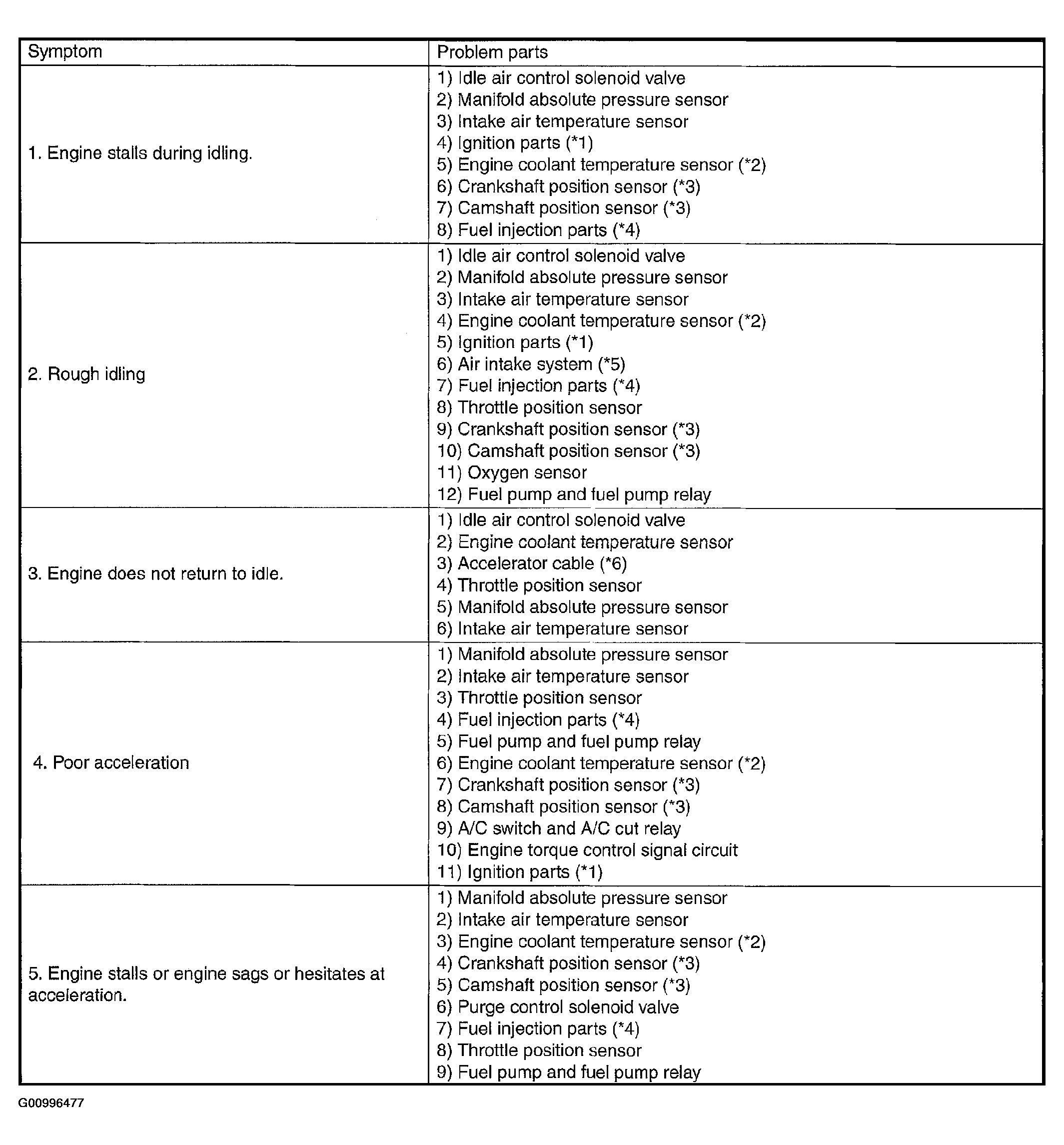

Fig 1: Inspecting Engine General Diagnostic Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Inspecting Engine General Diagnostic Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
