Pinout Values and Diagnostic Parameters

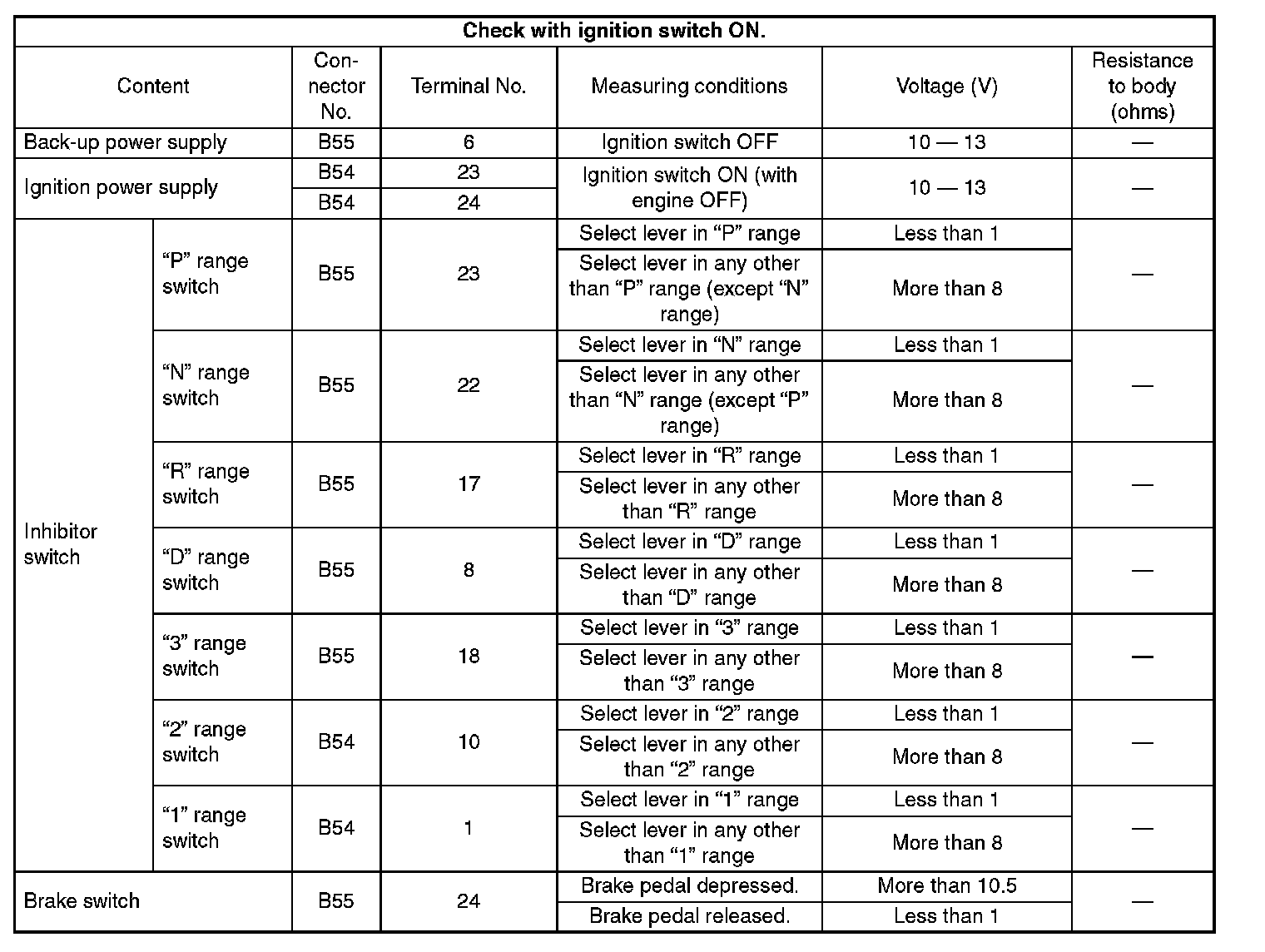

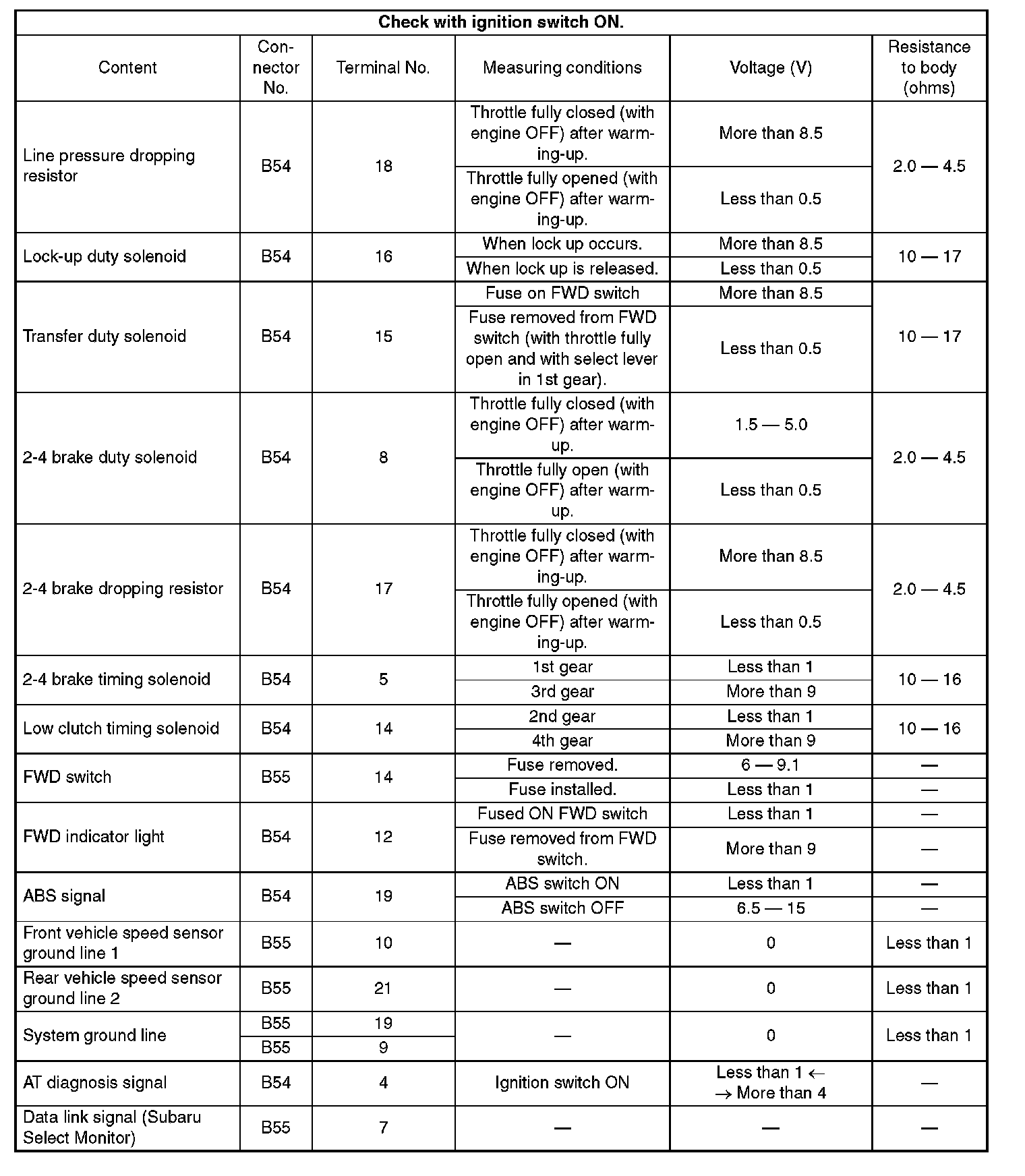

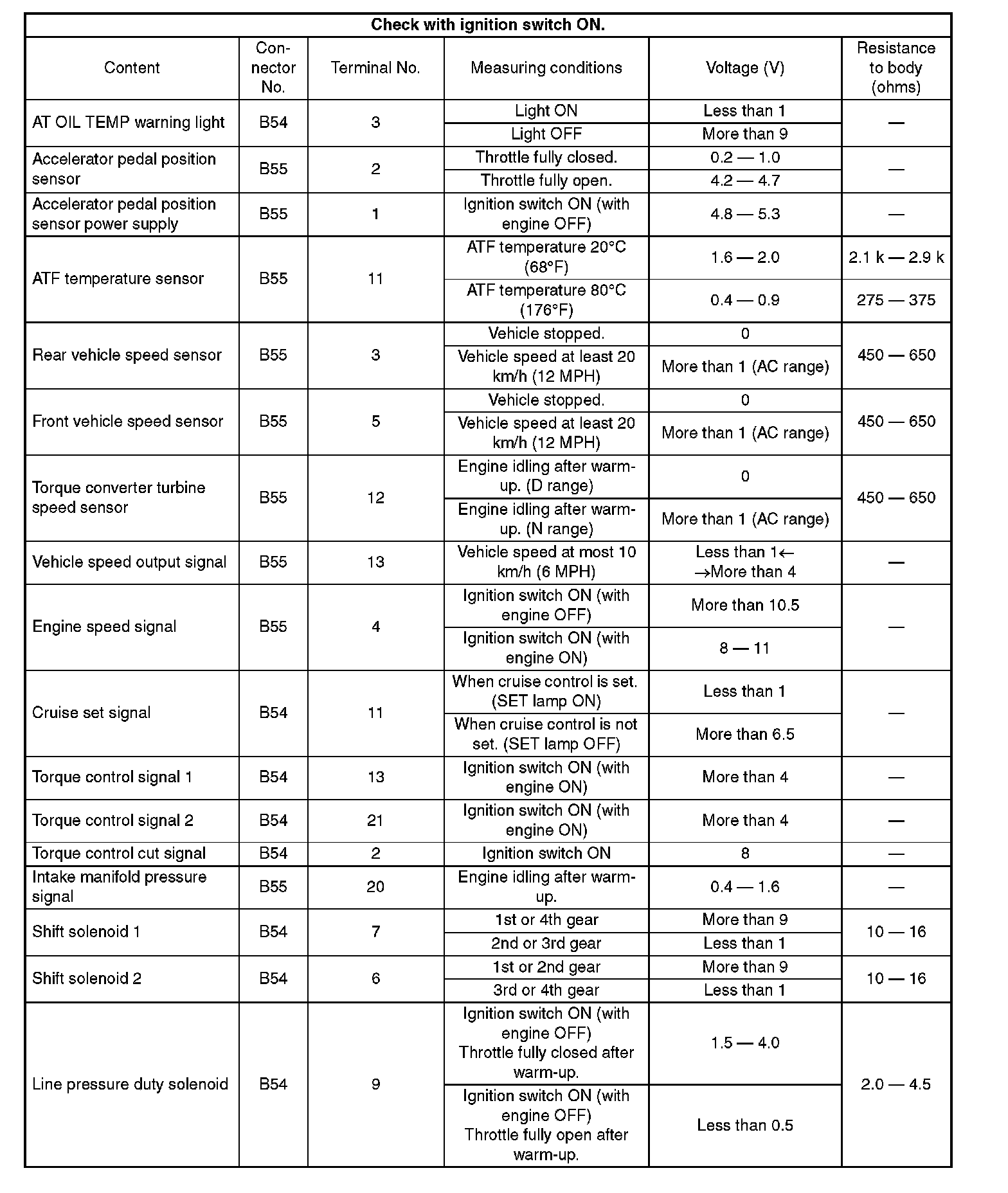

Transmission Control Module (TCM) I/O Signal














ELECTRICAL SPECIFICATION
