Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

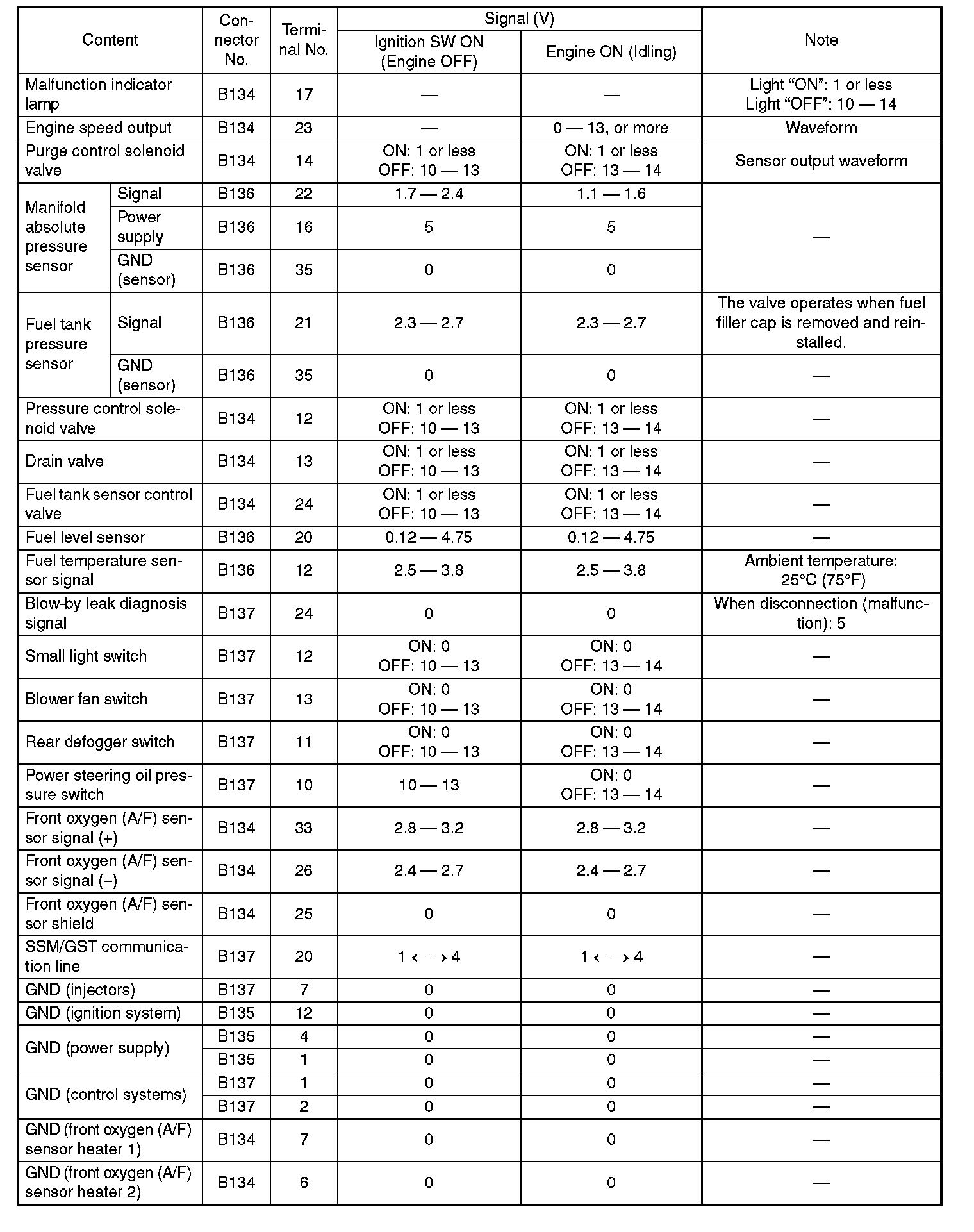

Engine Control Module (ECM) I/O Signal Part 1:
Engine Control Module (ECM) I/O Signal Part 2:
Engine Control Module (ECM) I/O Signal Part 4:
Engine Control Module (ECM) I/O Signal Part 5:
