Main Relay: Removal

  1. Disconnect the ground cable from battery.

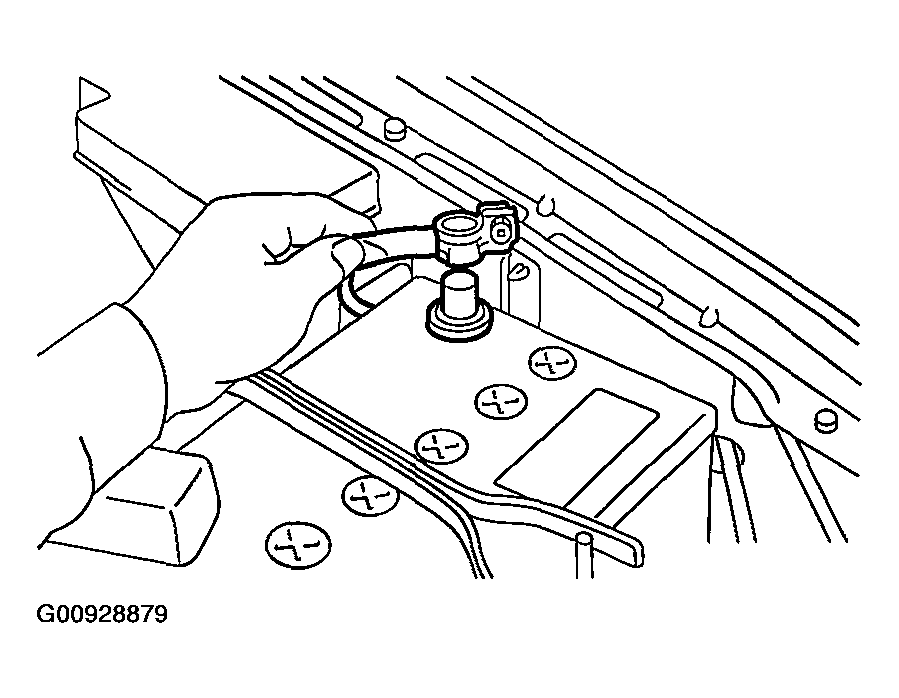

    Fig 1: Disconnecting Ground Cable From Battery
    G00928879Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the driver's side lower cover.
  3. Disconnect the connectors from the main relay.
  4. Remove the main relay from the bracket.

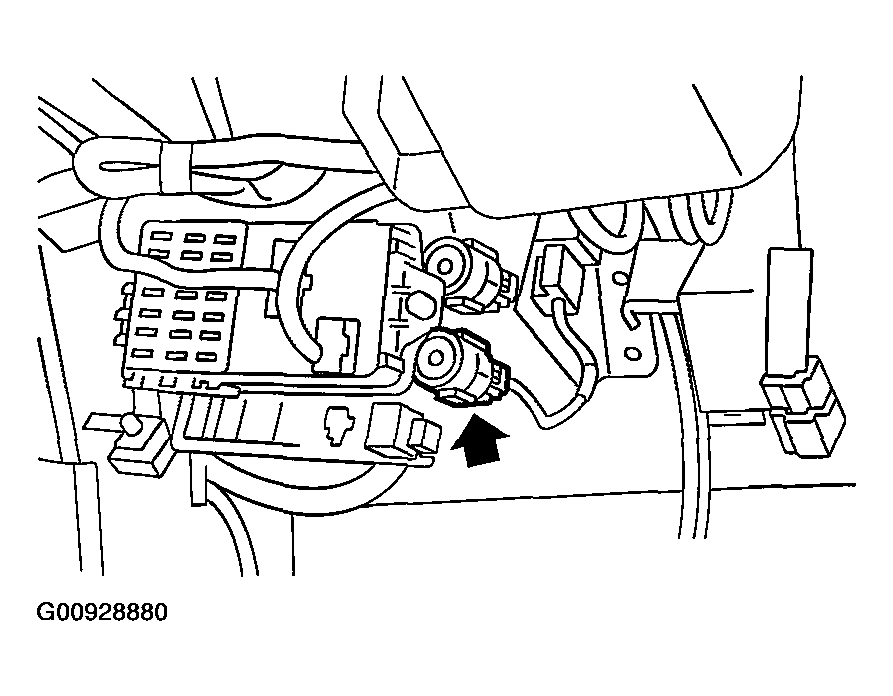

    Fig 2: Removing Main Relay From Bracket
    G00928880Courtesy of SUBARU OF AMERICA, INC.
