Power Assisted System (Power Steering)
>>
General Description
>>
Component
>>
Power Assisted System
Power Assisted System
Except TURBO model

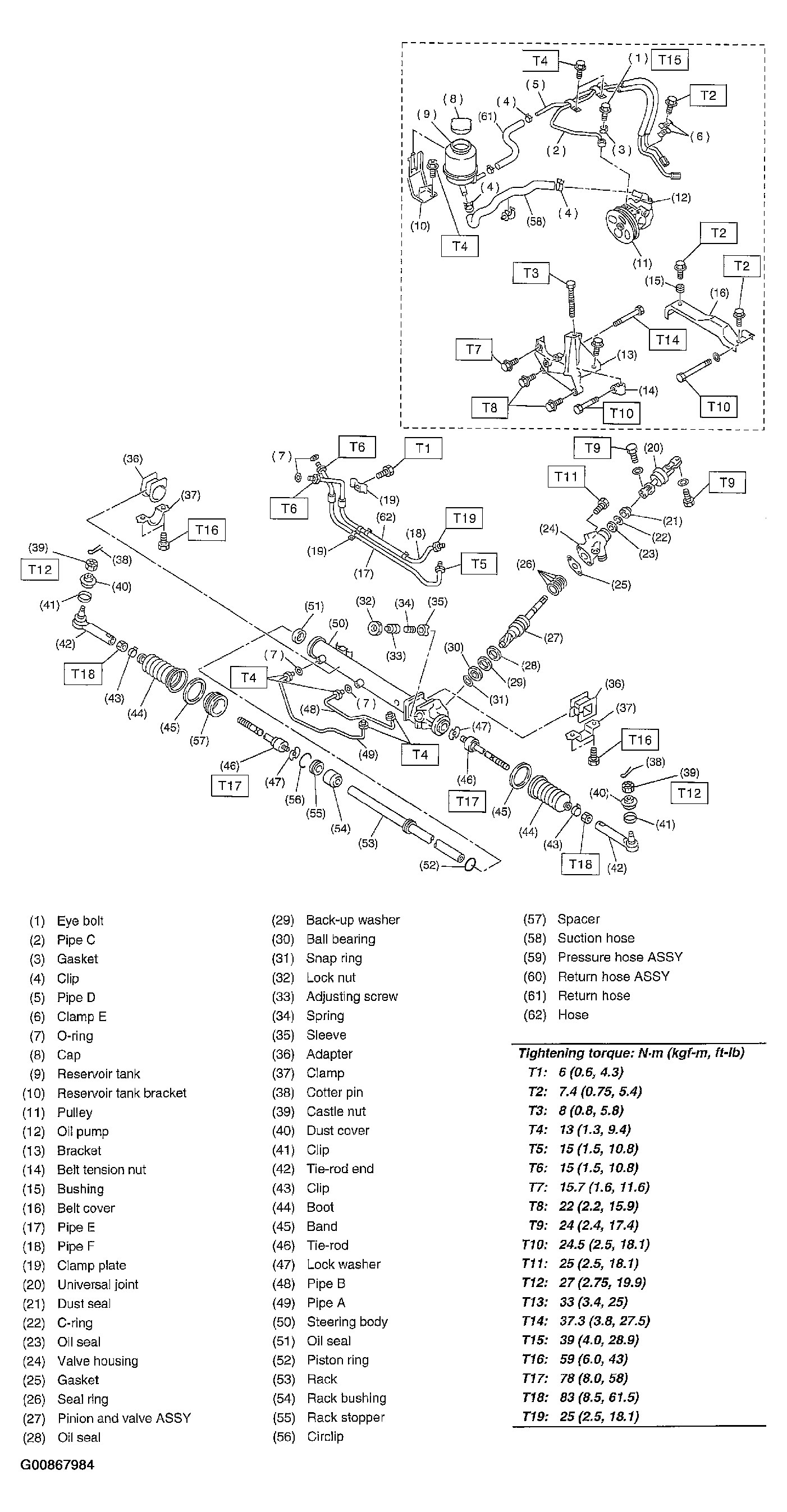

Fig 1: Exploded View Of Power Assisted System (Except TURBO Model)
Courtesy of SUBARU OF AMERICA, INC.
TURBO model

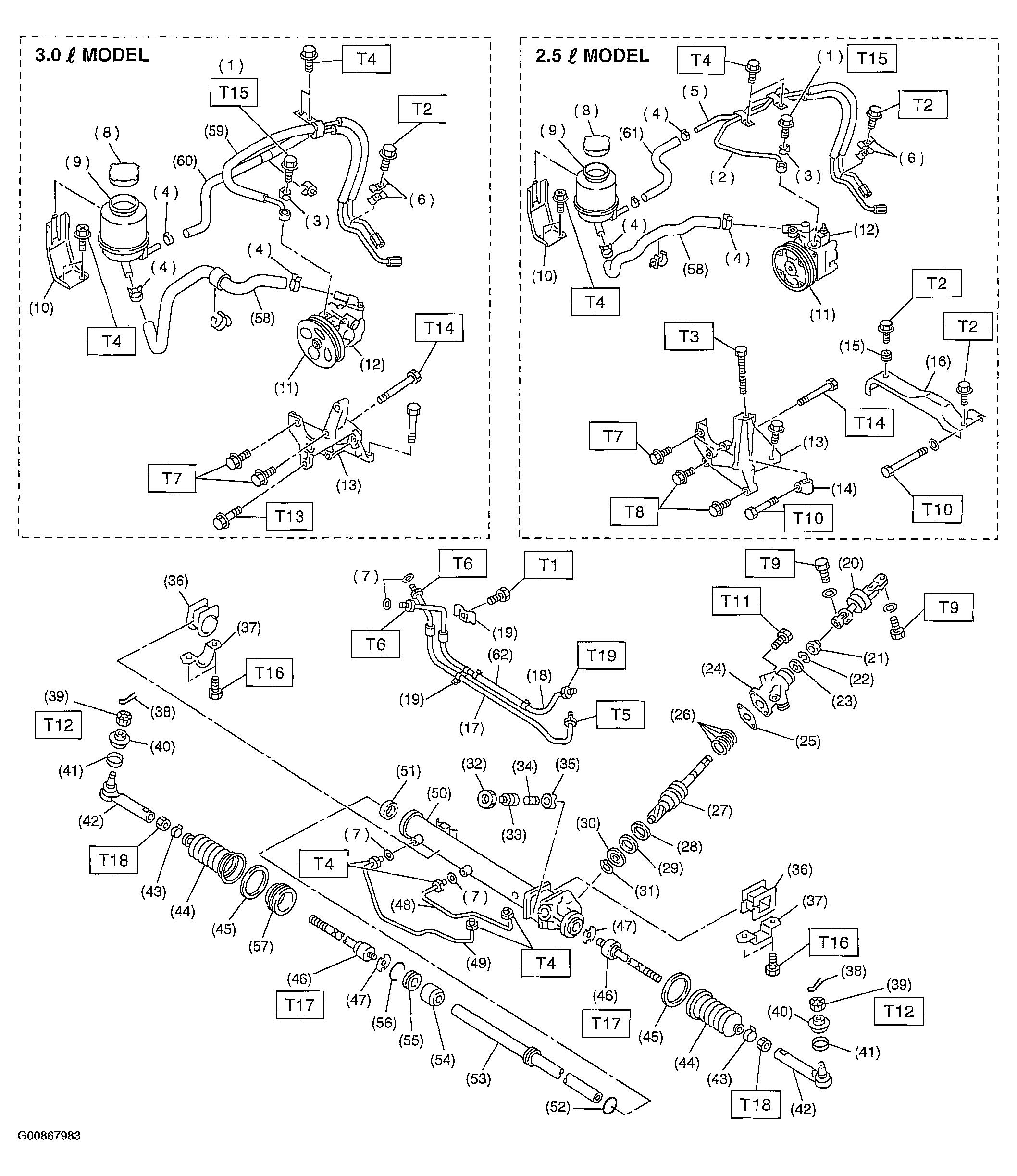

Fig 2: Exploded View Of Power Assisted System With Torque Specifications (TURBO Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
