Master Cylinder: Inspection

If any damage, deformation, wear, swelling, rust or other faults are found on the cylinder, piston, push rod, fluid reservoir, return spring, gasket, cylinder boot and hose replace the faulty part.

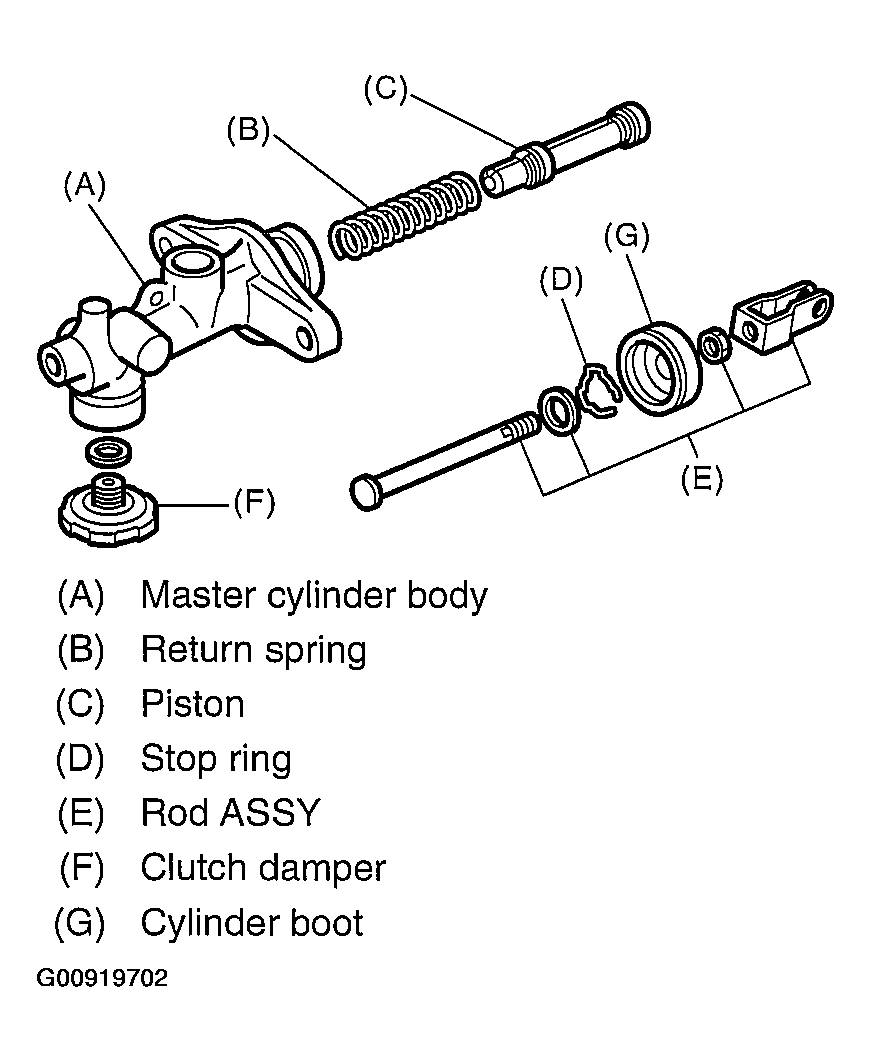

Fig 1: Inspecting Master Cylinder Components For Damage

Courtesy of SUBARU OF AMERICA, INC.
