Lateral Accelerometer: Testing and Inspection

Yaw Rate and Lateral G Sensor

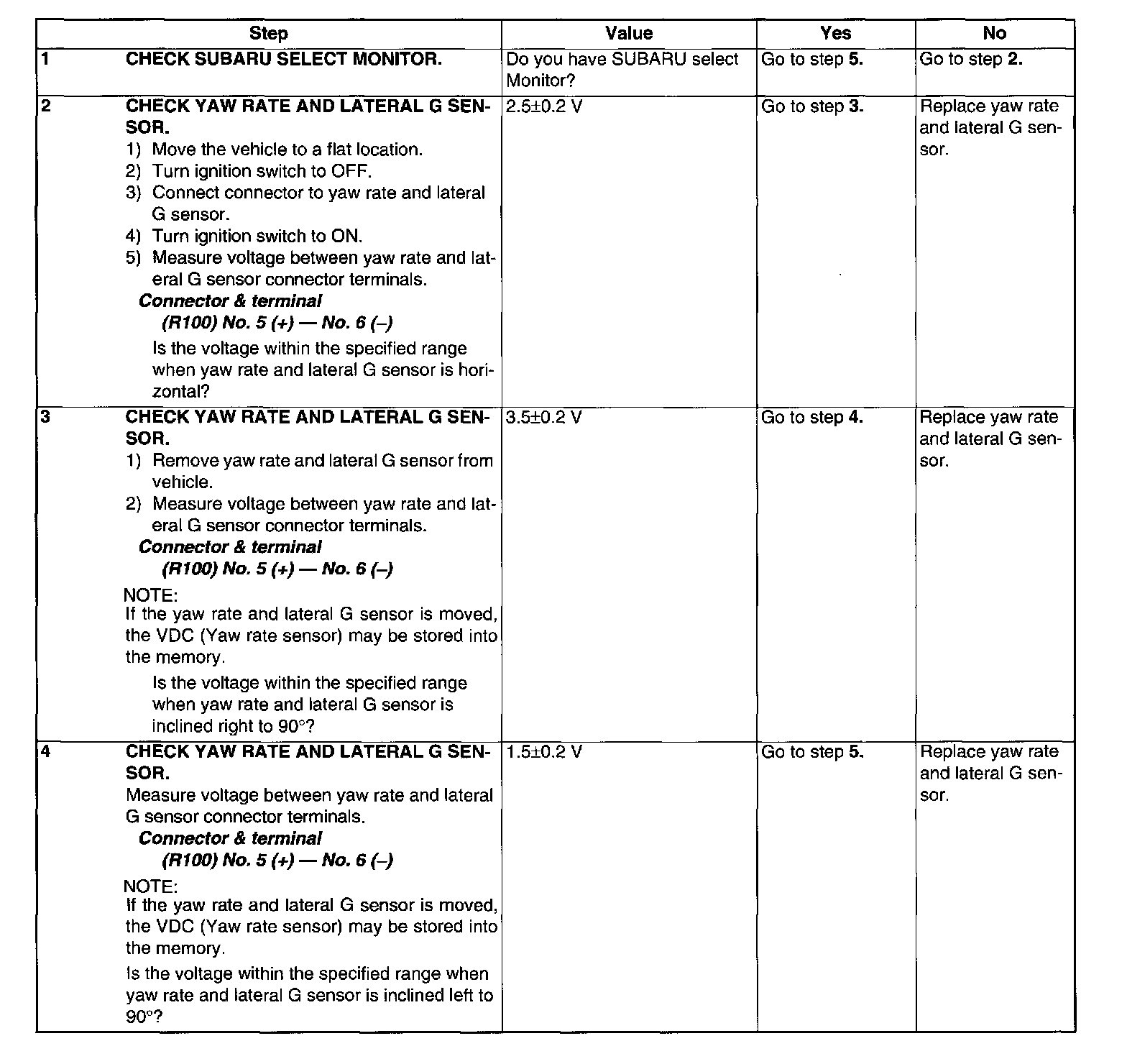

INSPECTION

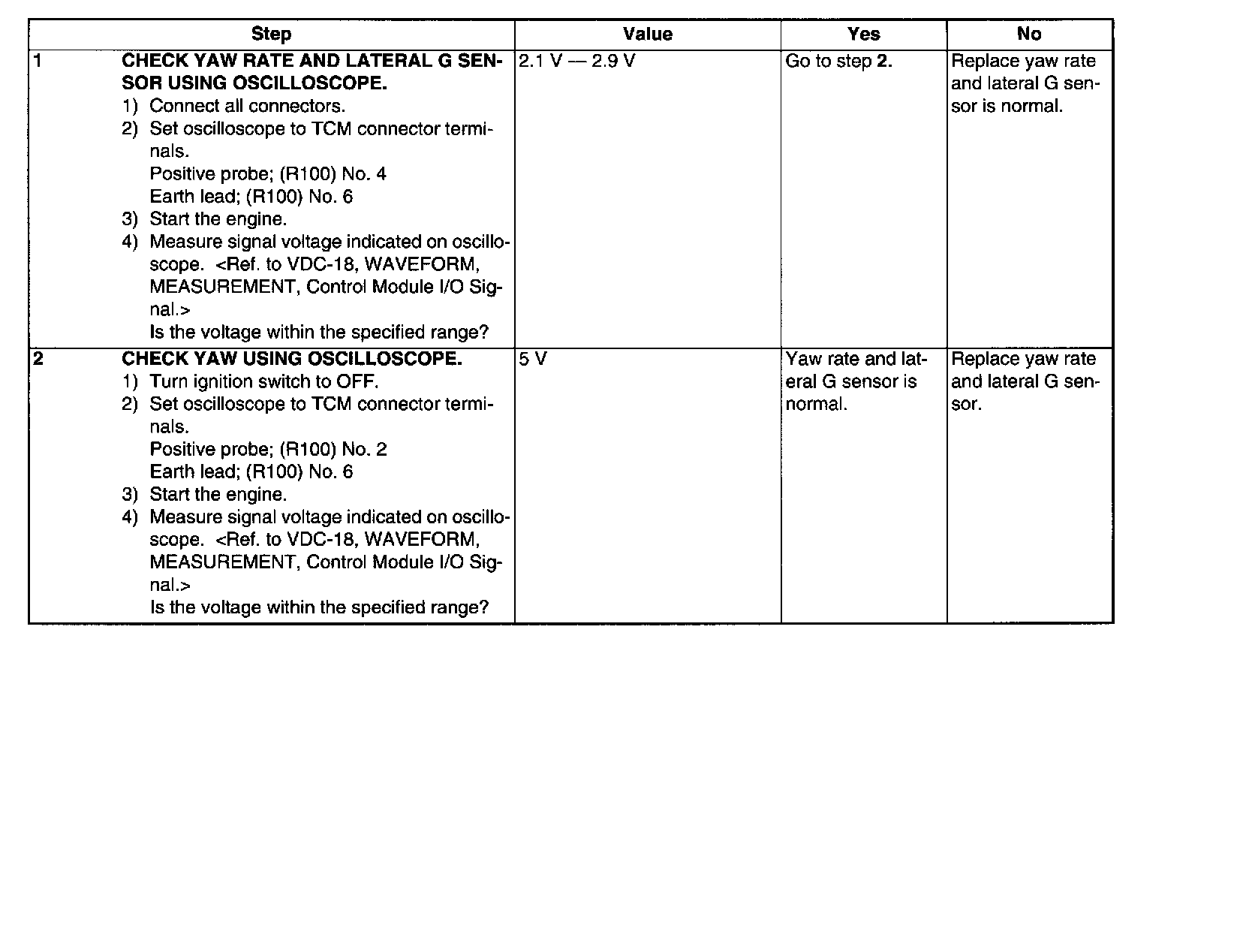

LATERAL G SENSOR SIGNAL

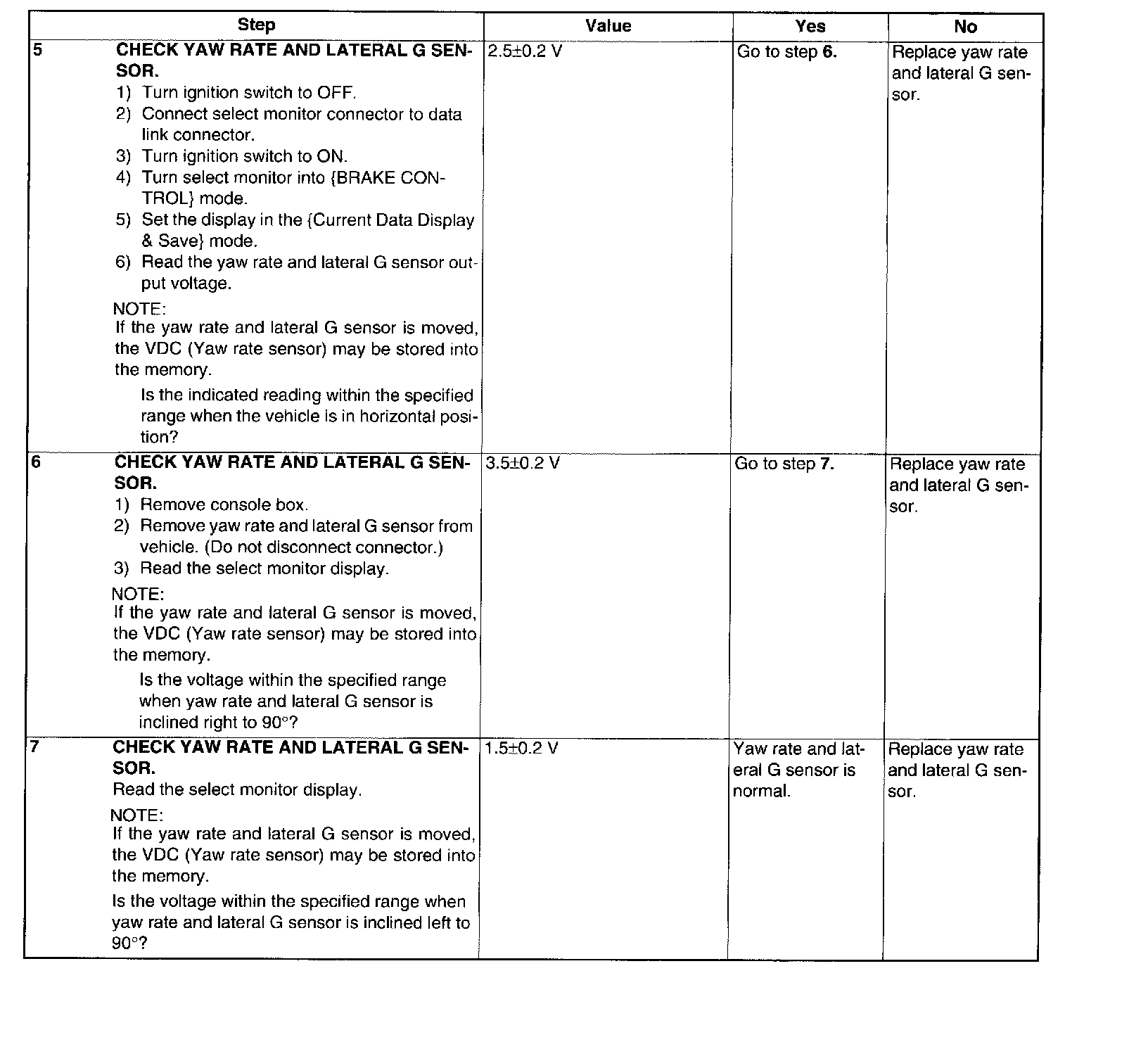

YAW RATE SENSOR SIGNAL
