Home >> Subaru >> 2003 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Emission Control Systems

Emission Control Systems

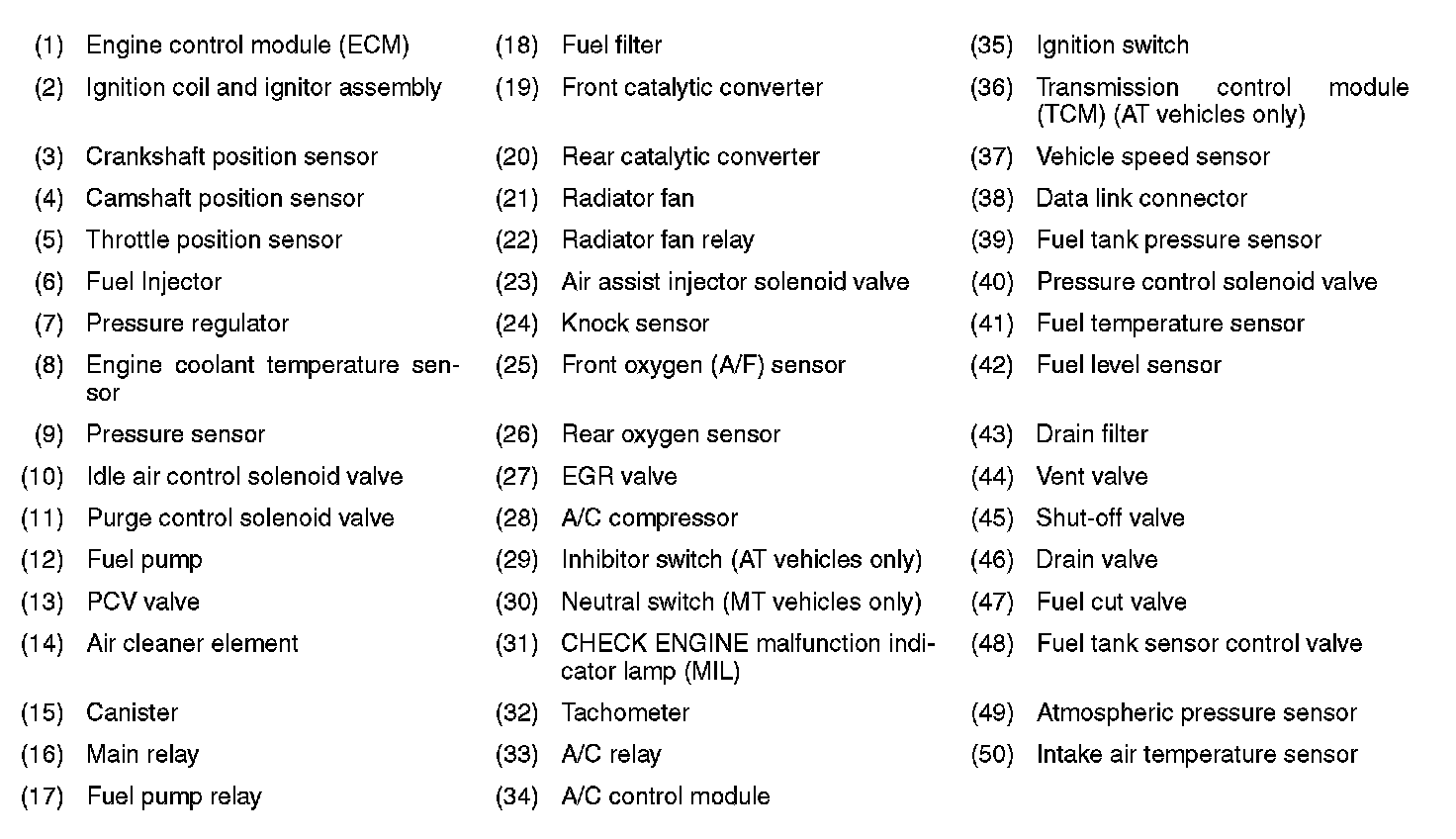

Schematic Diagrams Part 1:

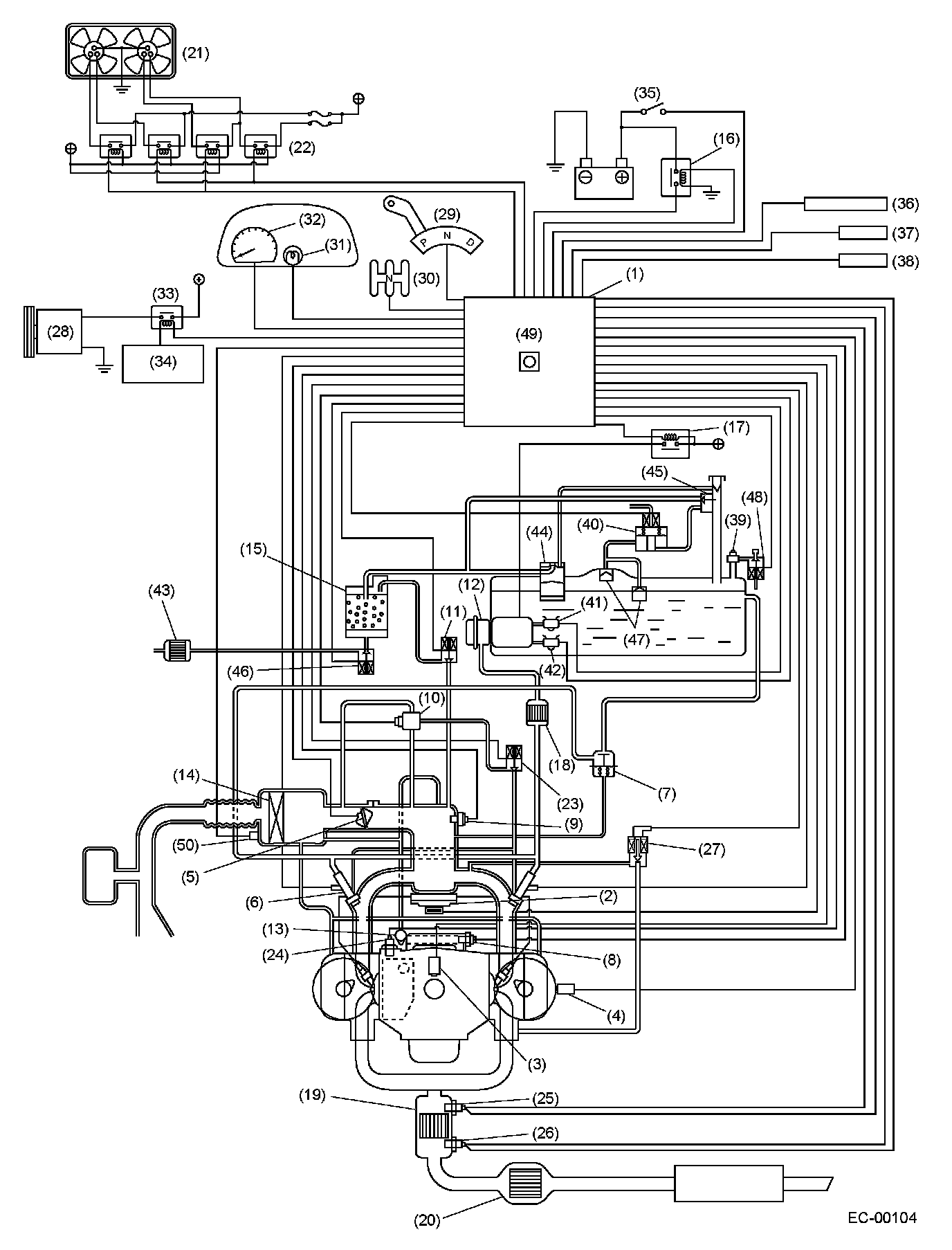

Schematic Diagrams Part 2:
