Home >> Subaru >> 2003 >> Impreza F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Body and Frame >> Seats

Seats

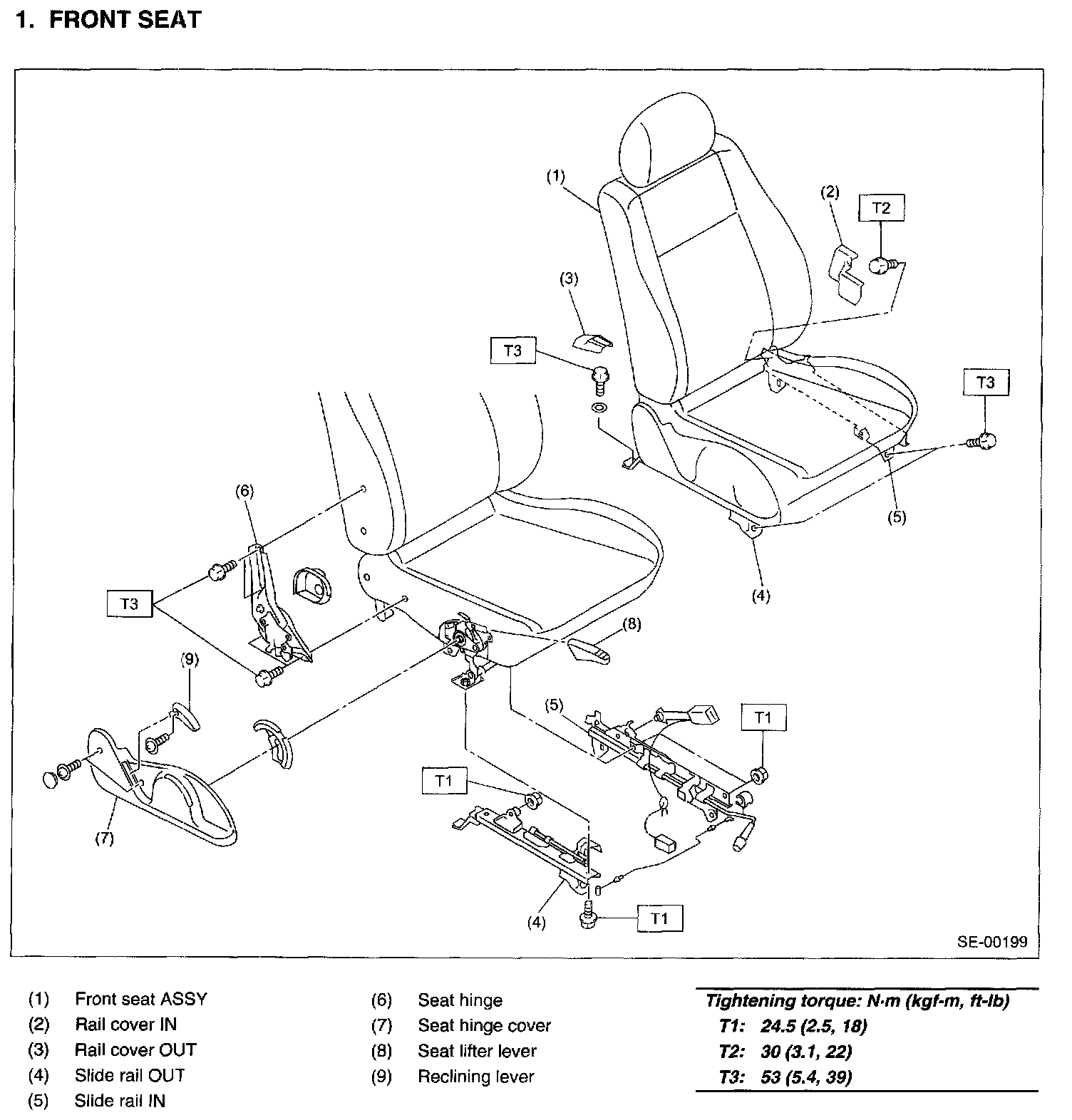

Front Seat:

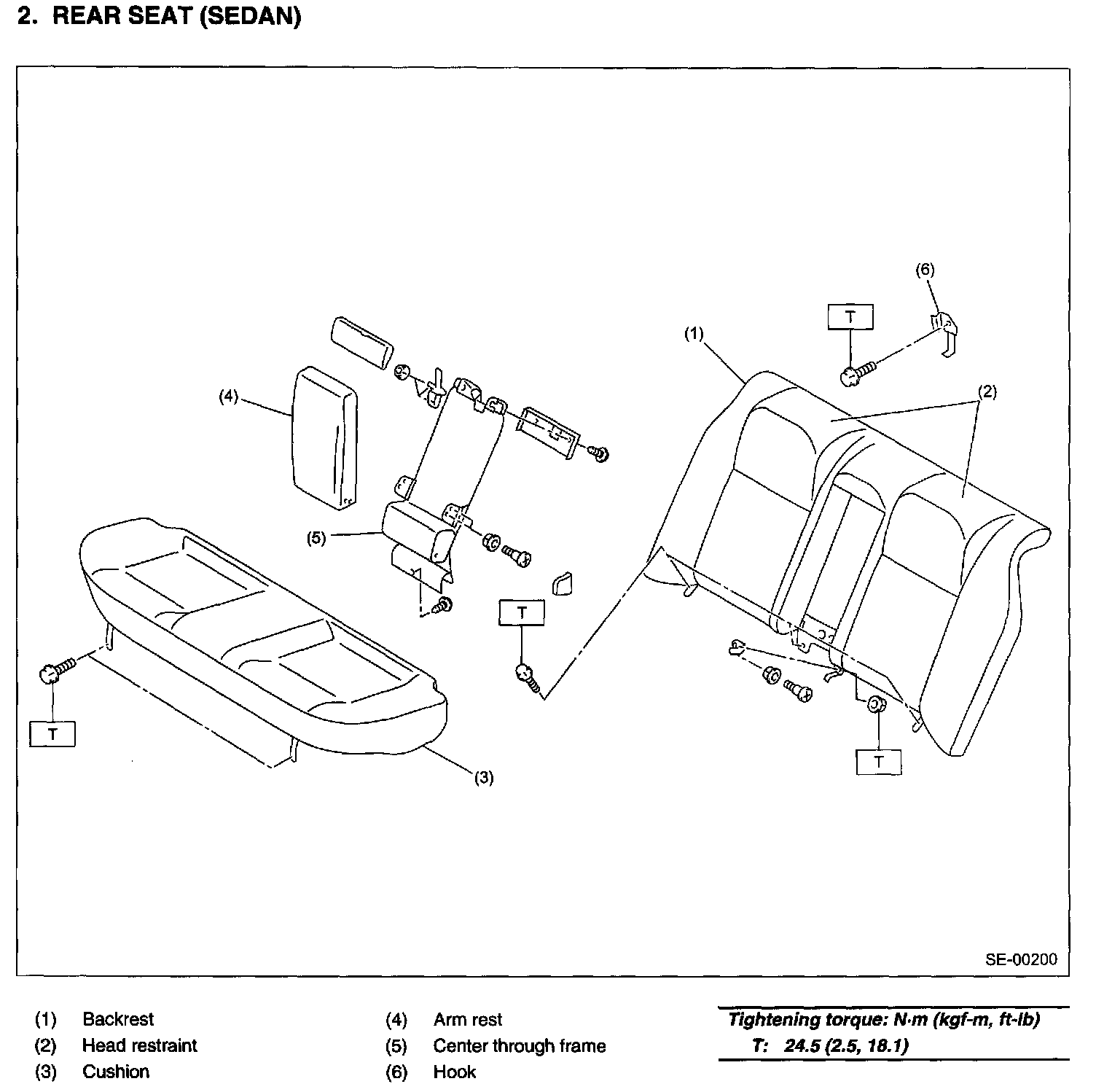

Rear Seat (SEDAN):

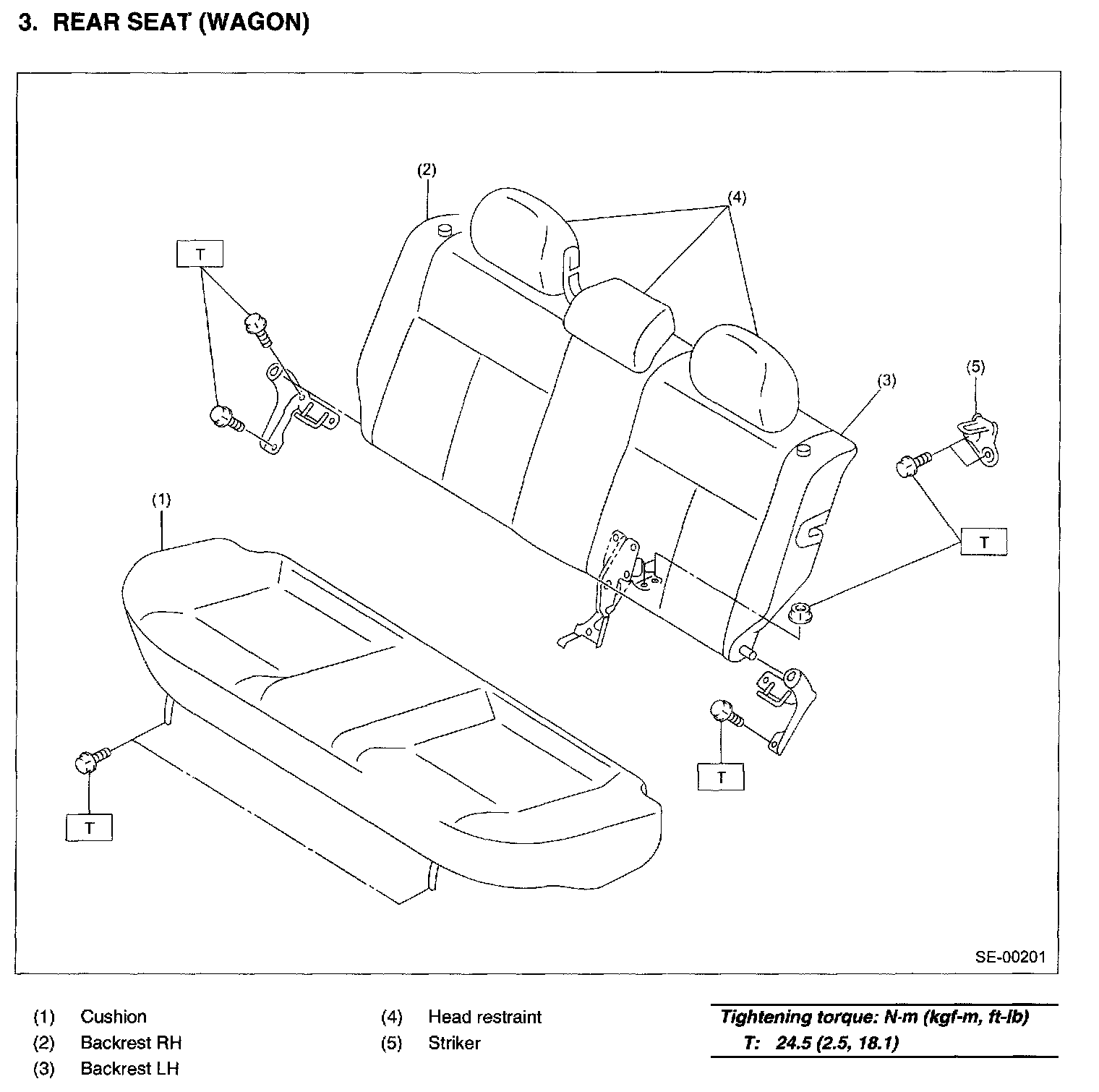

Rear Seat (WAGON):
