Shift Interlock: Testing and Inspection

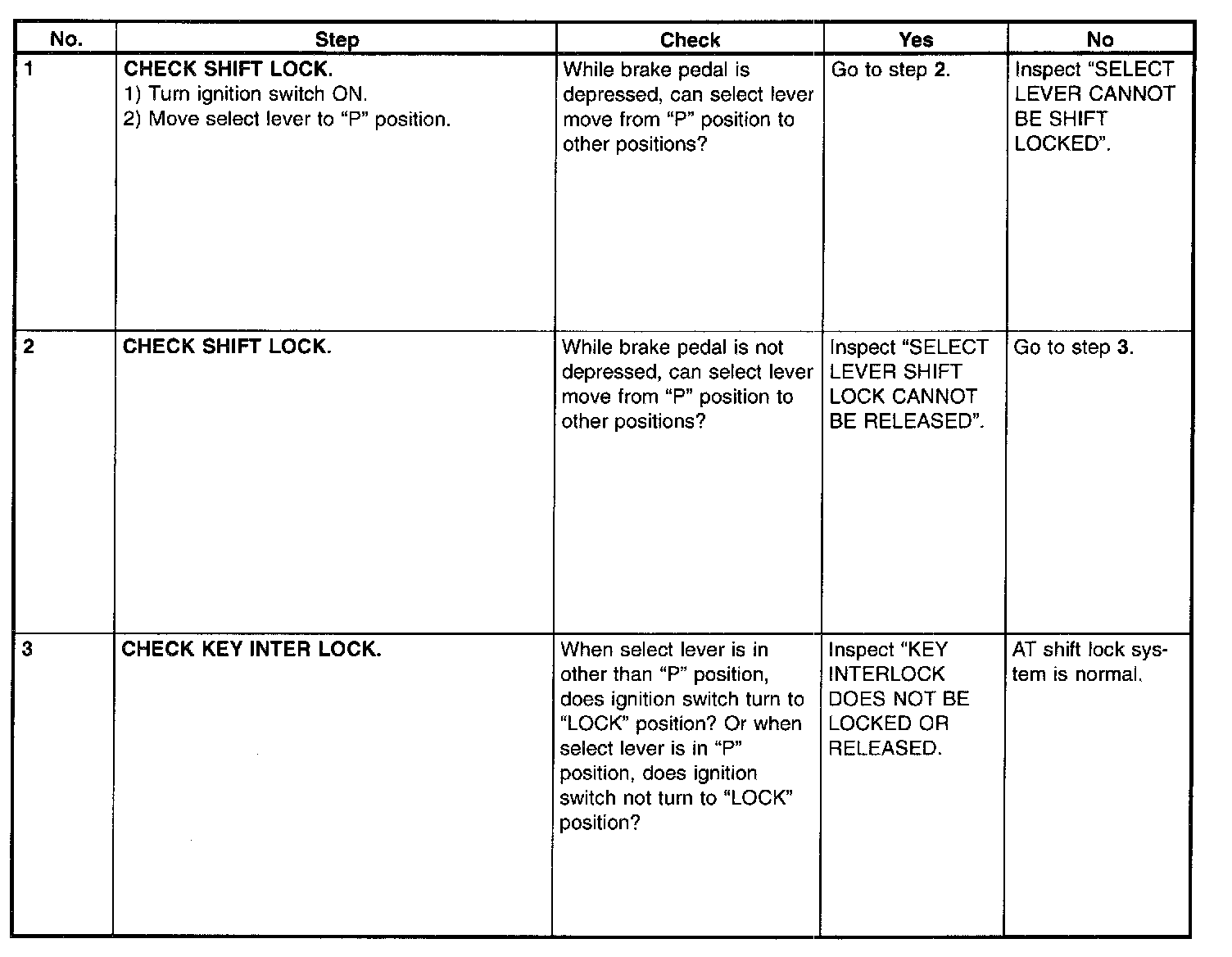

INSPECTION

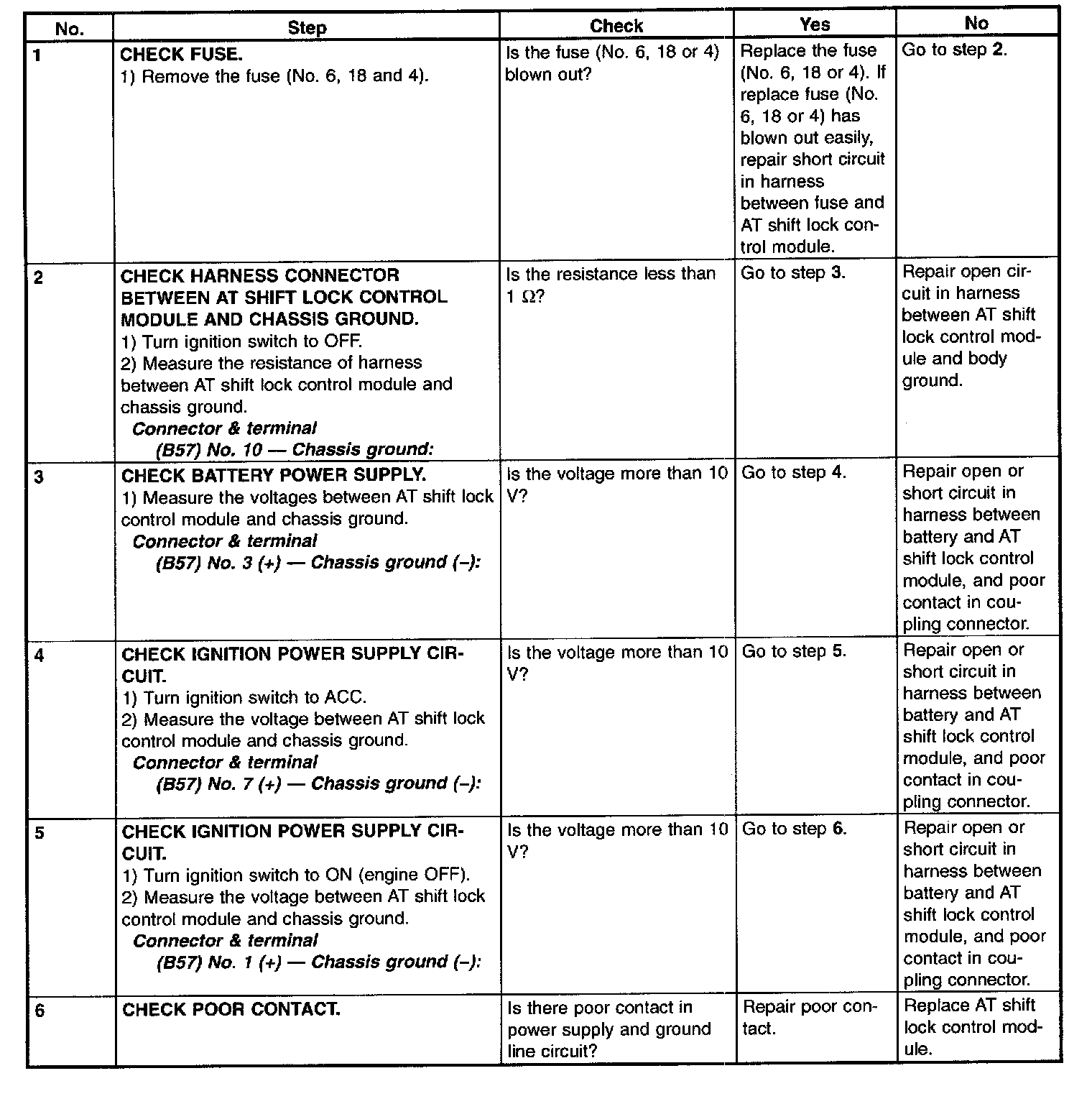

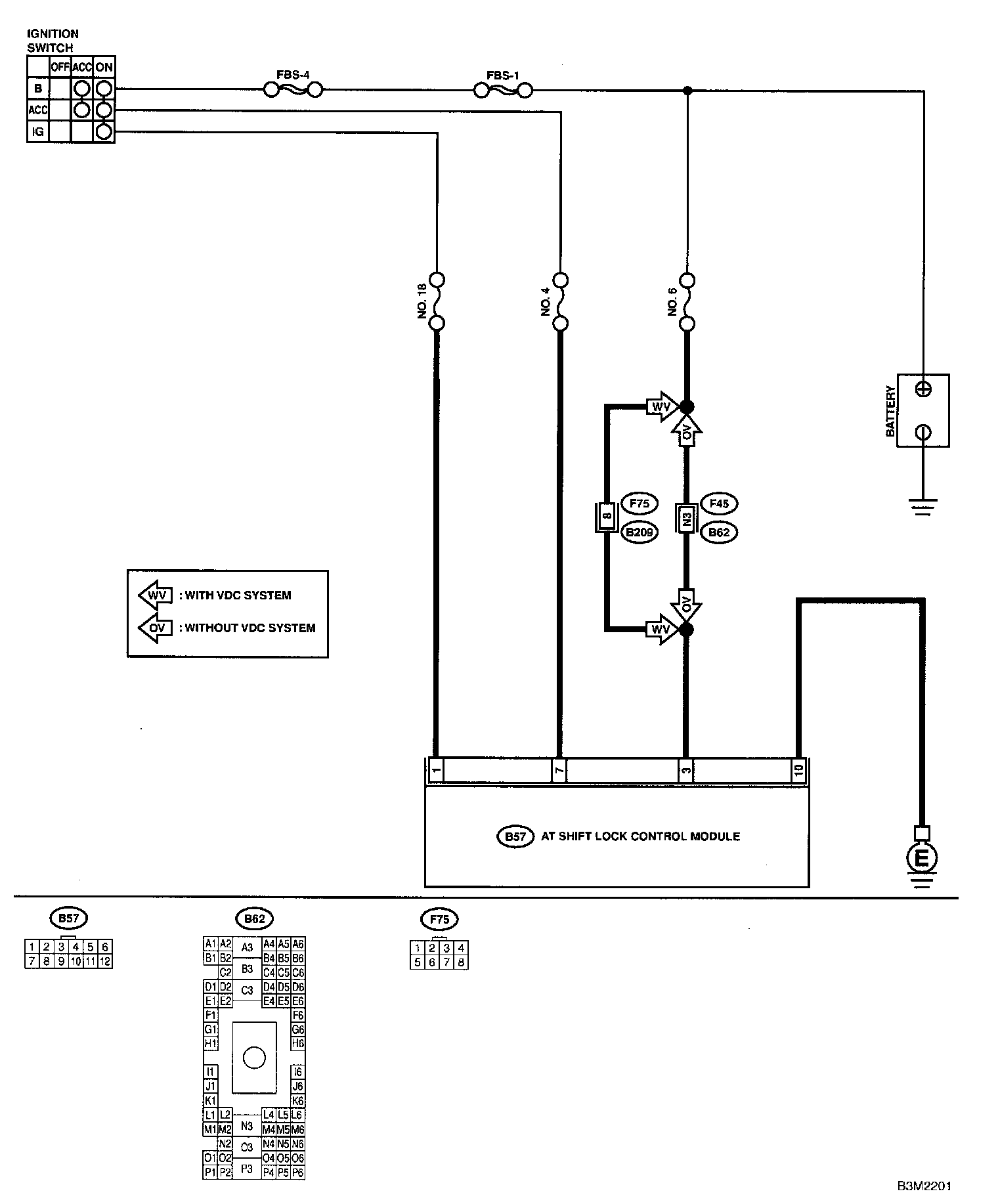

1. AT SHIFT LOCK CONTROL MODULE POWER SUPPLY AND GROUND LINE





WIRING DIAGRAM:

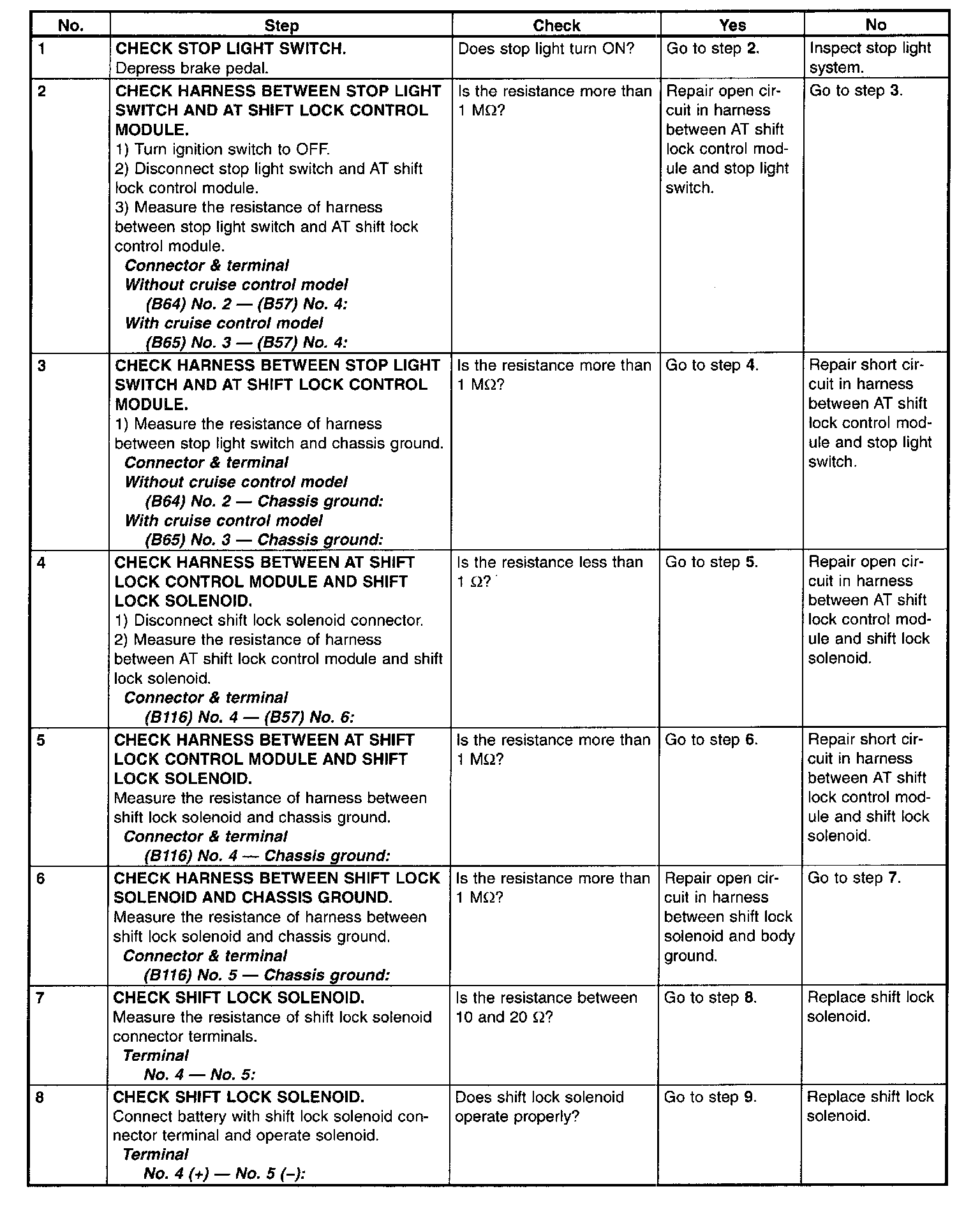

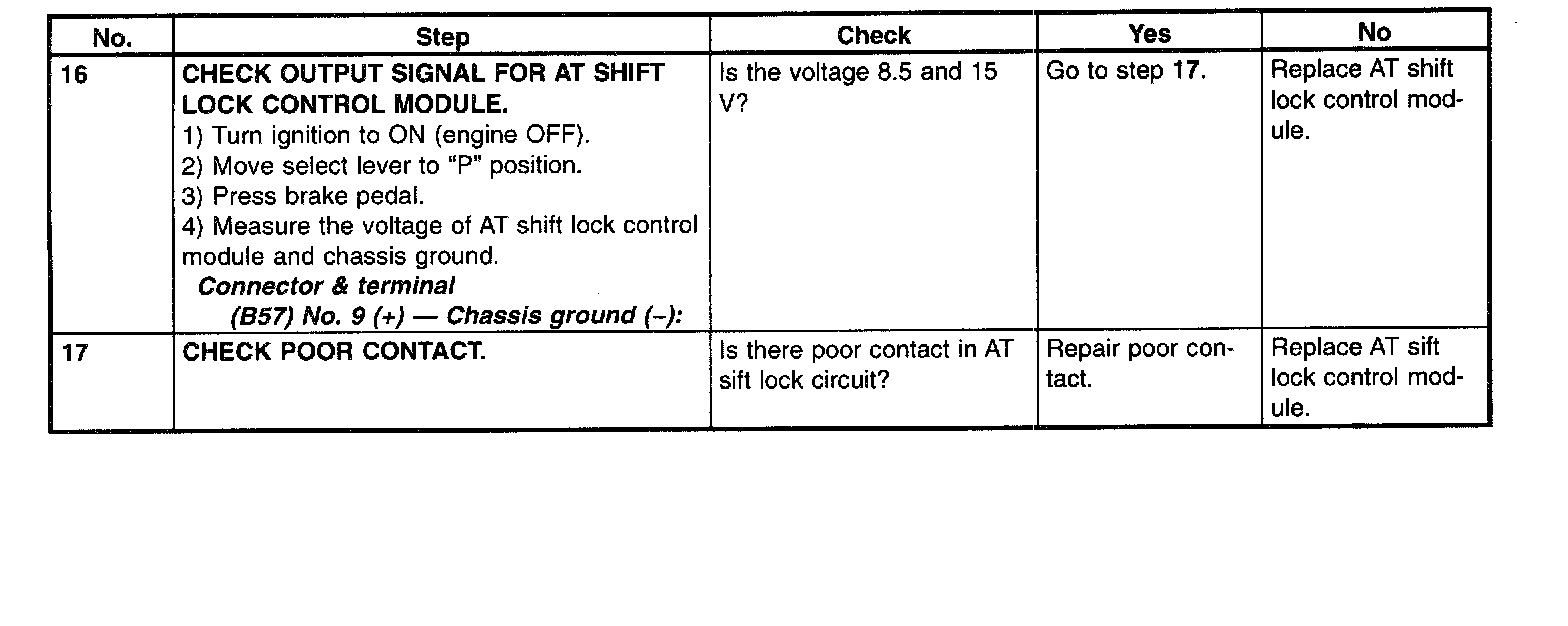

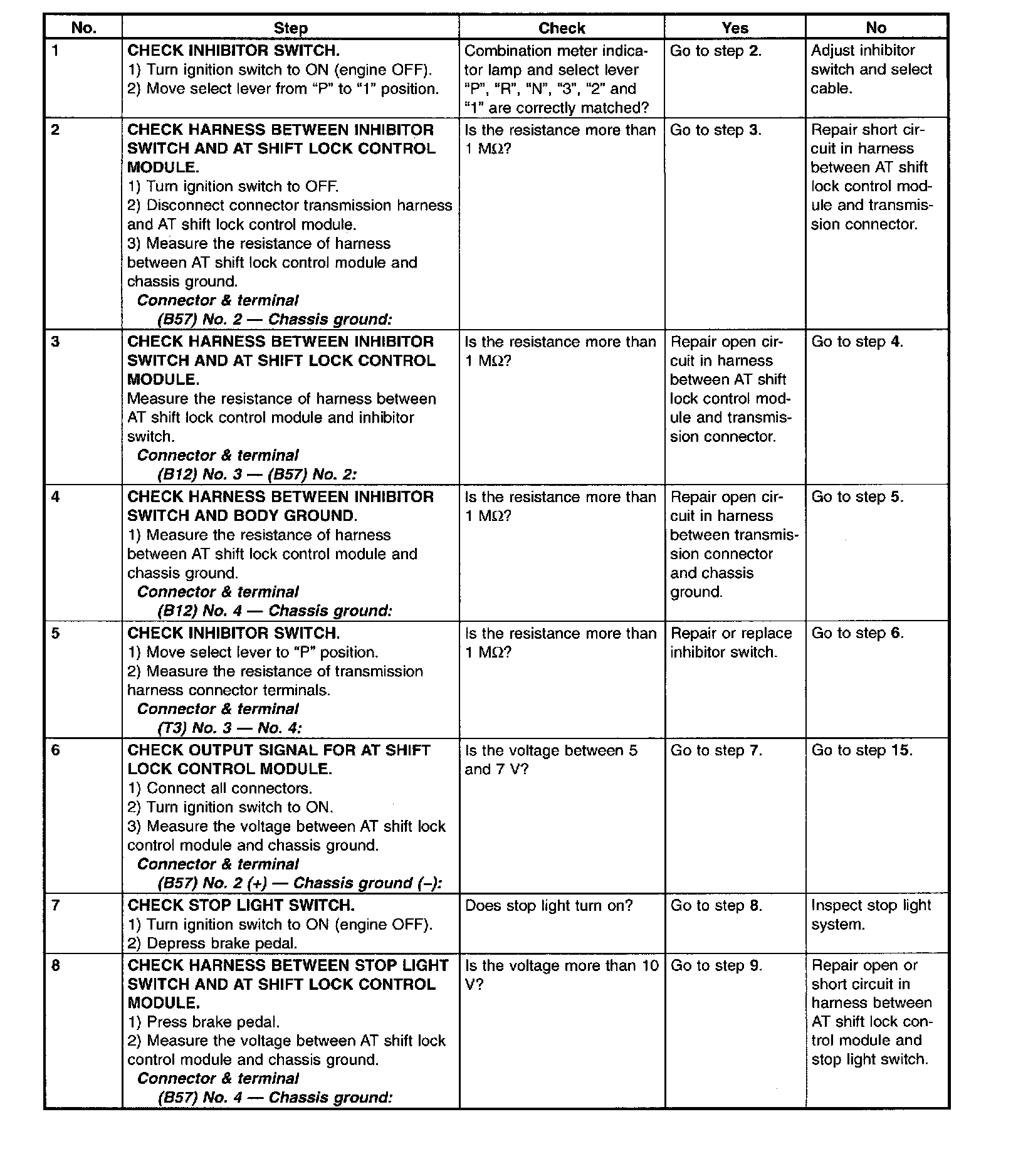

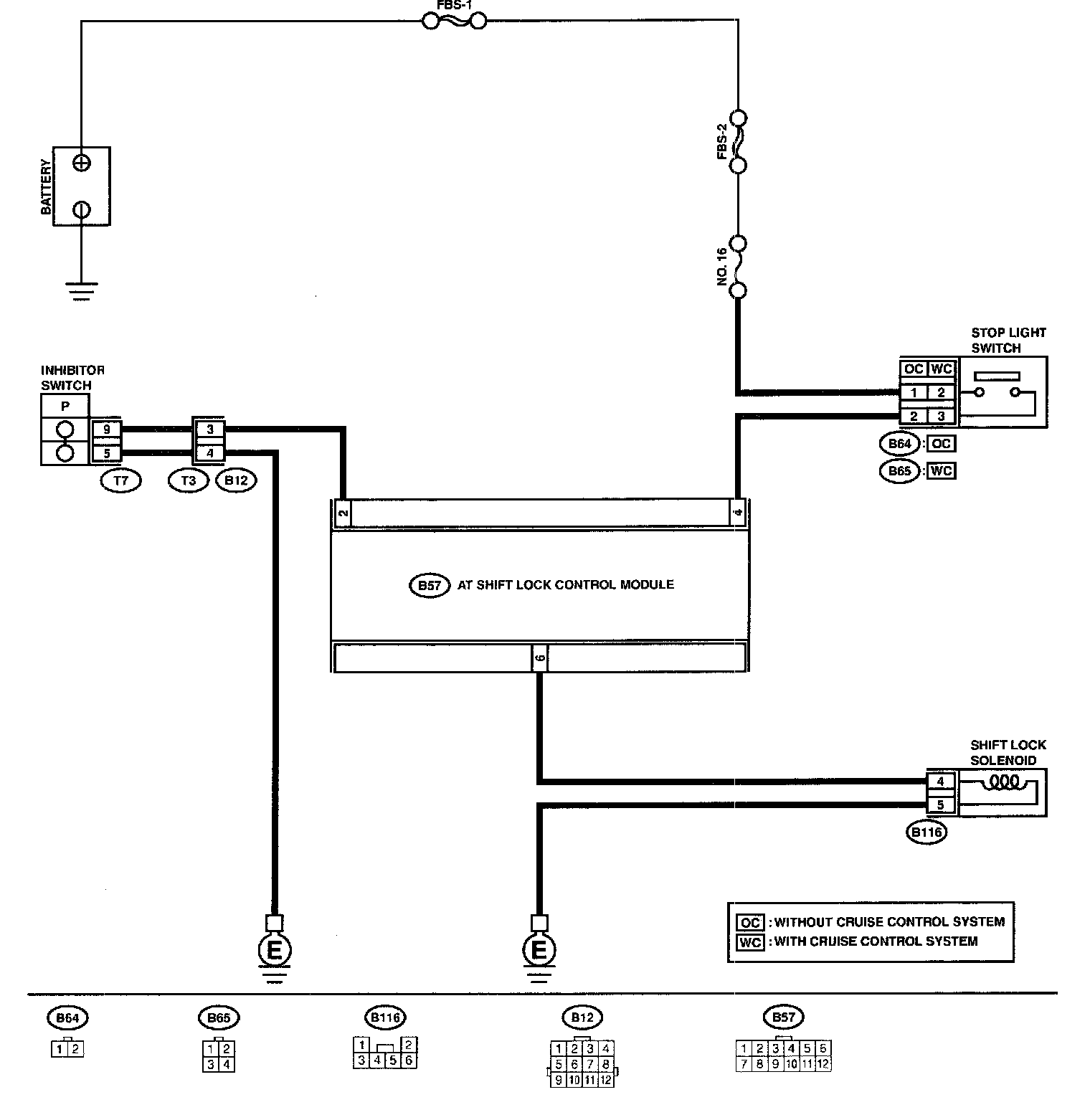

2. SELECT LEVER CANNOT BE SHIFT LOCKED





WIRING DIAGRAM:

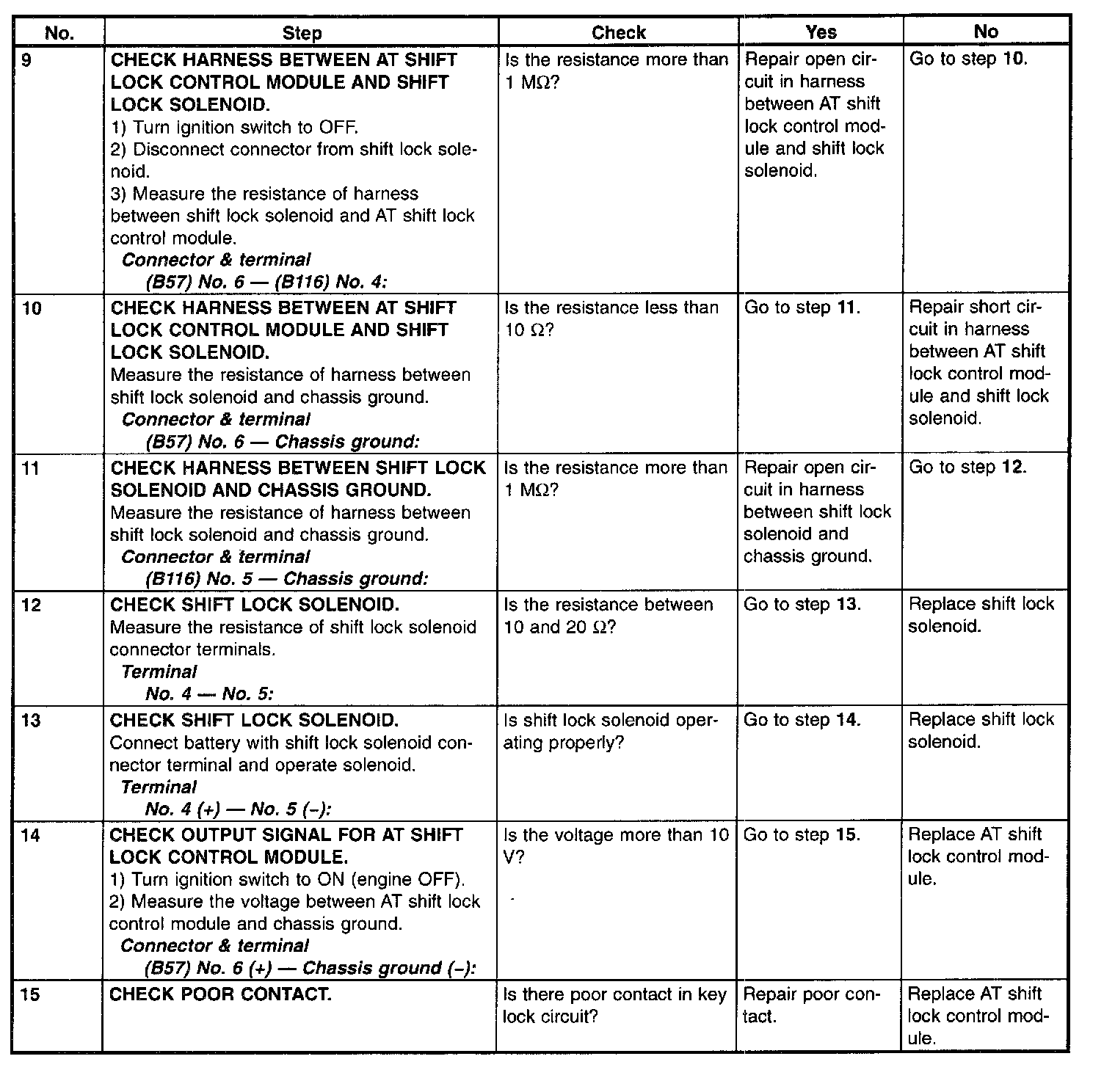

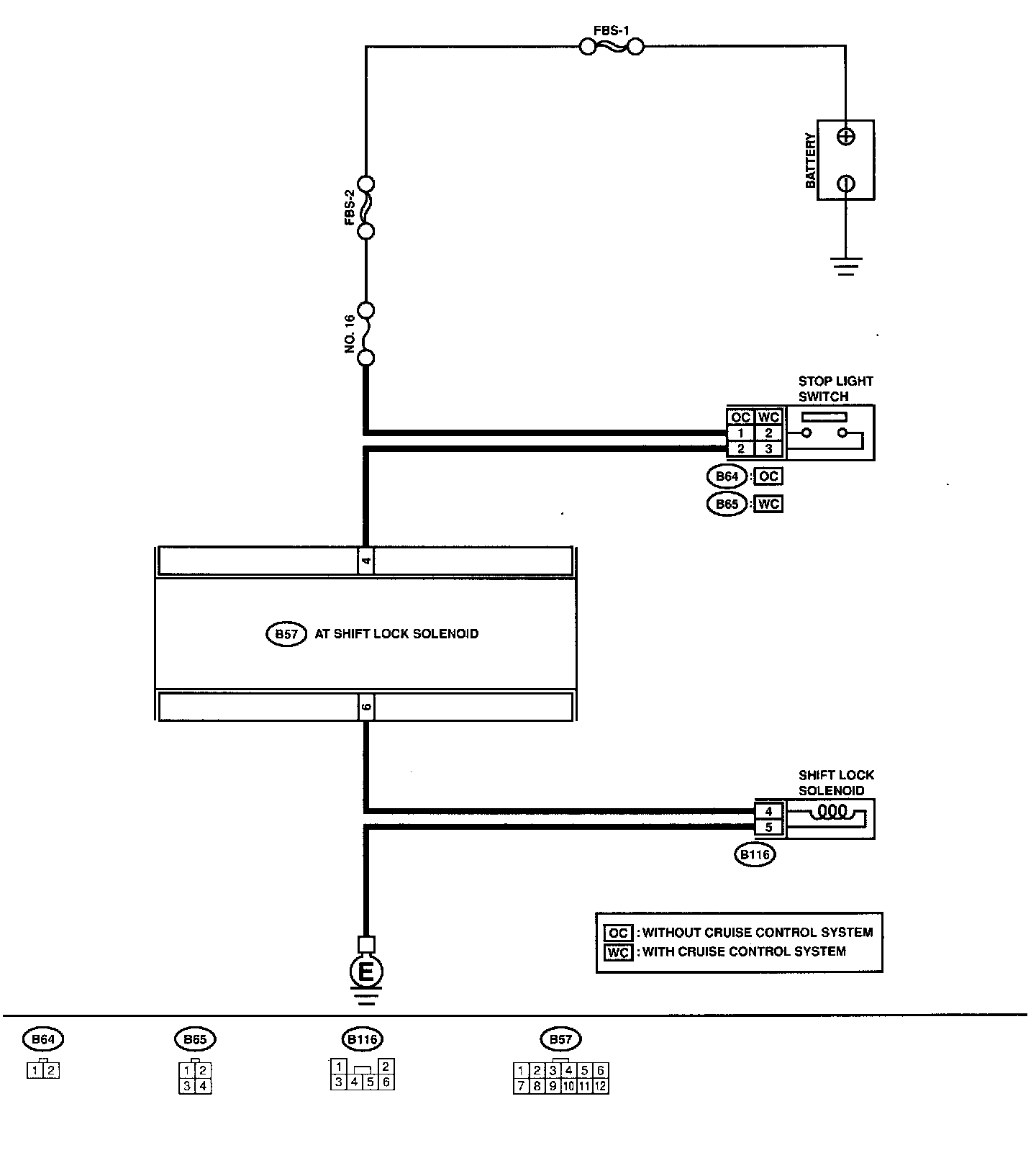

3. SELECT LEVER SHIFT LOCK CANNOT BE RELEASED





WIRING DIAGRAM:

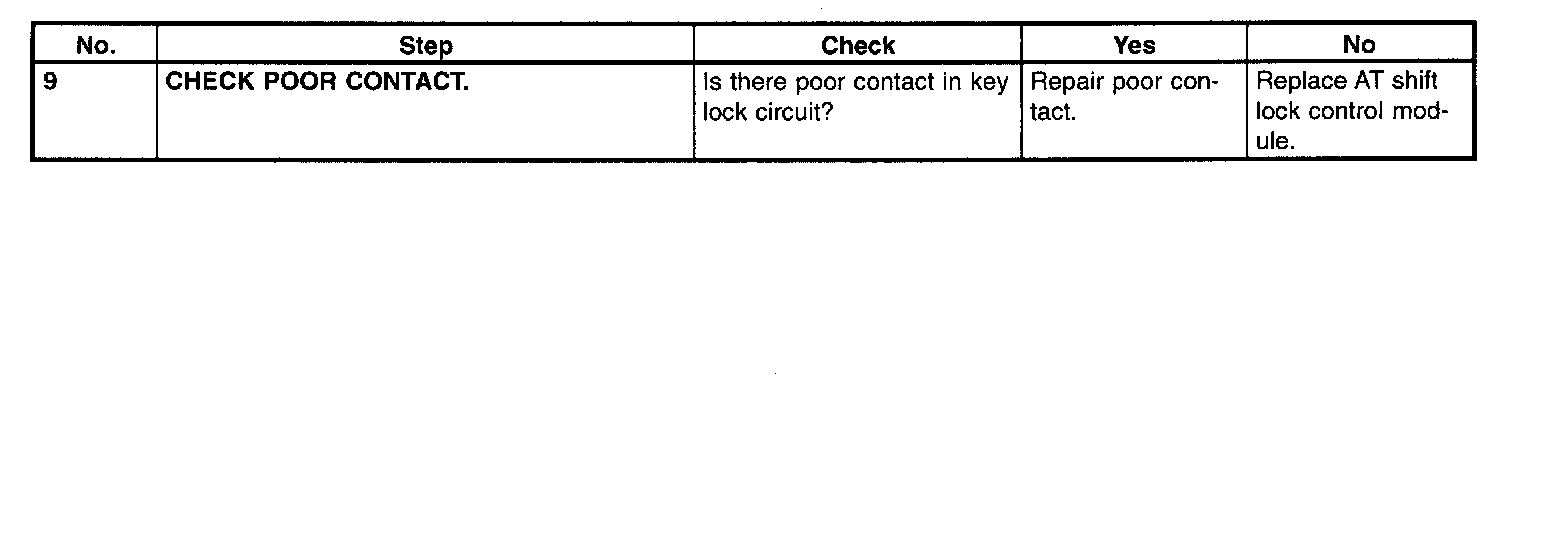

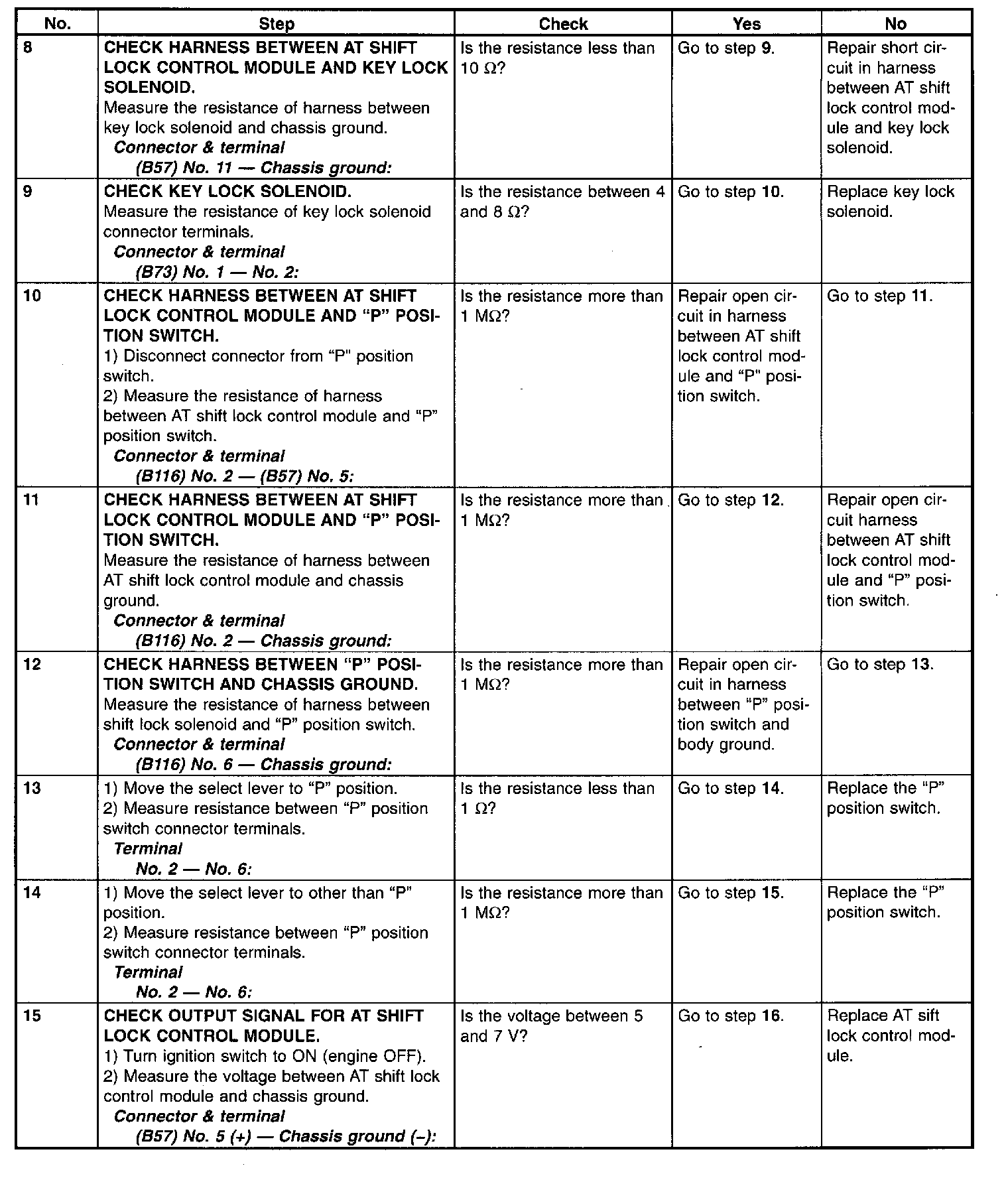

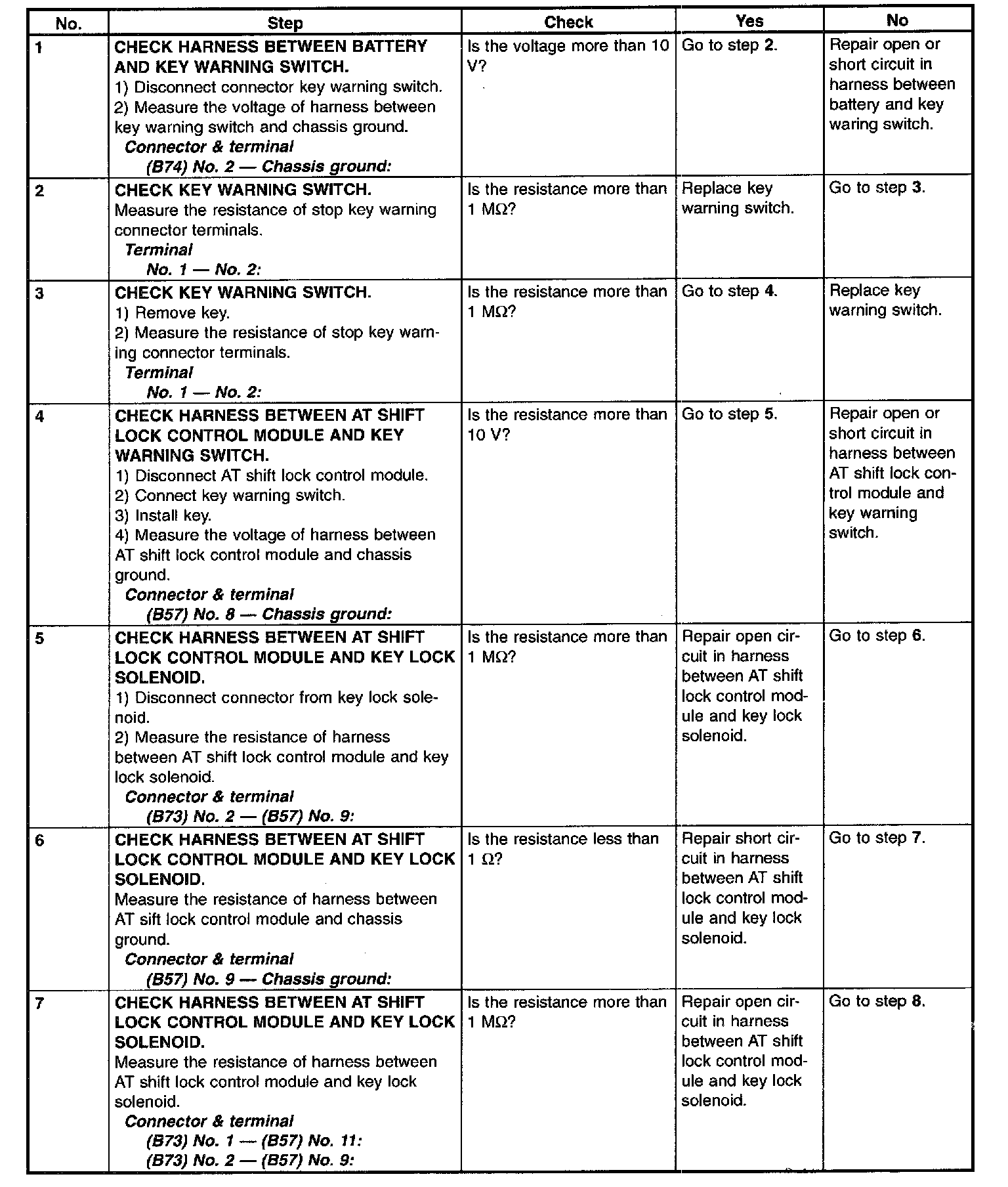

4. KEY INTERLOCK DOES NOT LOCK OR RELEASE

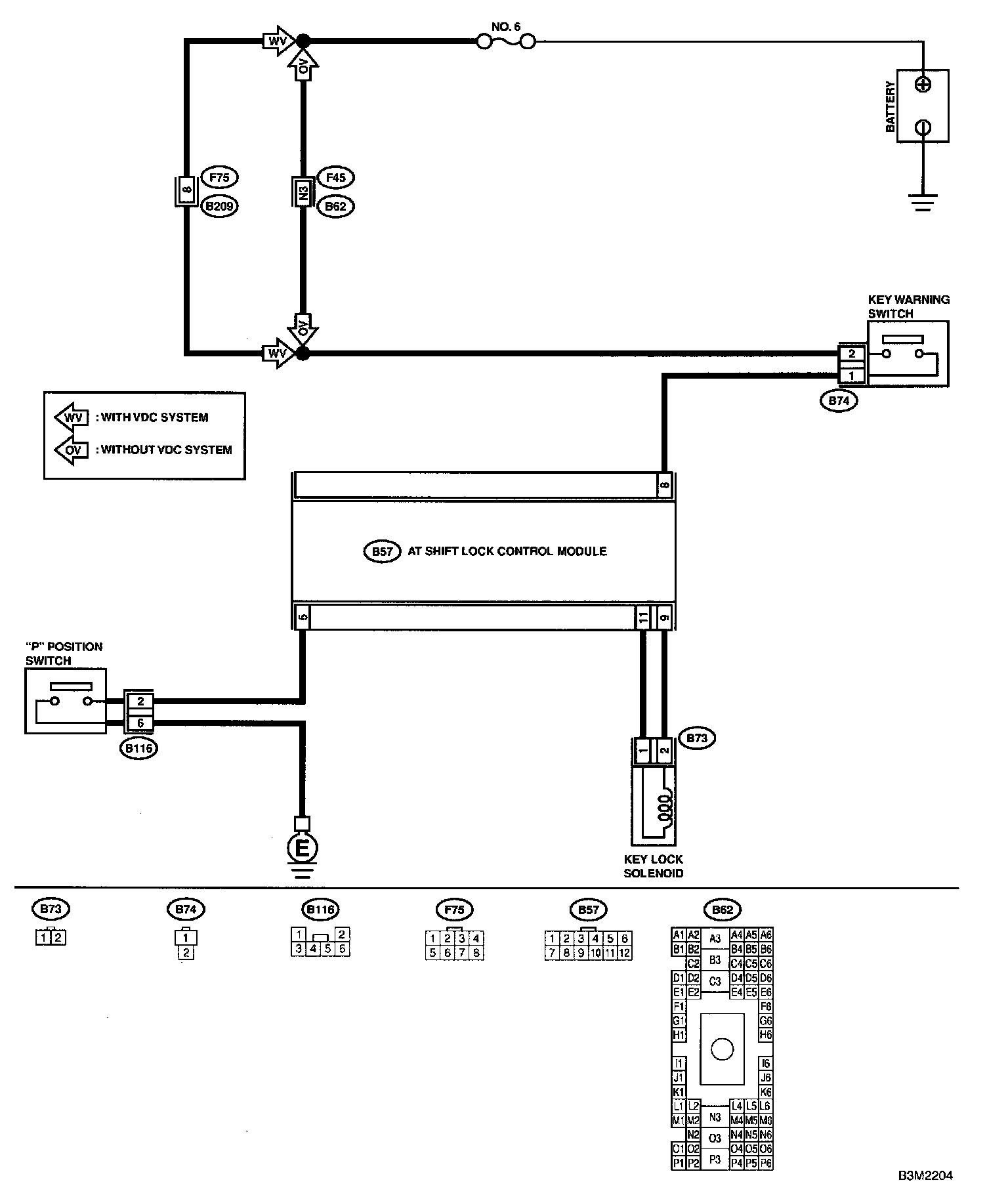

WIRING DIAGRAM:
