Removal and Installation

REMOVAL

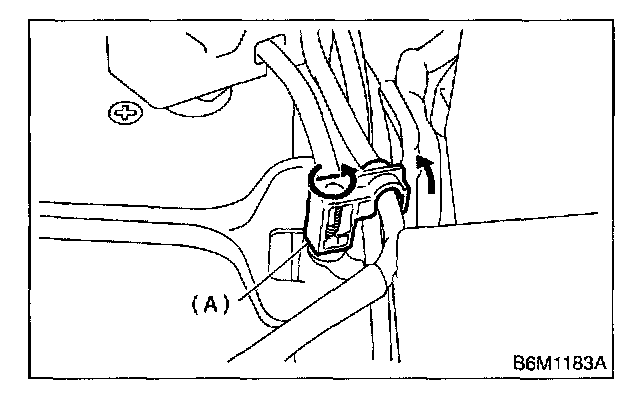

1. Remove battery cable holder (A) from battery rod.
2. Disconnect the positive (+) terminal after disconnecting the negative (-) terminal of battery.

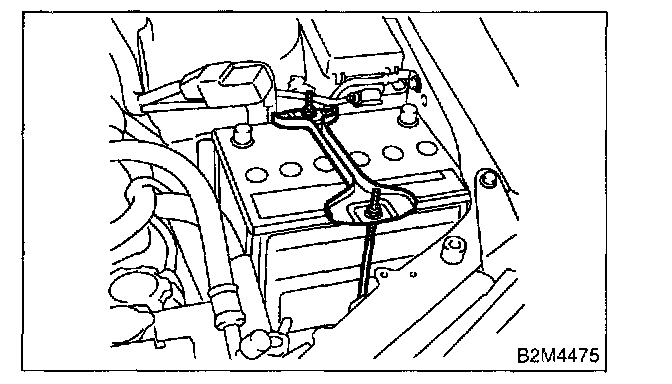

3. Remove flange nuts from battery rods and take off battery holder.
4. Remove battery.

INSTALLATION
Install in the reverse order of removal.

Tightening torque: 3.4 Nm (0.35 kgf.m, 2.5 ft.lb)

NOTE:
- Clean battery cable terminals and apply grease to retard the formation of corrosion.
- Connect the positive (+) terminal of battery and then the negative (-) terminal of the battery.
