Variable Induction Control Valve: Service and Repair

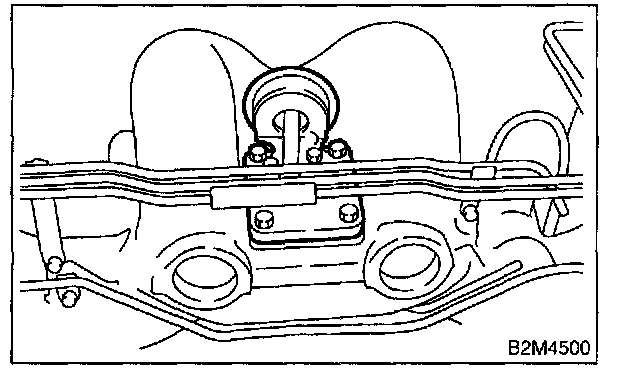

Induction Valve

REMOVAL
1. Disconnect battery ground cable.
2. Remove intake manifold.




3. Remove induction valve from intake manifold.

INSTALLATION
Install in the reverse order of removal.

NOTE: Always use a new gasket.

Tightening Torque: 19 Nm (1.9 kgf-m, 14 ft-lb)
