Fuel Injector Circuit
FUEL INJECTOR CIRCUITCAUTION:
- Check or repair only faulty parts.
- Alter repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
Wiring Diagram:

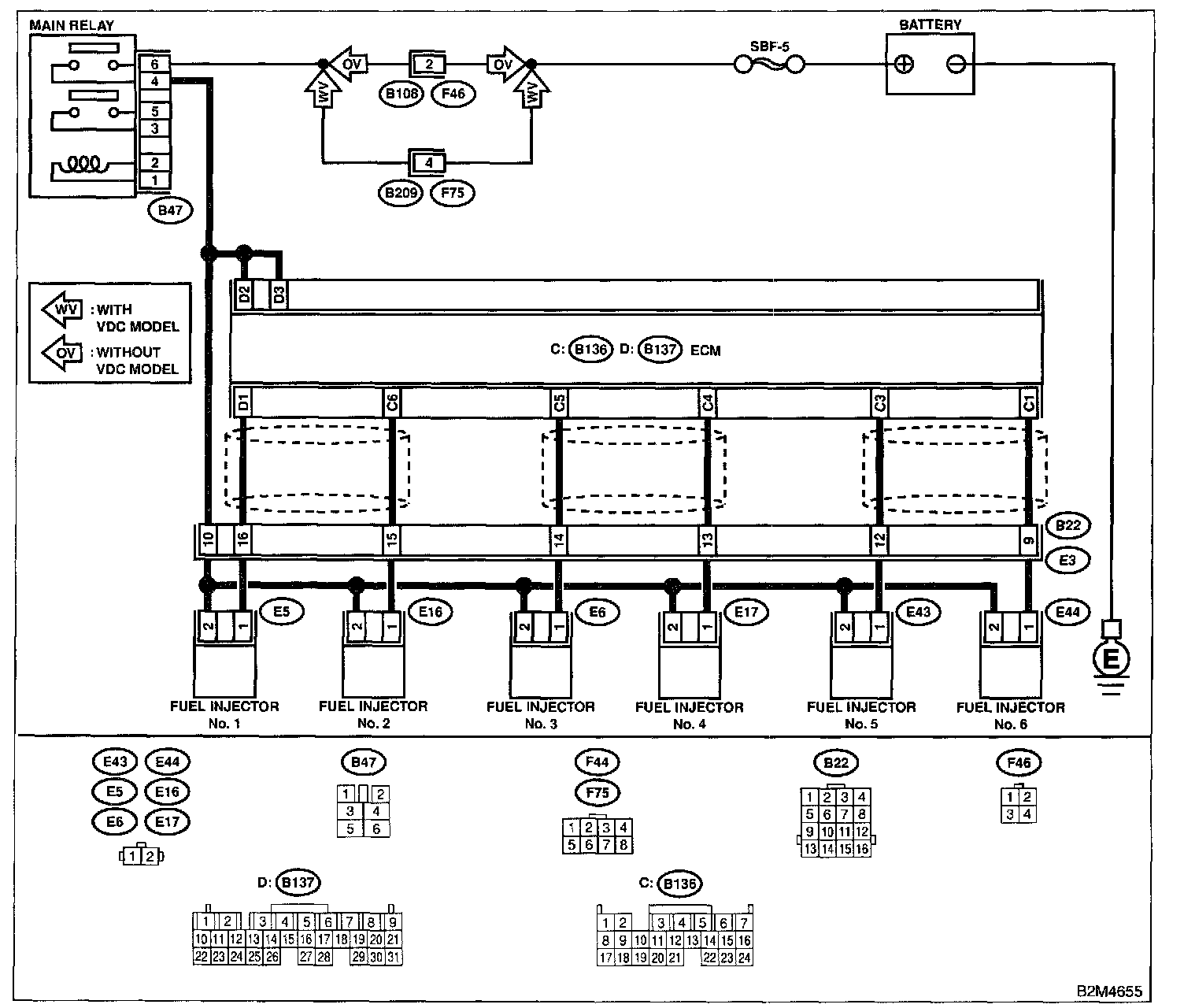

WIRING DIAGRAM
Step 1:

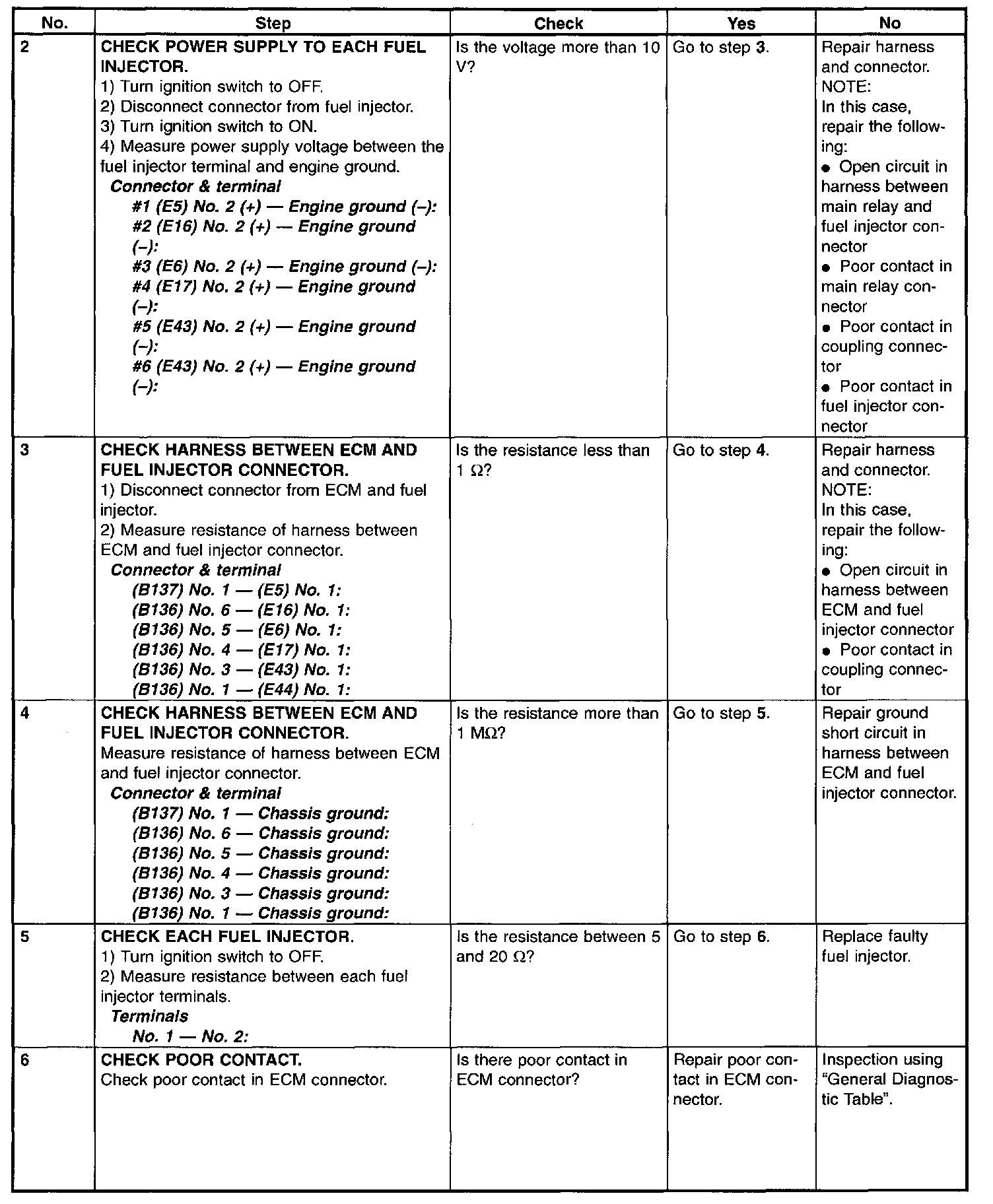

Step 2 - 6:
CAUTION:
- Check or repair only faulty parts.
- Alter repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
WIRING DIAGRAM
