Blower Motor Resistor: Service and Repair

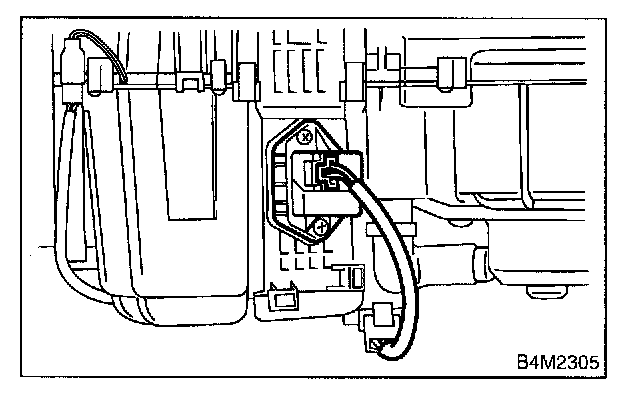

Power Transistor (Heater Blower Resistor)

REMOVAL

1. Remove glove box.
2. Disconnect power transistor connector.




3. Loosen 2 screws to remove power transistor.

INSTALLATION

Install in the reverse order of removal.
