Keyless Entry

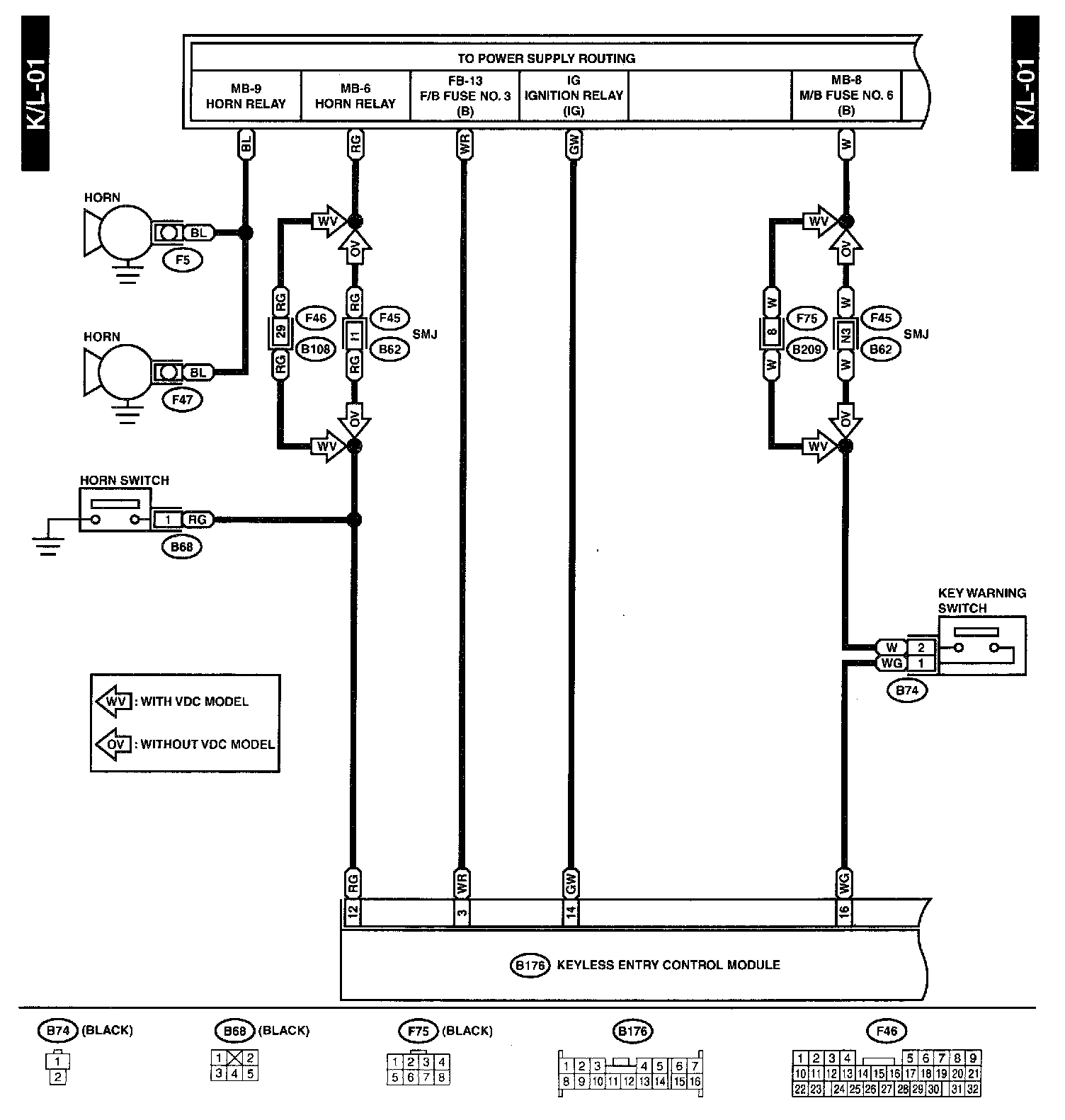

K/L-01 - Keyless Entry System:

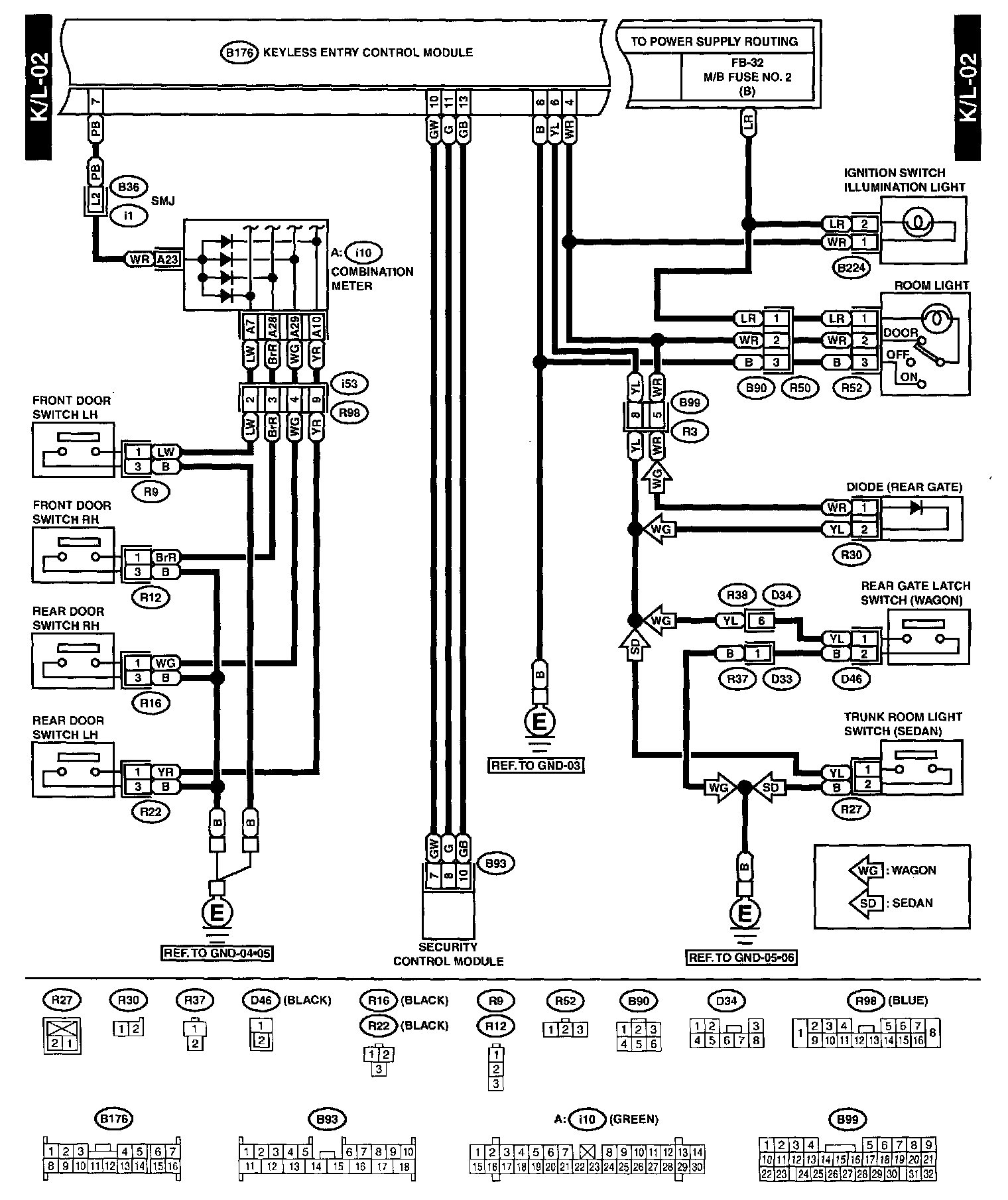

K/L-02 - Keyless Entry System:

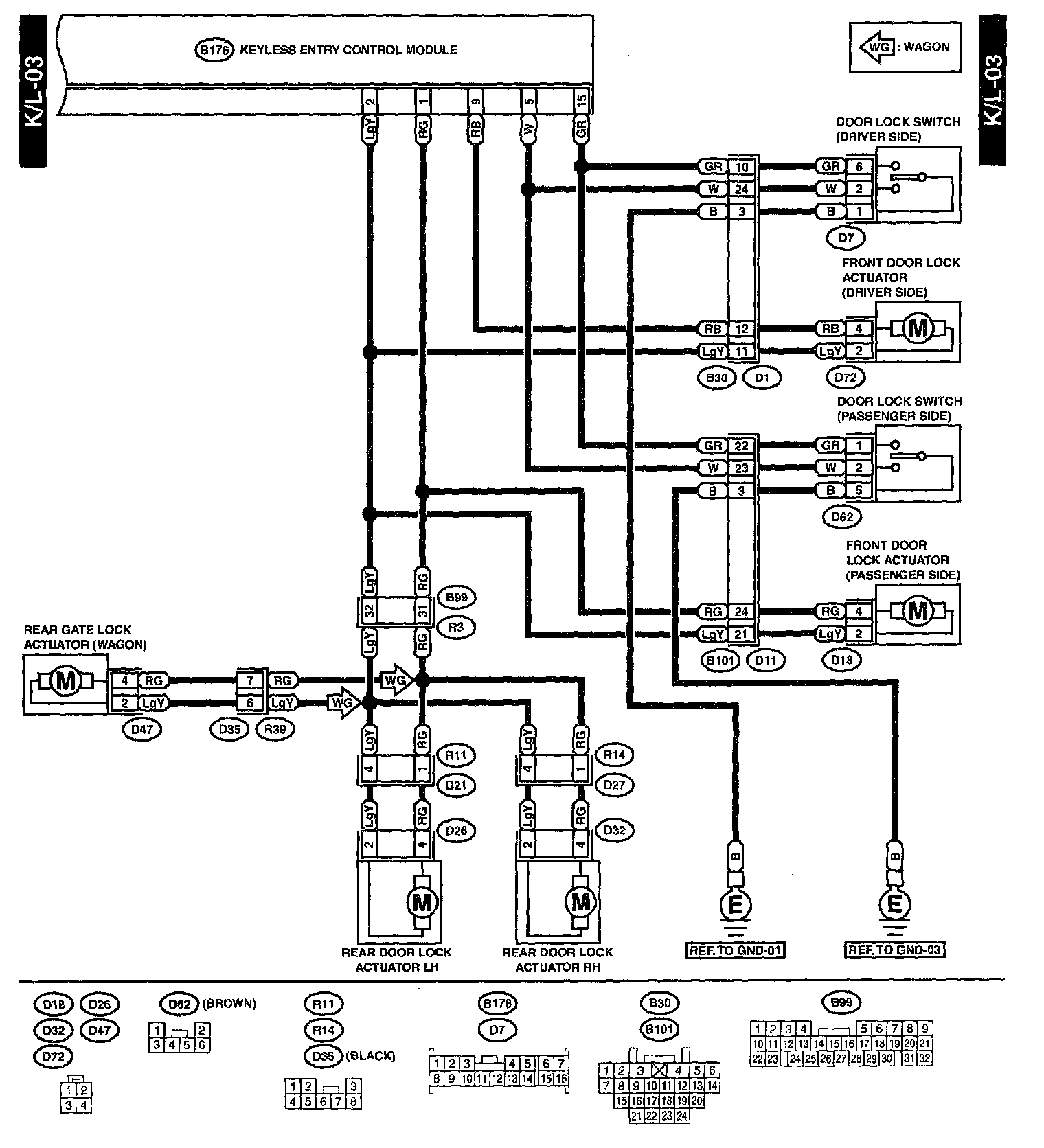

K/L-03 - Keyless Entry System:
