Pinout Values and Diagnostic Parameters

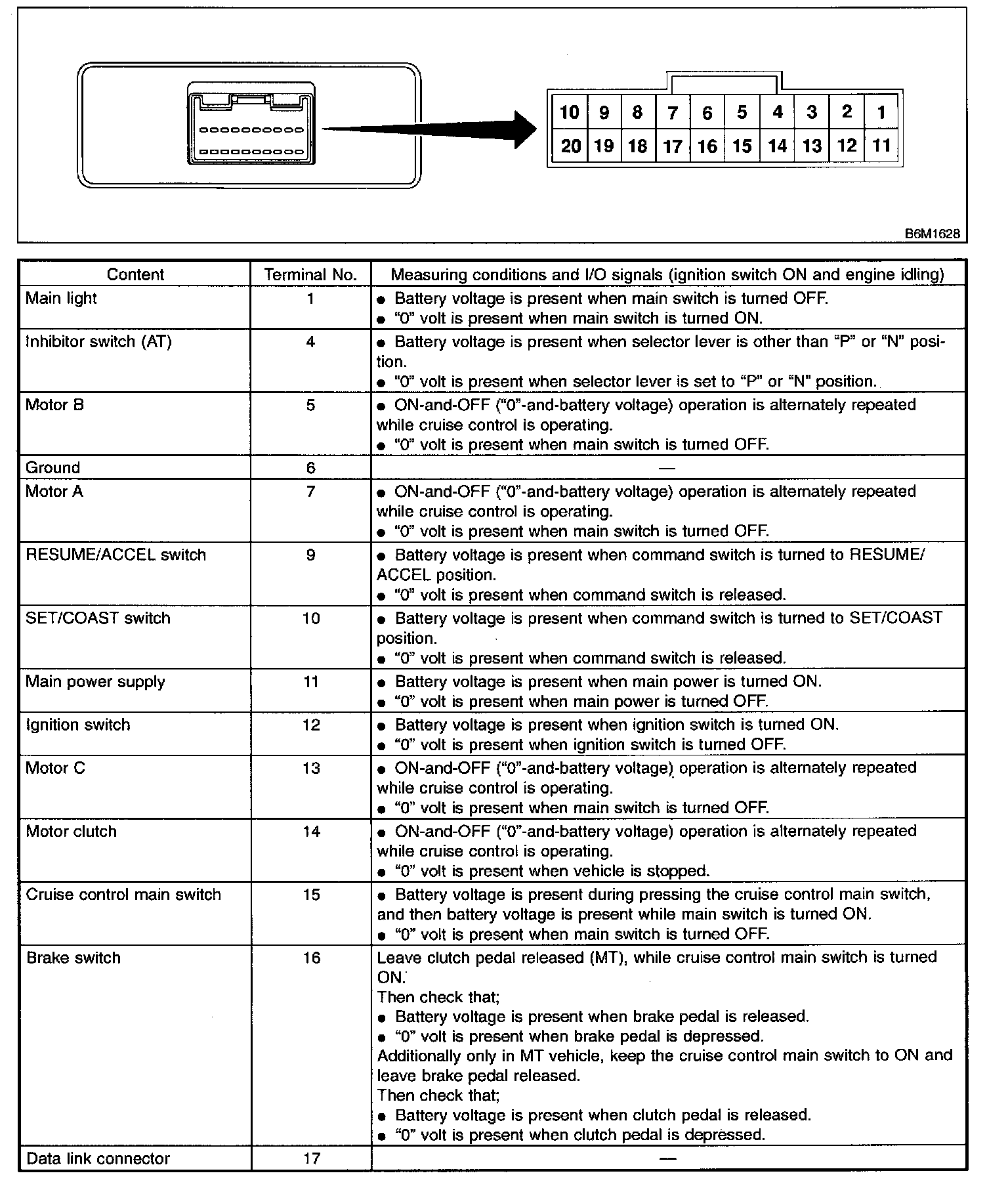

Electrical Specification Part 1:

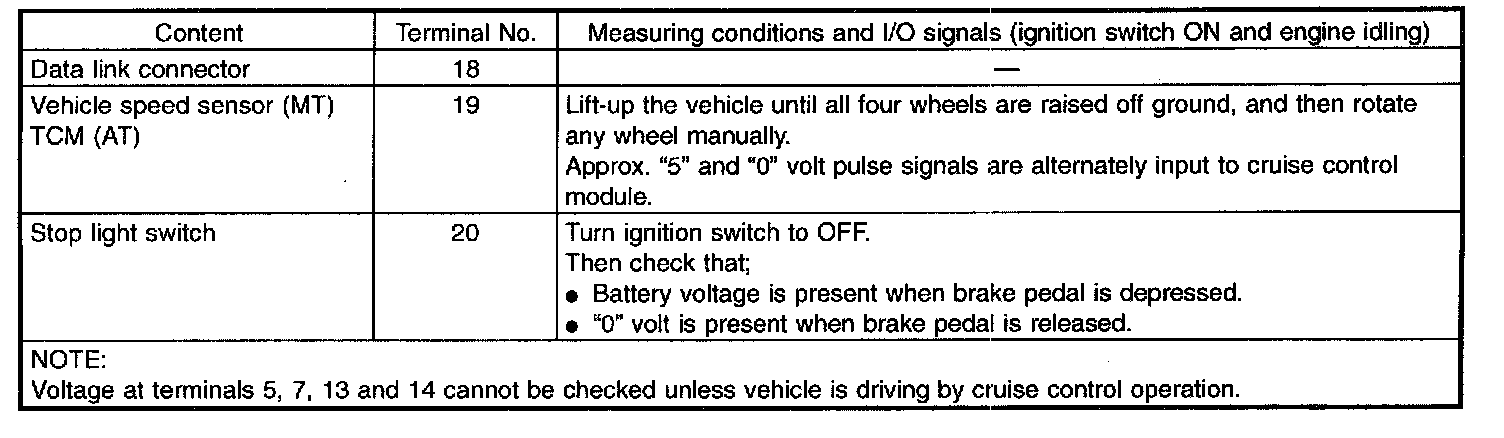

Electrical Specification Part 2:
