Vehicle Dynamics Control (VDC) System

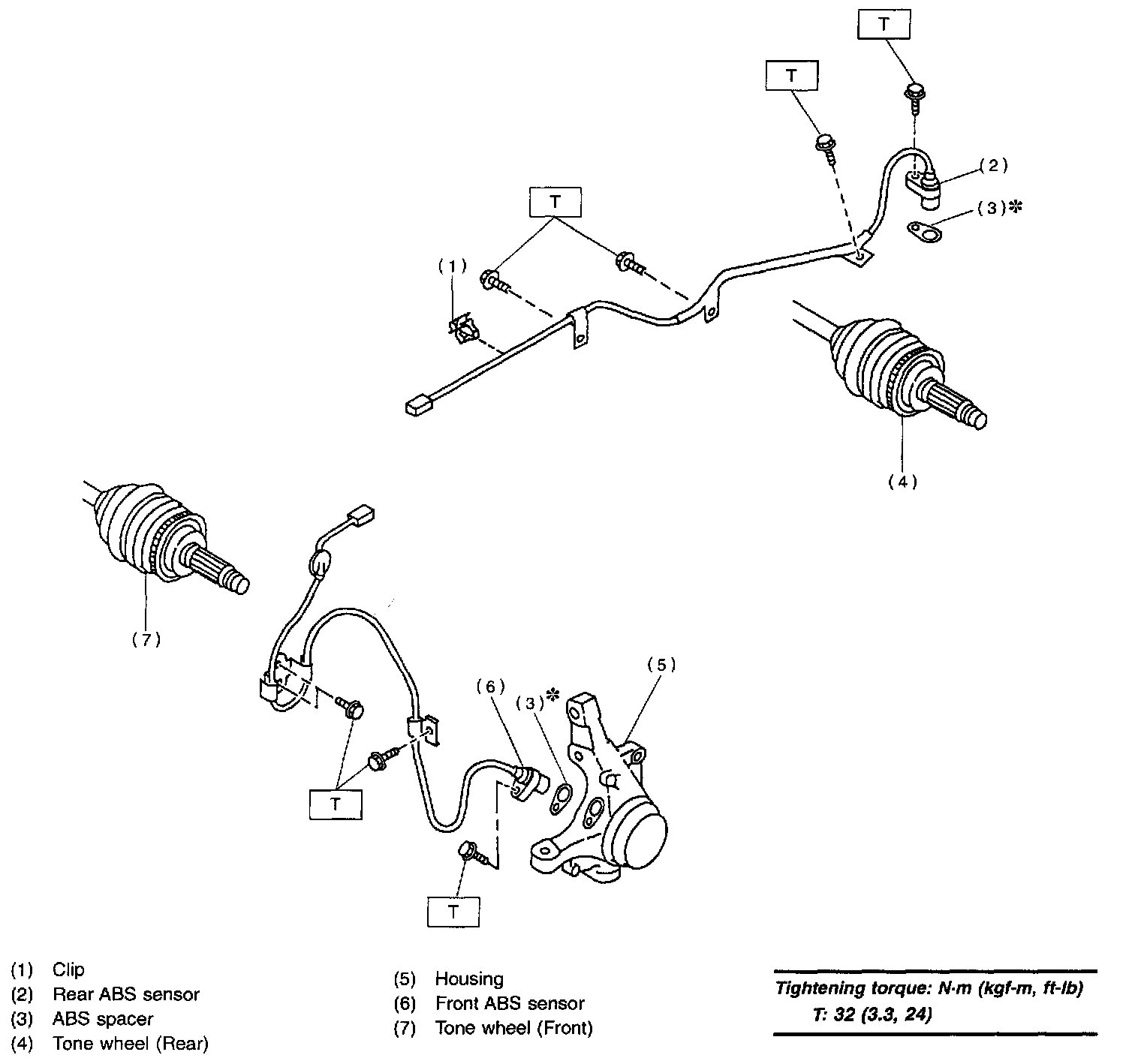

ABS SENSOR





YAW RATE AND LATERAL G SENSOR

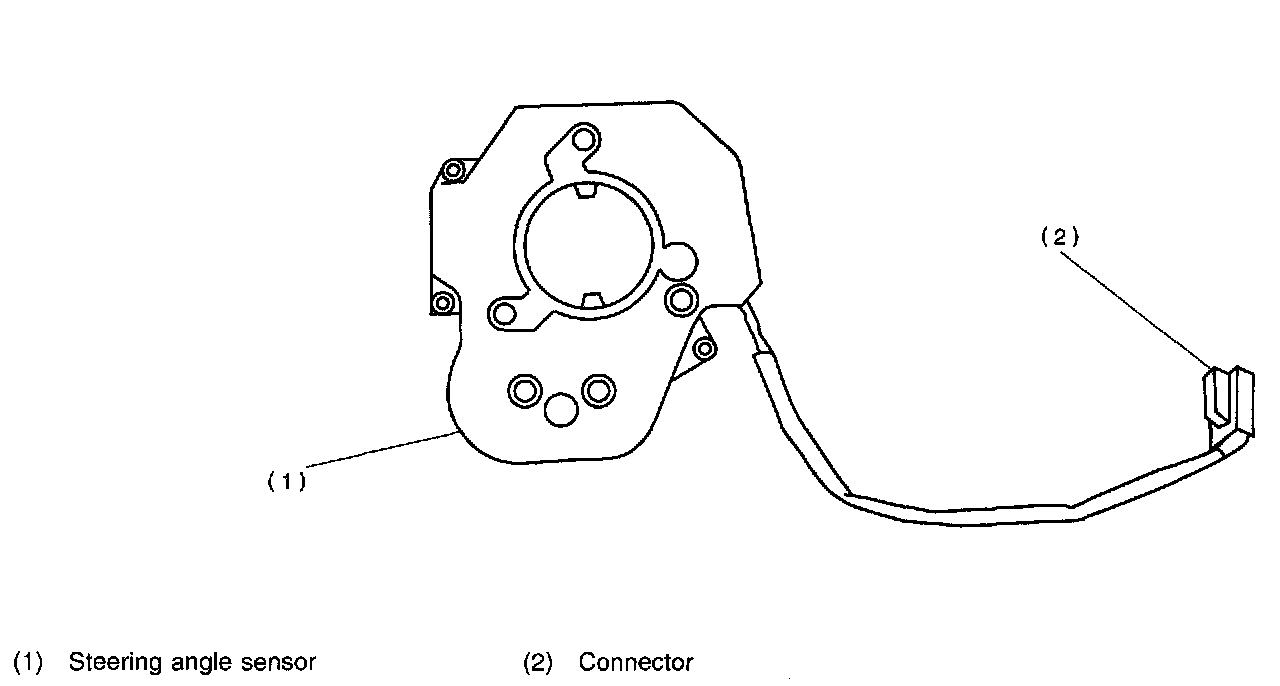

STEERING ANGLE SENSOR





VDC CONTROL MODULE (VDCCM)

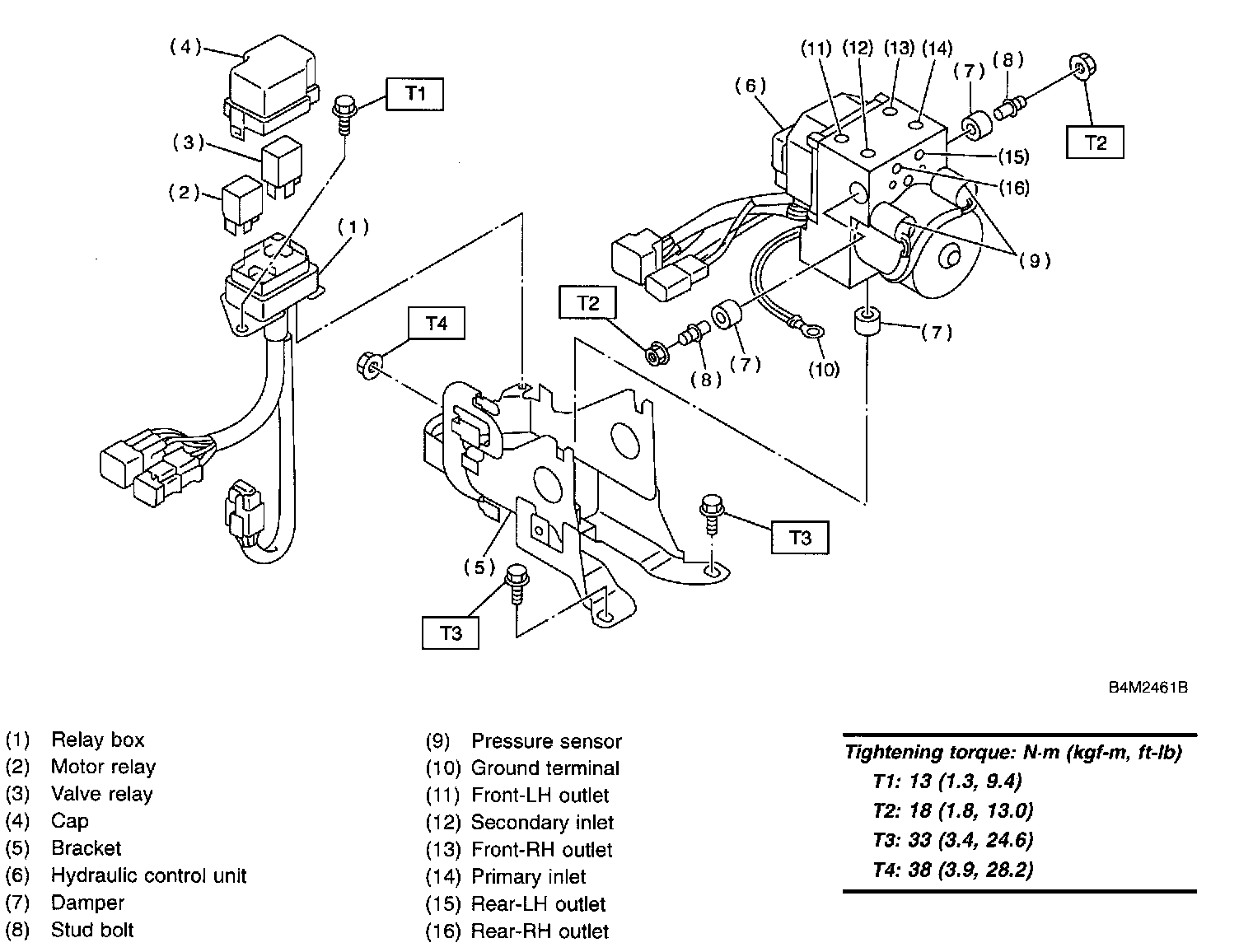

HYDRAULIC CONTROL UNIT (H/U)
