Front Door Window Regulator: Service and Repair

Front Regulator and Motor Assembly / REMOVAL
1. Remove door trim.
2. Remove sealing cover.
3. Remove door glass. Service and Repair>
4. Disconnect electrical connector.

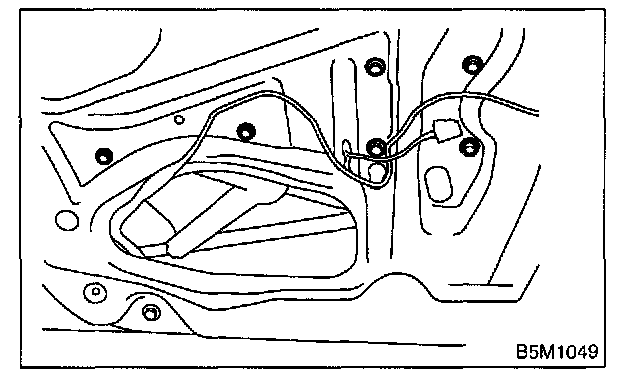

5. Loosen four bolts and two nuts to pull out regulator assembly.

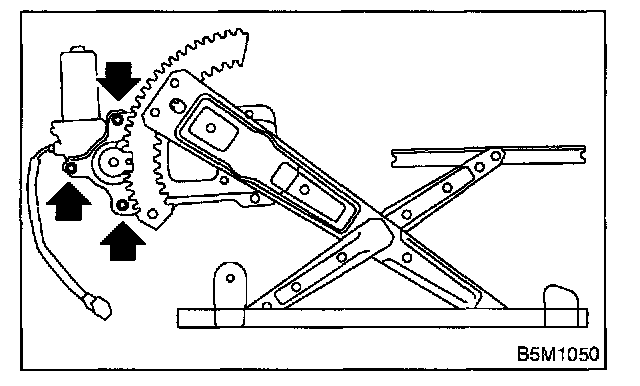

6. Loosen screws to remove motor assembly.

INSTALLATION
1. Install in the reverse order of removal.
2. Adjust front door glass. Adjustments>
