Home >> Subaru >> 2002 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

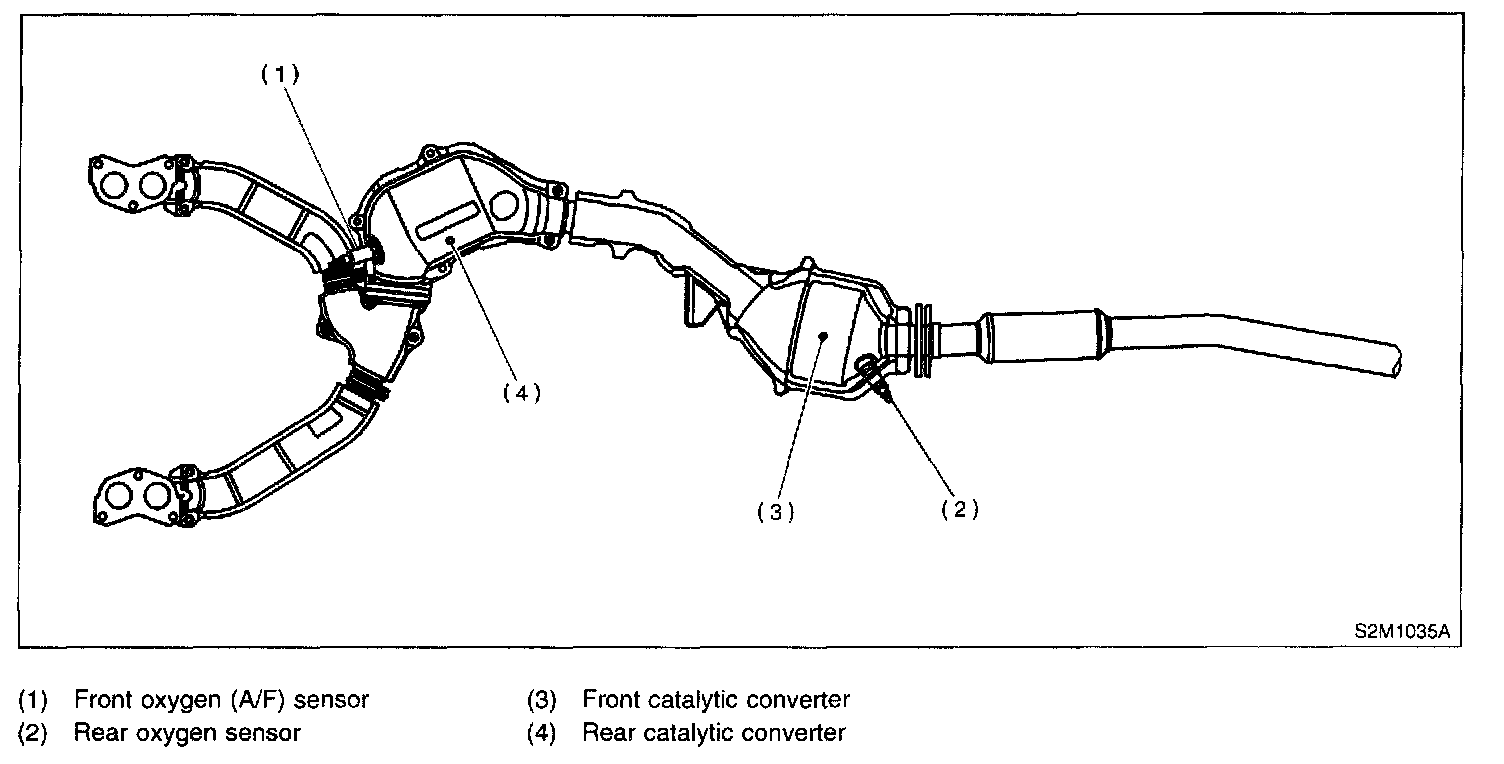

Schematic Diagrams Part 1:



Schematic Diagrams Part 2:

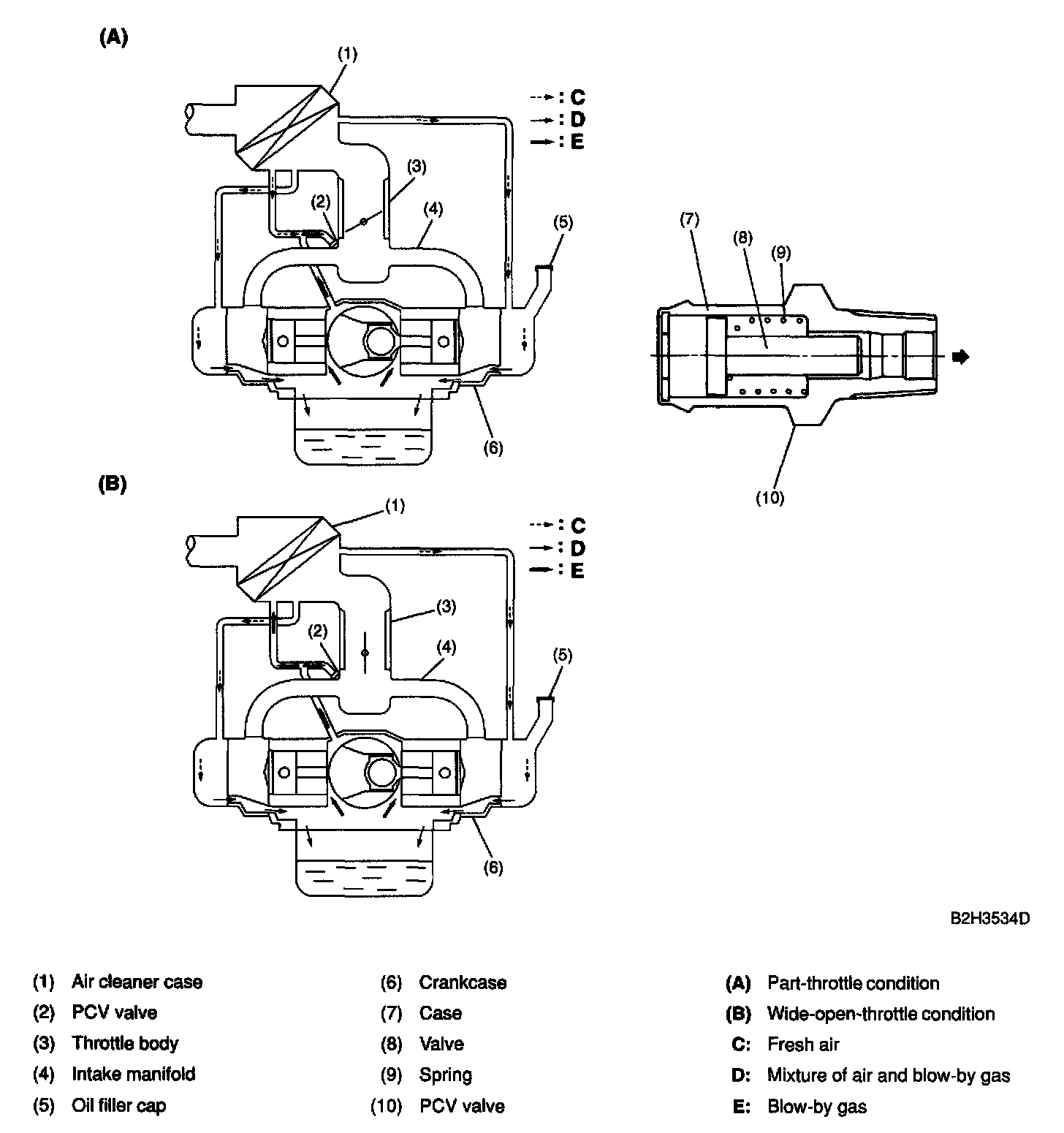

Crankcase Emission Control System:

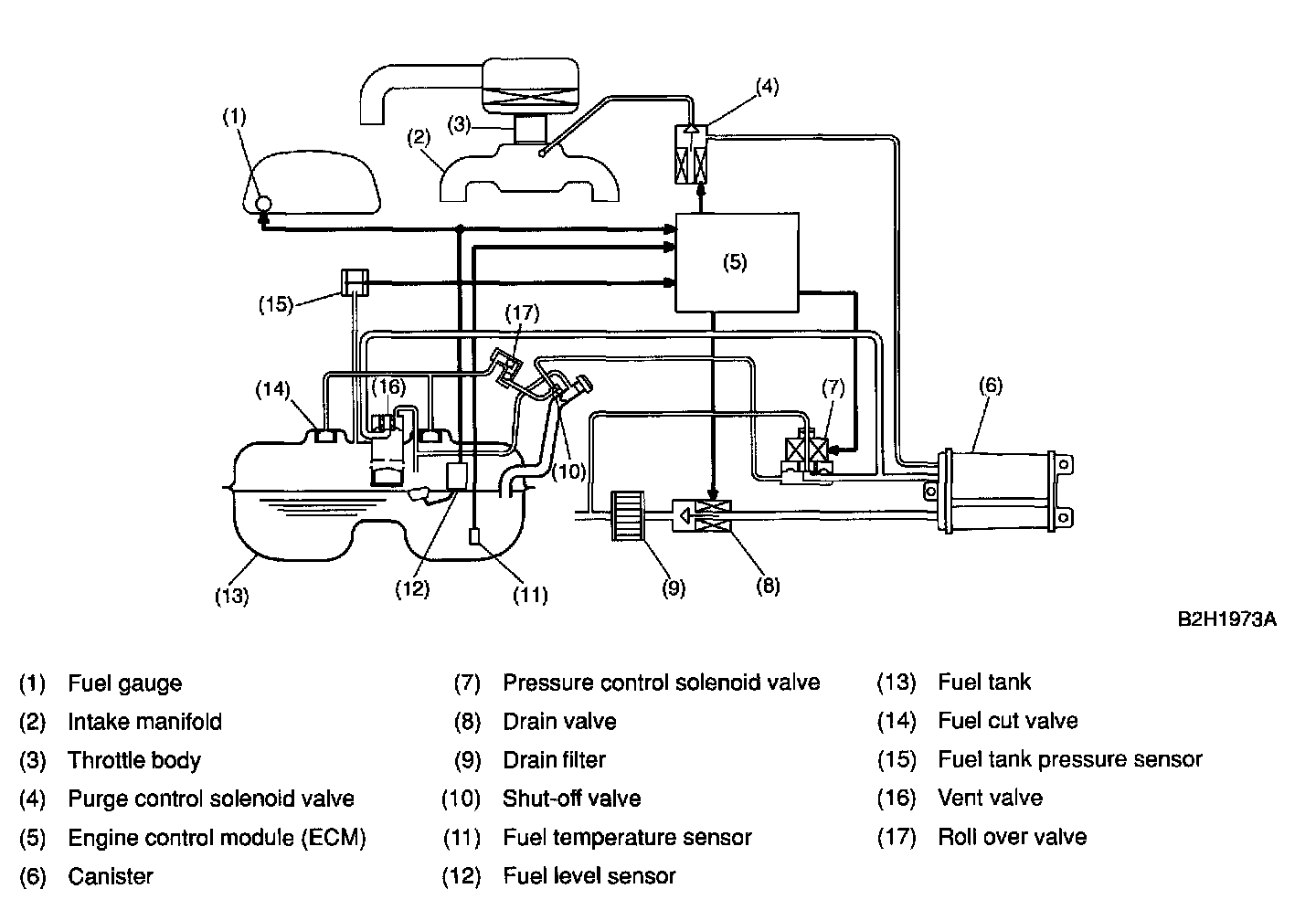

Evaporative Emission Control System:
