Combination Meter Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Set the tilt steering at lowest position.
Remove the screws and detach meter visor.

Fig 1: Removing Screws & Detaching Meter Visor
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws of combination meter and pull out the meter toward you.

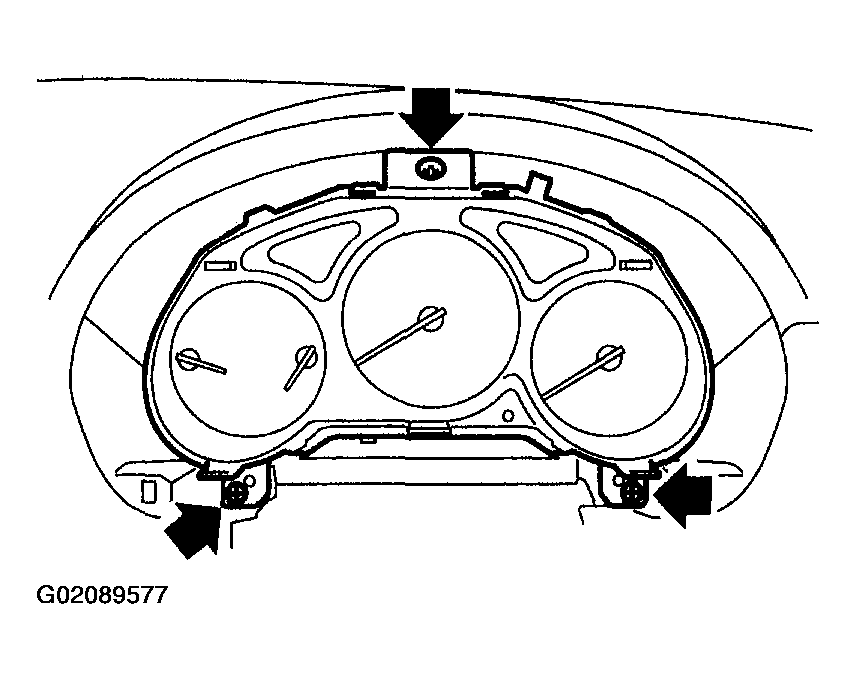

Fig 2: Removing Screws Of Combination Meter Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector in the upper area of combination meter to remove meter.

CAUTION:

Be careful not to damage the meter or instrument panel.
Pay particular attention to avoid damaging the meter glass.
