Front Differential: Installation

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential assembly to the case, paying special attention not to damage the inside of the case (particularly, the differential side retainer contact surface).

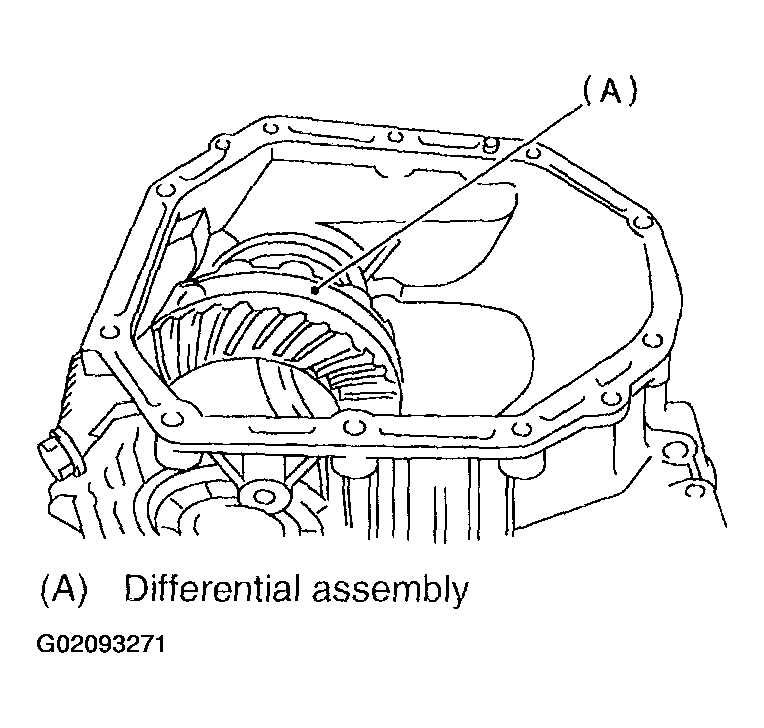

    Fig 1: Installing Differential Assembly To Case
    G02093271Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the O-rings from left and right side retainer.
  3. Using ST, install the side retainers. Refer to REMOVAL , Front Differential.
    1. ST 499787000 WRENCH ASSY
  4. Install the lock plate.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

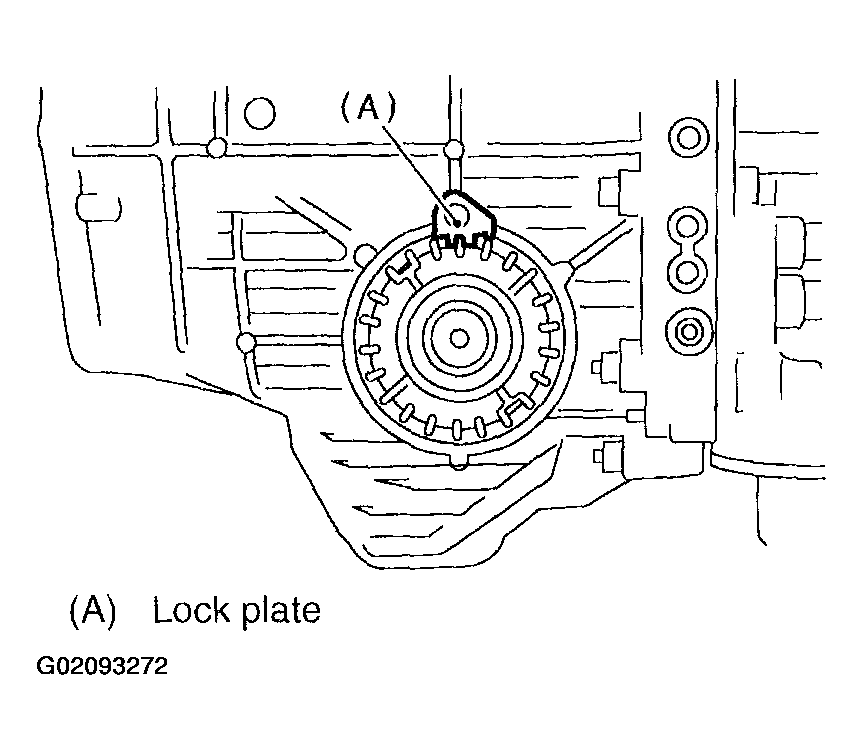

    Fig 2: Installing Lock Plate
    G02093272Courtesy of SUBARU OF AMERICA, INC.
  5. Install the new seal pipe to the torque converter clutch case.

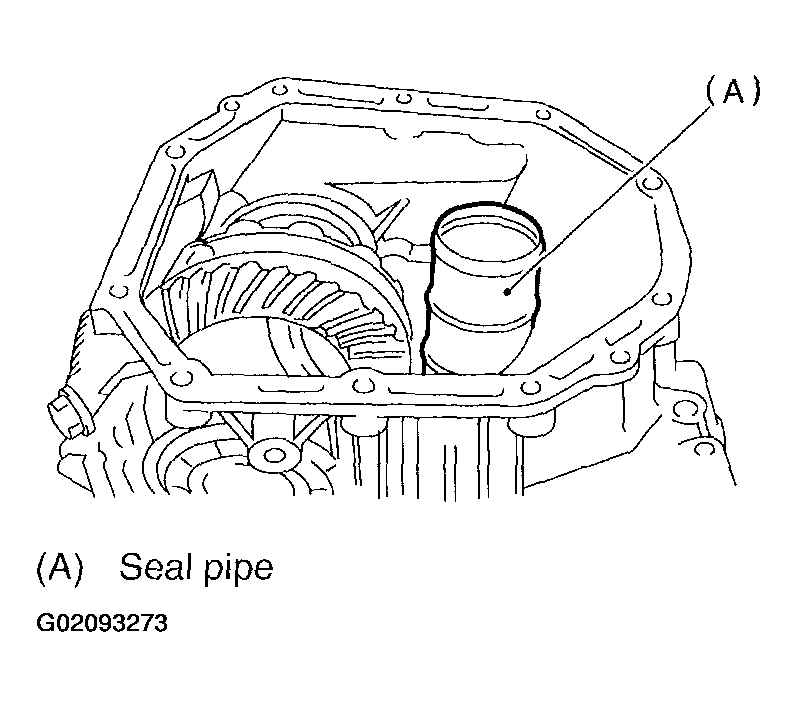

    Fig 3: Installing Seal Pipe To Torque Converter Clutch Case
    G02093273Courtesy of SUBARU OF AMERICA, INC.
  6. Install the torque converter clutch case to transmission case. Refer to INSTALLATION , Torque Converter Clutch Case.
  7. Install air breather hose.
  8. Insert inhibitor switch and transmission connector into stay.

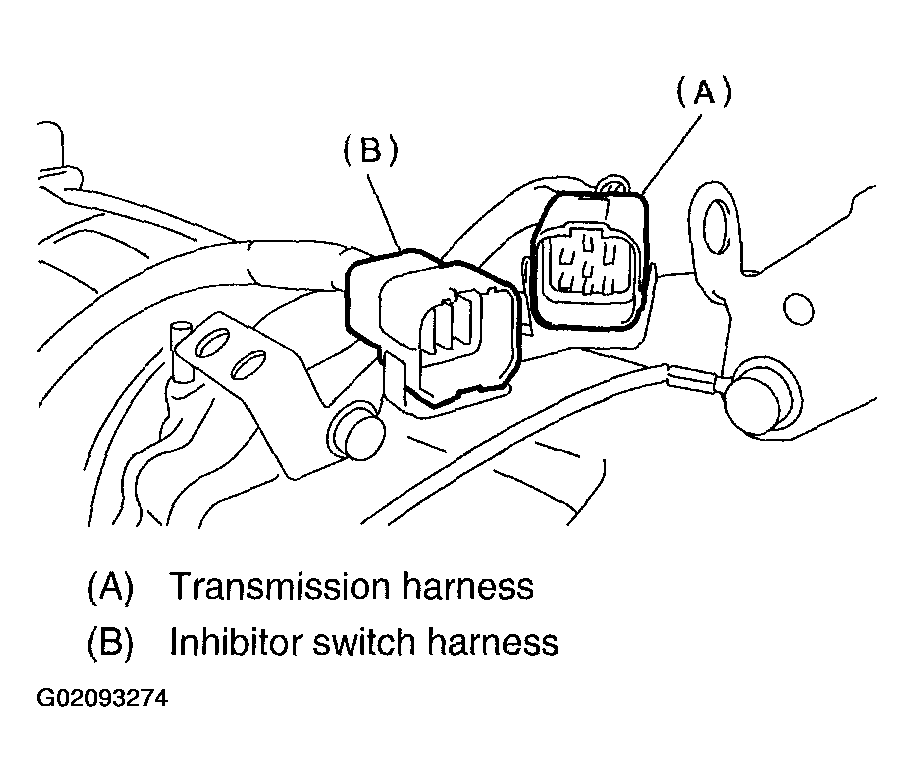

    Fig 4: Inserting Inhibitor Switch & Transmission Connector Into Stay
    G02093274Courtesy of SUBARU OF AMERICA, INC.
  9. Install oil cooler pipes. Refer to INSTALLATION , ATF Cooler Pipe and Hose.
  10. Install the oil charger pipe with O-ring. Refer to INSTALLATION , Oil Charger Pipe.
  11. Insert the input shaft while turning lightly by hand. At this time, not to damage the bushing.
    1. Normal protrusion A:  50 - 55 mm (1.97 - 2.17 in)

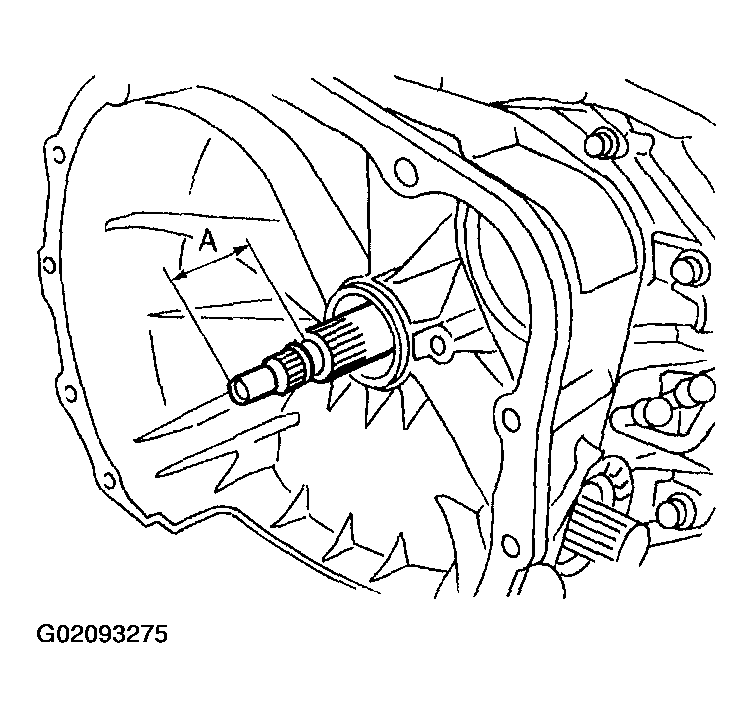

    Fig 5: Inserting Input Shaft
    G02093275Courtesy of SUBARU OF AMERICA, INC.
  12. Install the torque converter clutch assembly. Refer to INSTALLATION , Torque Converter Clutch Assembly.
  13. Install the transmission assembly to the vehicle. Refer to INSTALLATION , Automatic Transmission Assembly.
