Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs Diagnostics >> Diagnostics Procedure with Subaru Select Monitor >> Communication For Initializing Impossible >> Diagnostic Procedures:

Diagnostic Procedures:

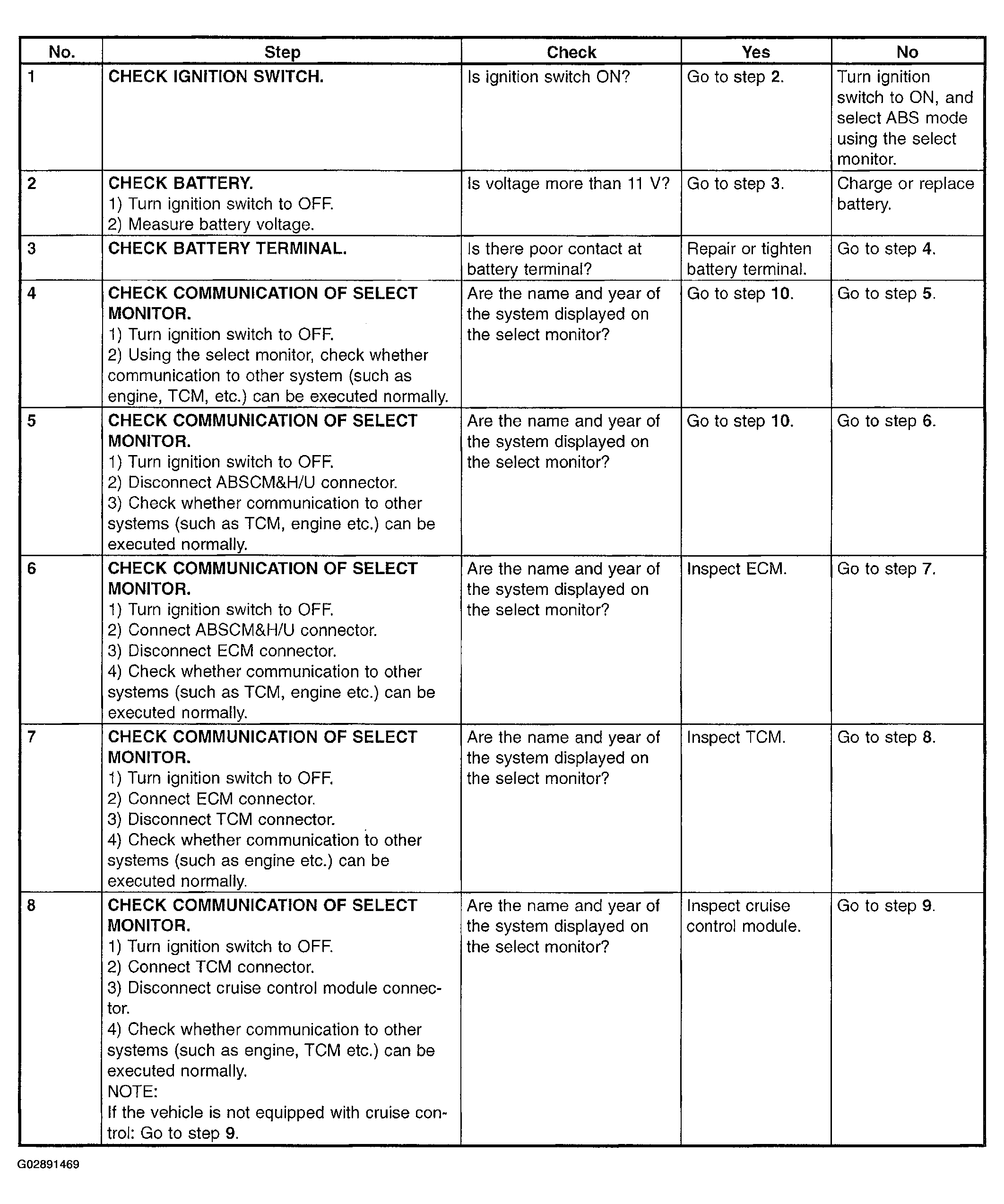

Fig 1: Communication For Initializing Impossible Diagnostic Procedure Chart (1 Of 2)
G02891469Courtesy of SUBARU OF AMERICA, INC.

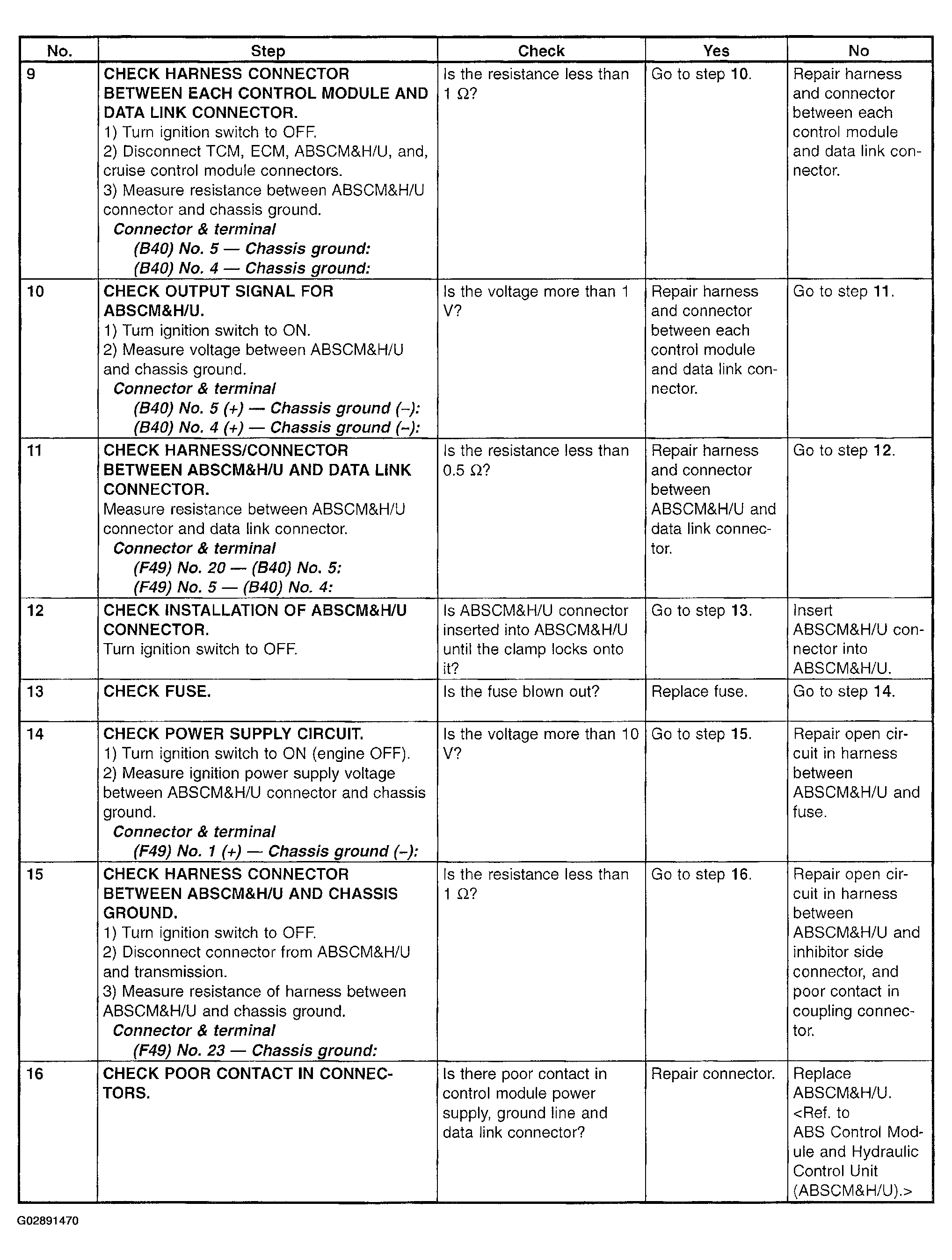

Fig 2: Communication For Initializing Impossible Diagnostic Procedure (2 Of 2)
G02891470Courtesy of SUBARU OF AMERICA, INC.
