Security Indicator Light Circuit Test

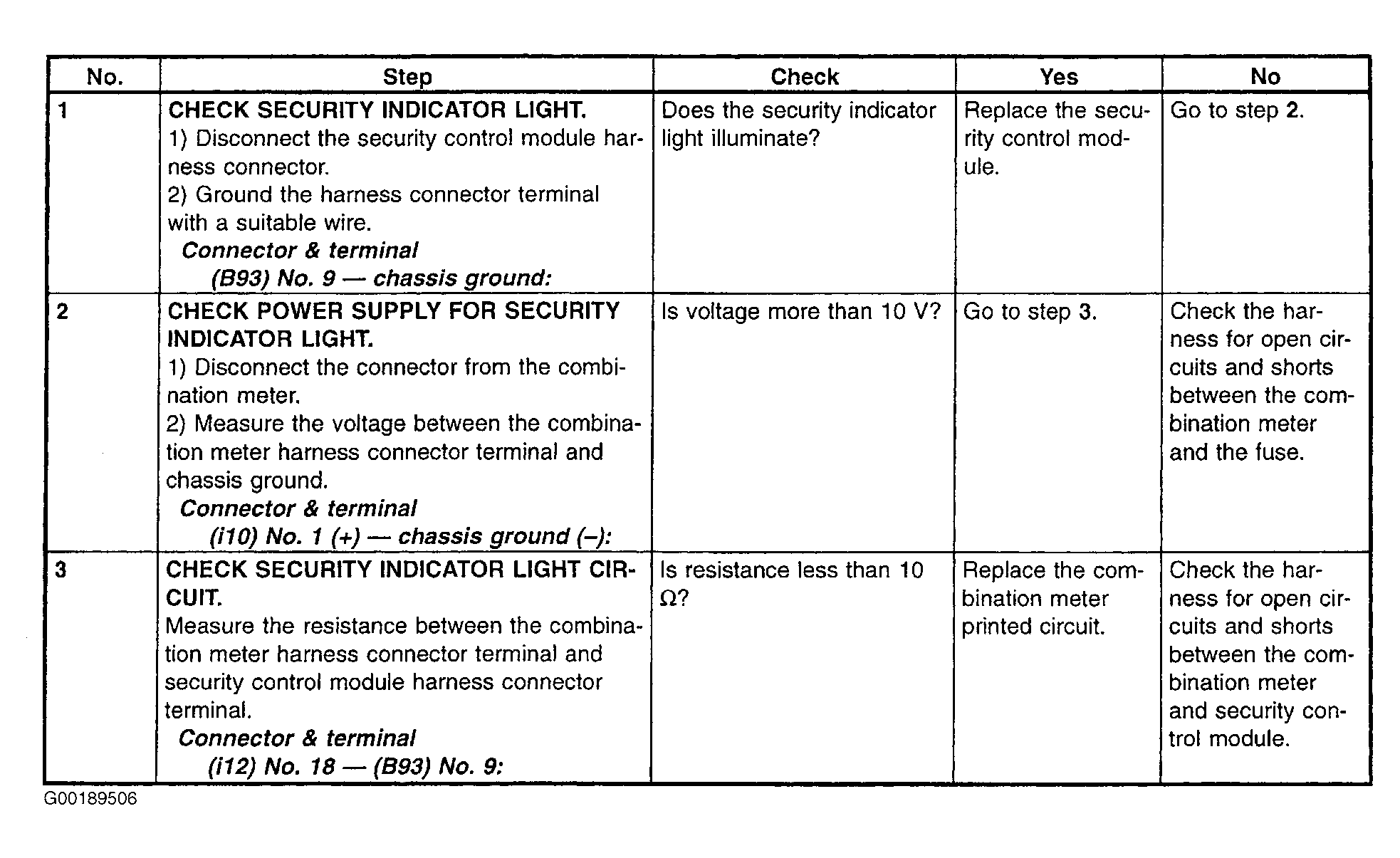

Fig 1: Security Indicator Light Circuit Testing Procedure

G00189506

Courtesy of SUBARU OF AMERICA, INC.
