Door Switch Test
Door Switch Test

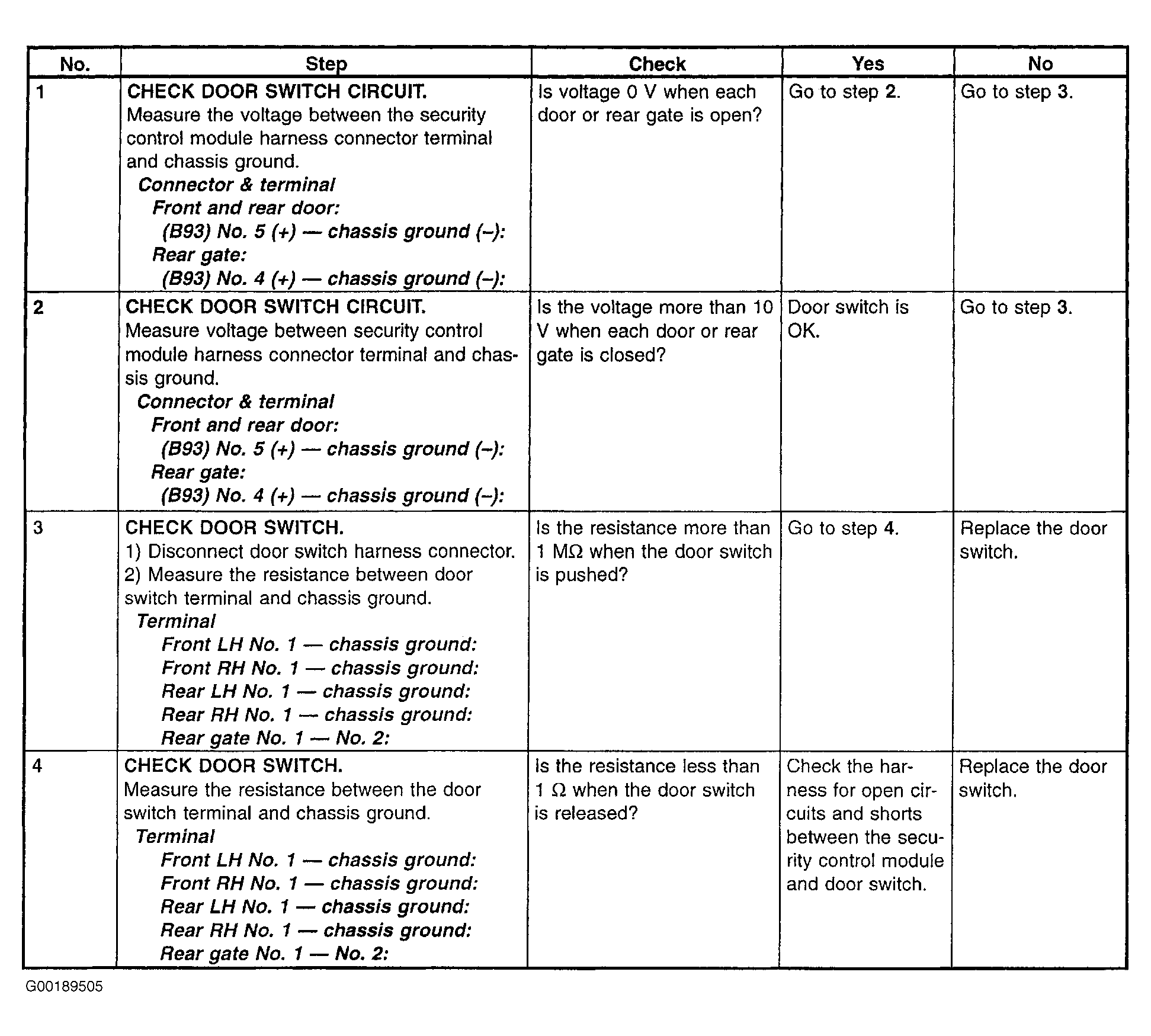

Fig 1: Door Switch Testing Procedure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
