Reverse Check Sleeve: Assembly

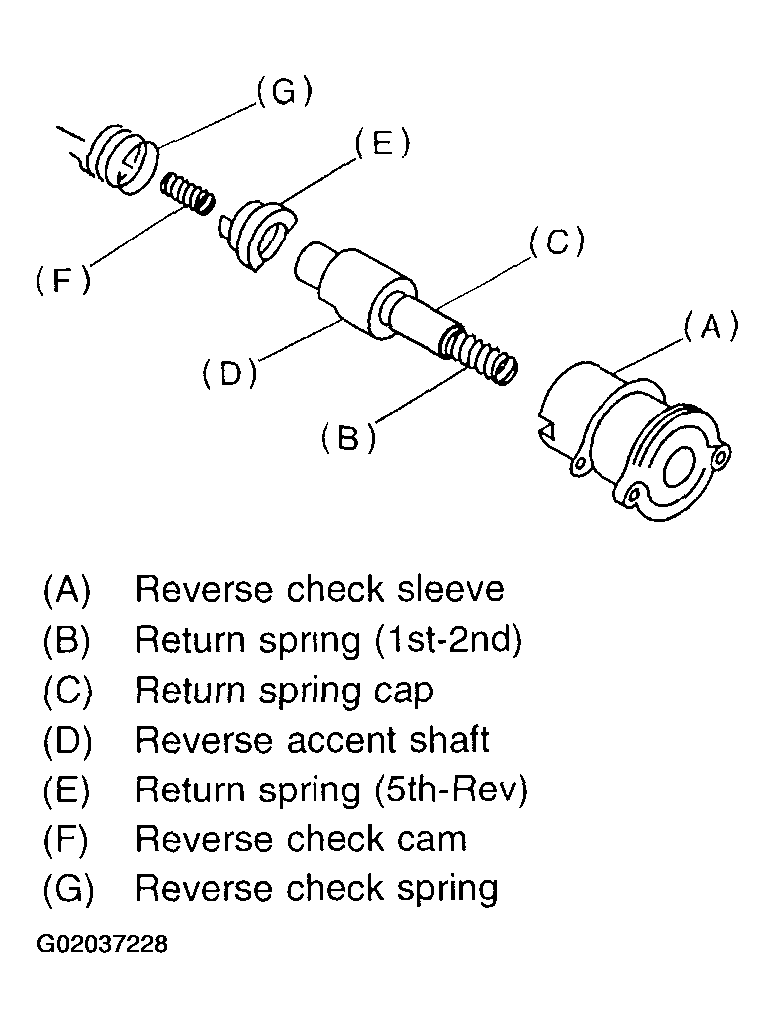

- Install return spring (1st-2nd), return spring cap, reverse accent shaft, check cam, return spring and check spring onto reverse check sleeve.NOTE: Be sure the bent section of reverse check spring is positioned in the groove in check cam.
- Hook the bent section of reverse check spring over reverse check plate.
- Rotate cam so that the protrusion of reverse check cam is at the opening in plate.
- With cam held in that position, install plate onto reverse check sleeve and hold with snap ring.
- Position O-ring in groove in sleeve.
