Clutch Pedal

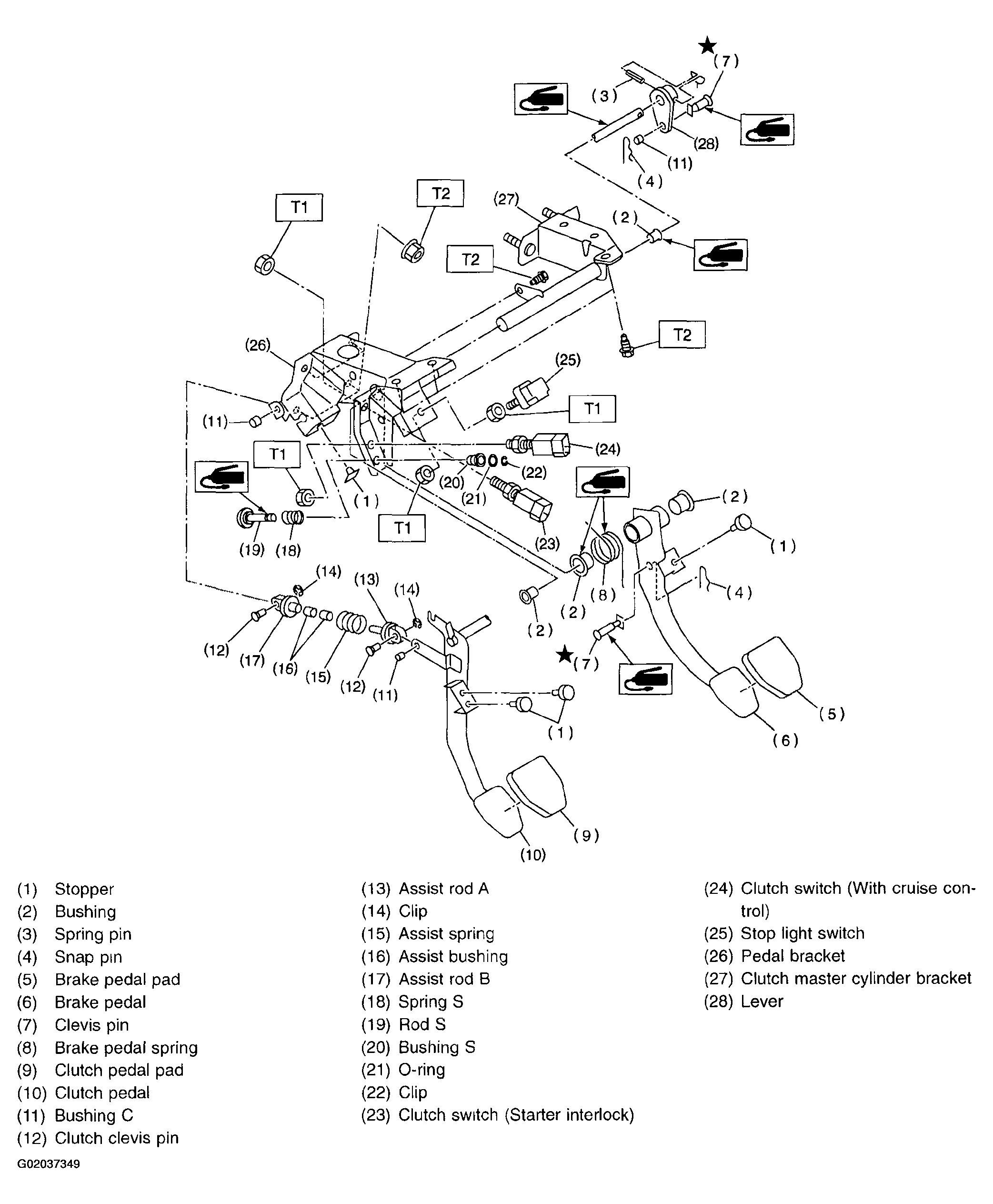

Fig 1: Exploded View Of Clutch Pedal
G02037349

Tightening torque: N-m (kgf-m, ft-lb)

  1. T1:  8 (0.8, 5.8)
  2. T2:  18 (1.8, 13.0)
