Control Valve Body: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Set the range select lever in "N" range.
Install the control valve, ATF temperature sensor and ground connectors.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

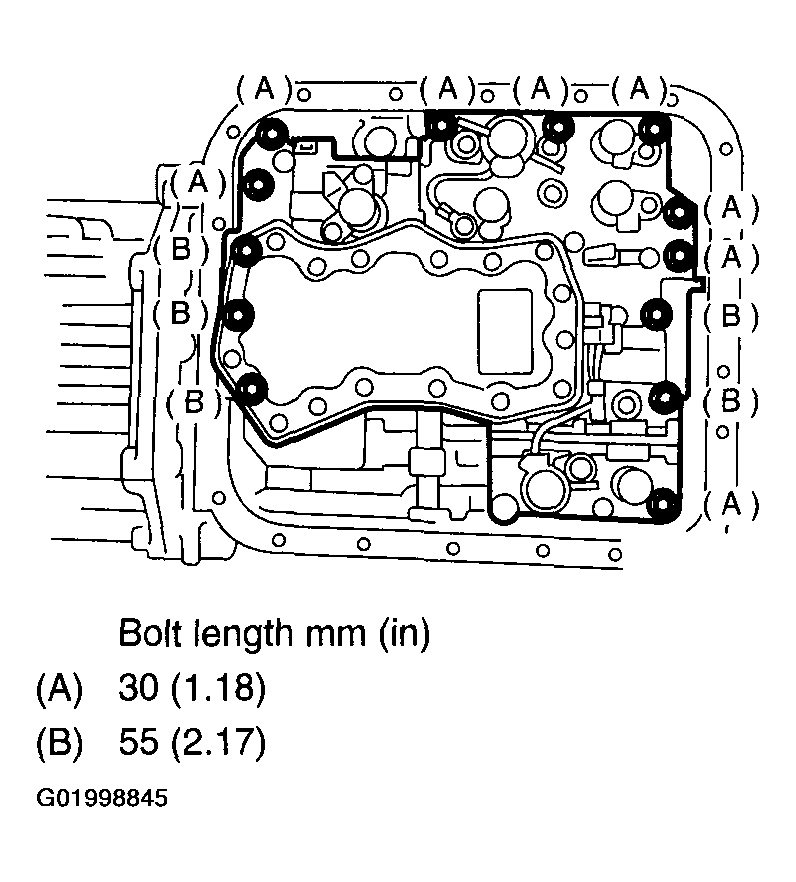

Fig 1: Installing Control Valve Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect all connectors.

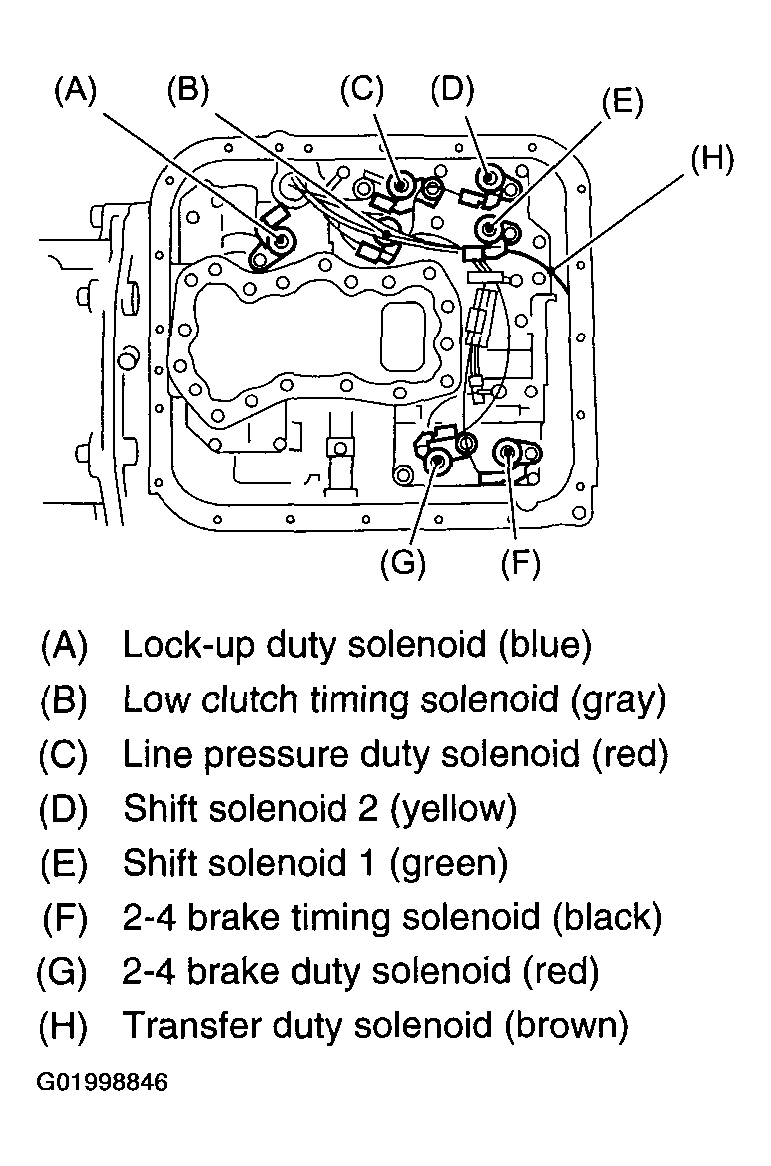

Fig 2: Connect All Connectors
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at specified position.

Fig 3: Attaching Magnet At Specified Position
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
1. Liquid gasket: Three Bond 1217B (Part No.K0877YA020)

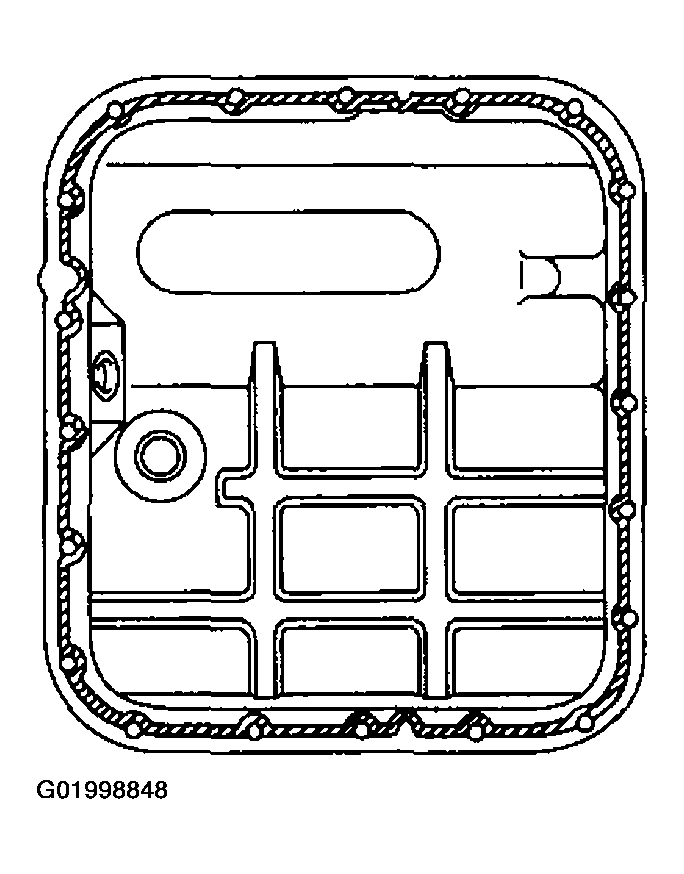

Fig 4: Applying Liquid Gasket To Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Apply a plenty amount of liquid gasket to three holes other than screw holes on transmission case.
1. Liquid gasket: Three Bond 1217B (Part No.K0877YA020)

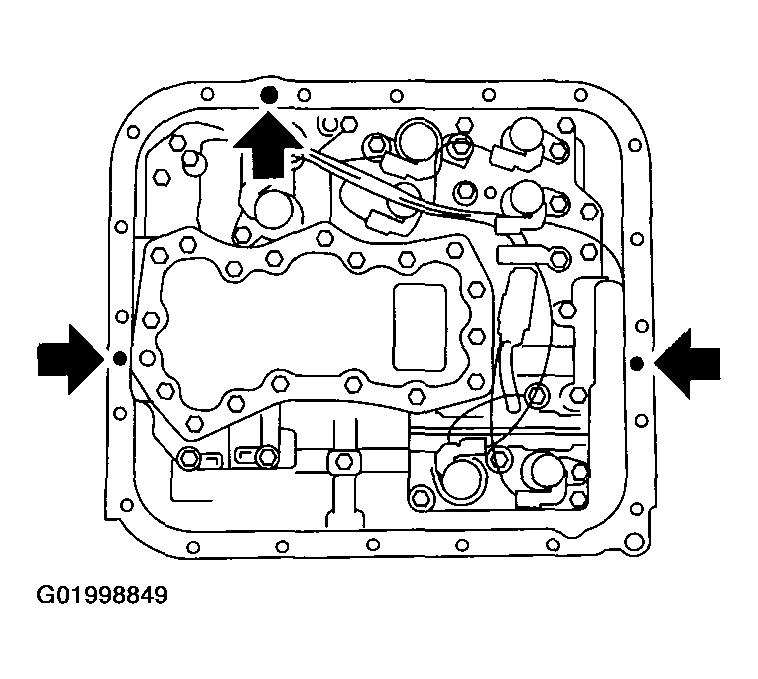

Fig 5: Applying Liquid Gasket To Three Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan.
1. Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe. See ATF .
Check the level of ATF.
See ATF .
