Operating Cylinder: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
NOTE: Before installing the operating cylinder, apply grease (SUNLIGHT 2: Part No. 003602010) to contact point of the release lever and operating cylinder.
- NON-TURBO MODEL
  Tightening torque:

  T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

  T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)

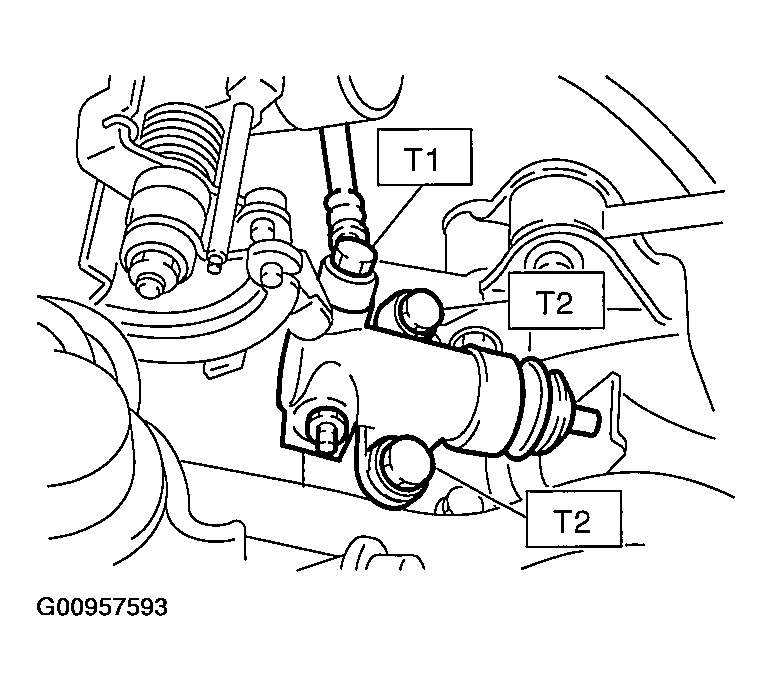

  Fig 1: Installing Operating Cylinder To Transmission - Non-Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL (5MT)
  Tightening torque:

  T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

  T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)

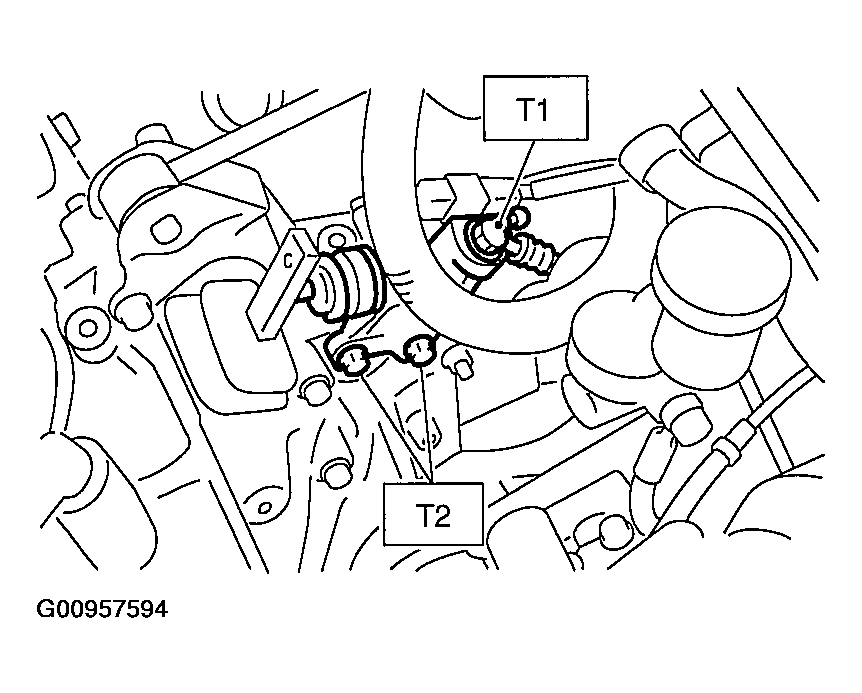

  Fig 2: Installing Operating Cylinder To Transmission - Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL (6MT)
  Tightening torque:

  T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

  T2: 41 N.m (4.2 kgf-m, 30.2 ft-lb)

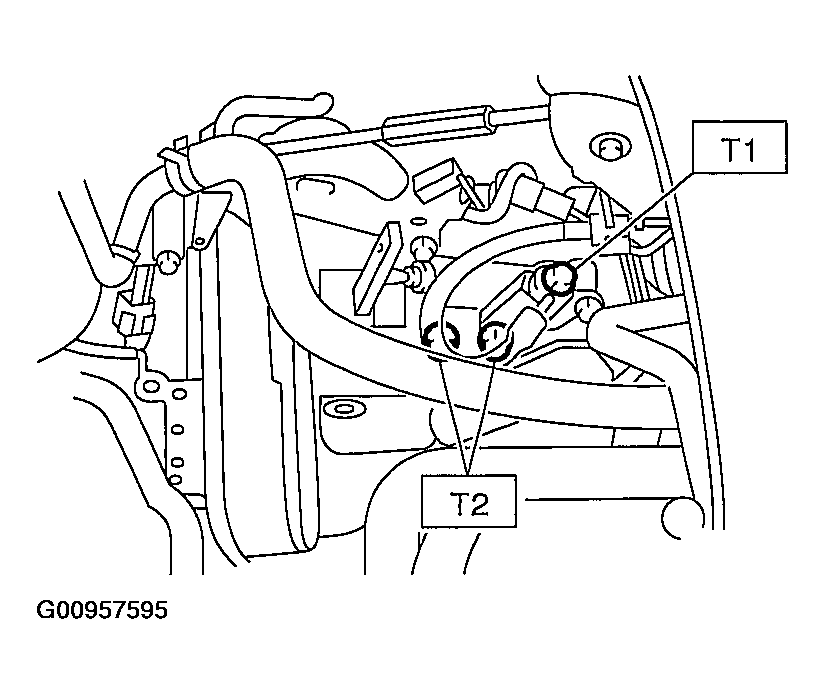

  Fig 3: Installing Operating Cylinder To Transmission - Turbo Model (6MT)
  Courtesy of SUBARU OF AMERICA, INC.
  NOTE:
  - Be sure to install the clutch hose with the mark side facing upward.
  - Be careful not to twist the clutch hose during installation.
  Fig 4: Installing Clutch Hose With Mark Side Facing Upward
  Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that clutch operates properly.
< Ref. to CLUTCH FLUID AIR BLEEDING .>
