Transmission Control Module (TCM): Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.

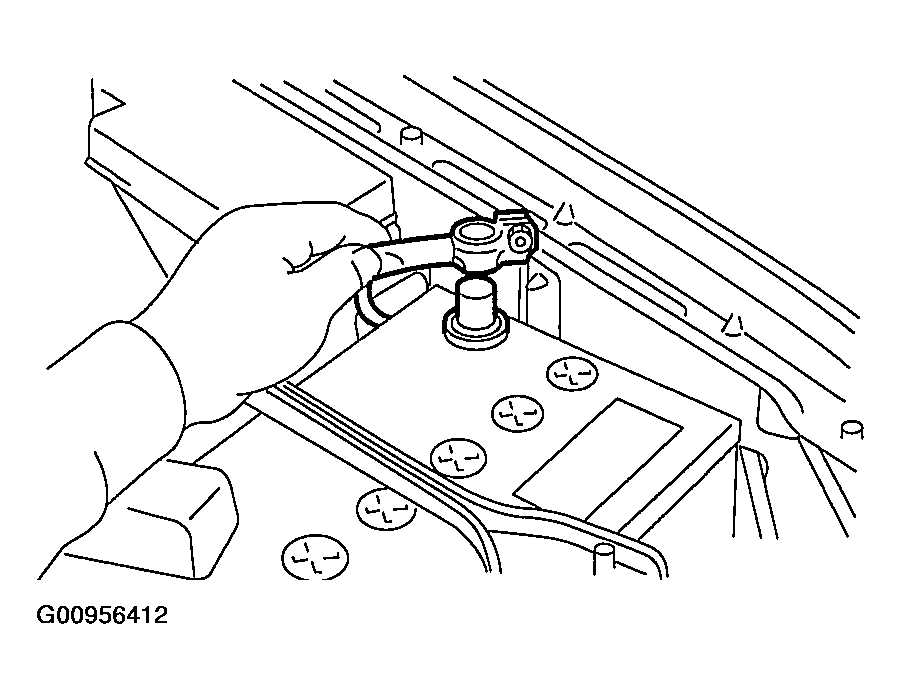

    Fig 1: Disconnecting Ground Cable From Battery
    G00956412Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lower cover and then disconnect the connector.
  3. Remove the knee bolster.

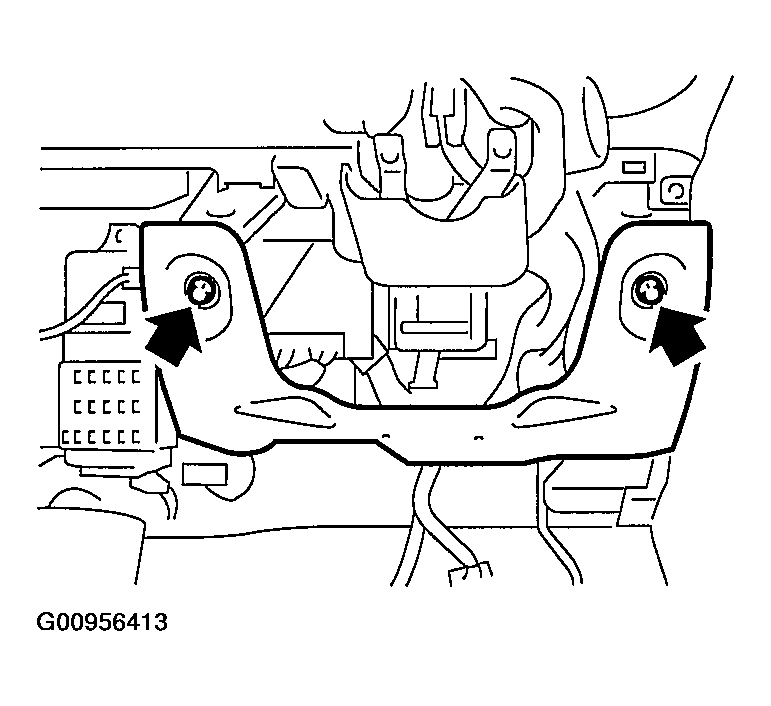

    Fig 2: Removing Knee Bolster
    G00956413Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connectors from TCM.

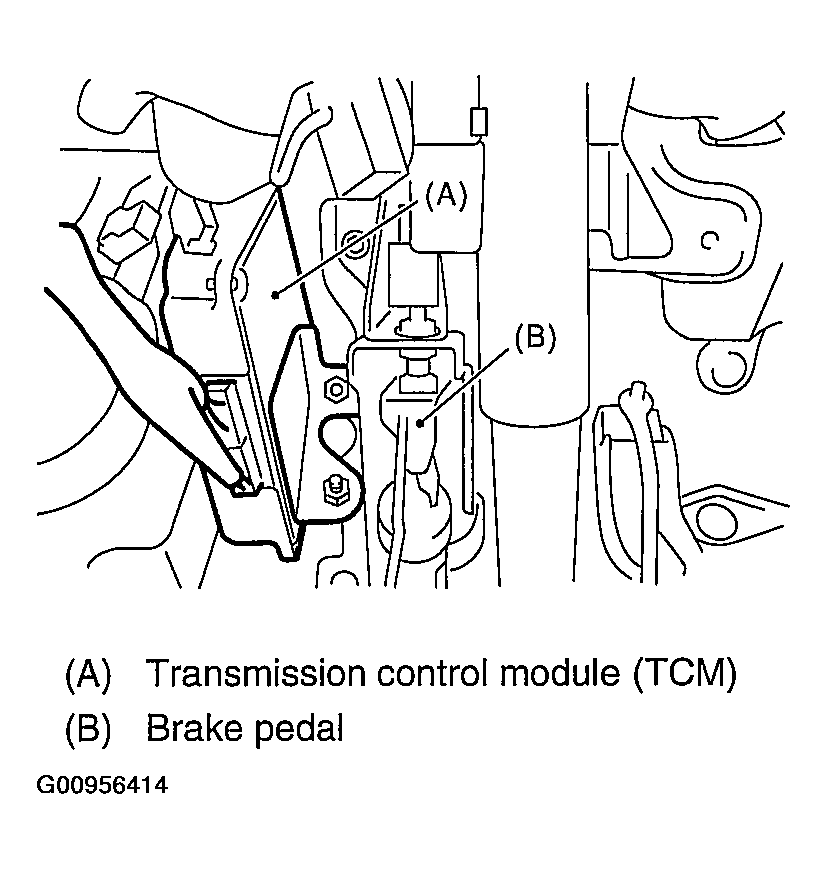

    Fig 3: Disconnecting Connectors From TCM
    G00956414Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the TCM.
