Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install the TCM.
Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

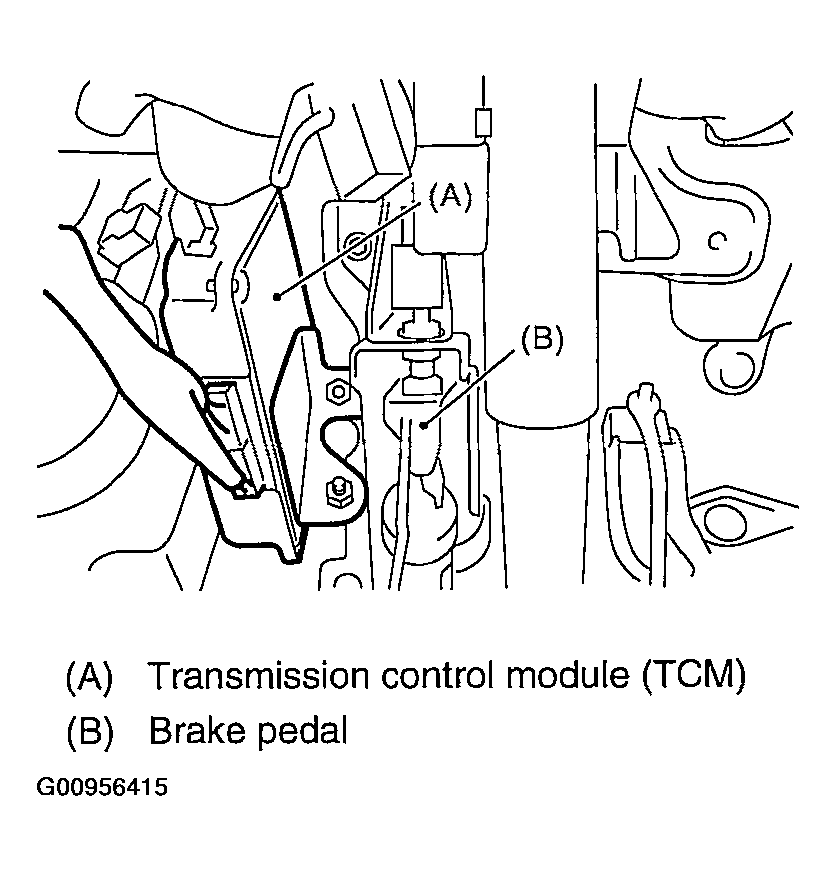

Fig 1: Installing TCM
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to TCM.
Install in the reverse order of removal.
