MPT Model

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

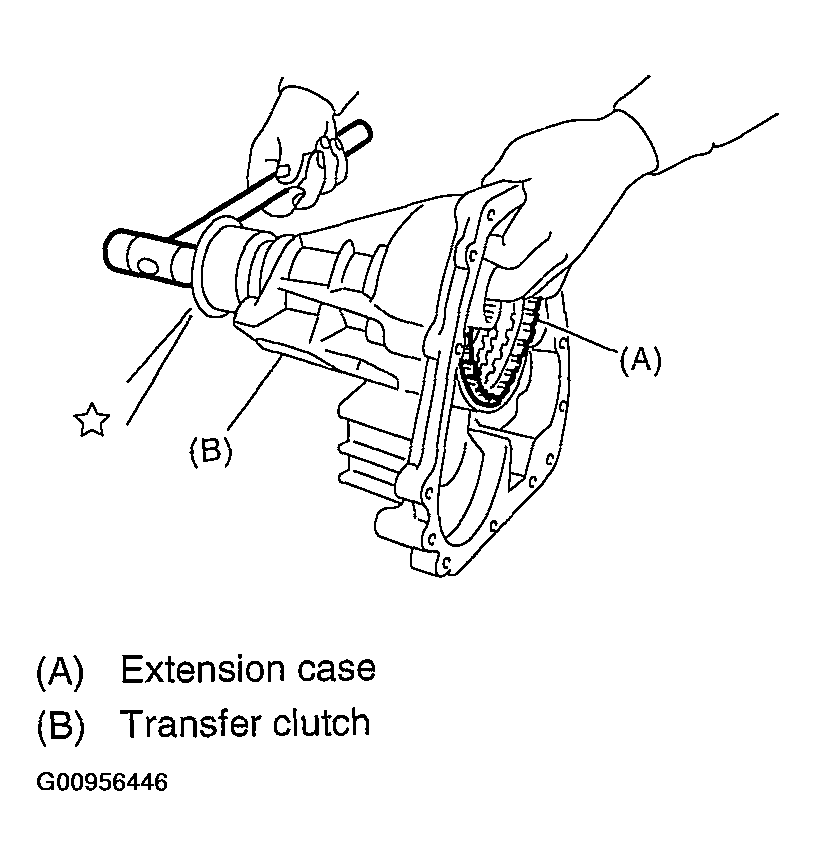

Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
NOTE: Be careful not to damage the oil seal in the extension.

Fig 1: Removing Transfer Clutch
Courtesy of SUBARU OF AMERICA, INC.

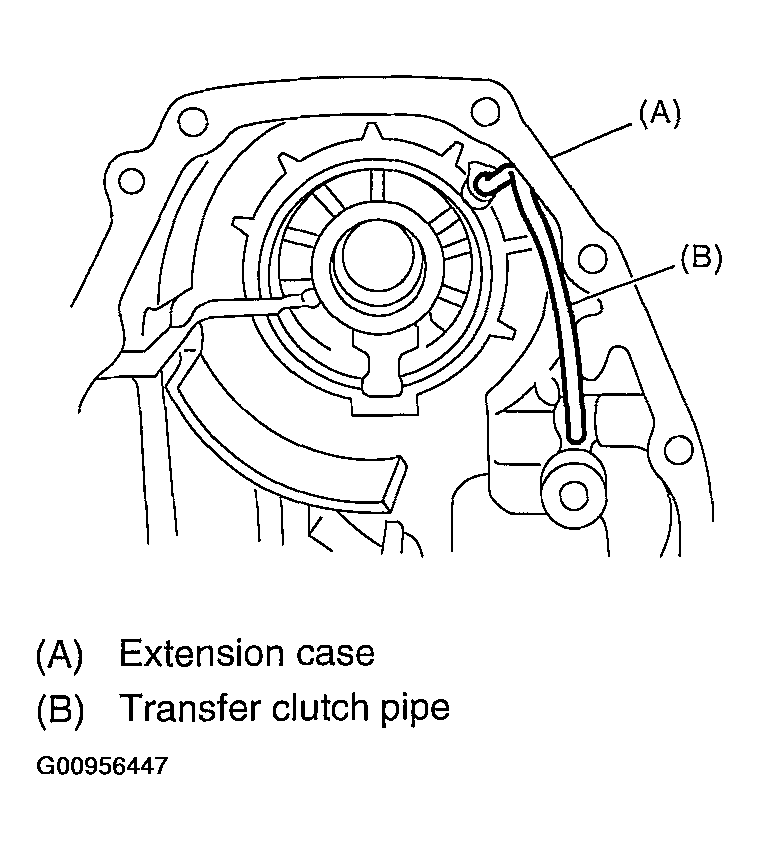

Remove the transmission clutch pipe without bending pipe.

Fig 2: Removing Transmission Clutch Pipe Without Bending Pipe
Courtesy of SUBARU OF AMERICA, INC.
