Control Unit: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery.
Remove the glove box. See REMOVAL , Glove Box.
Remove the lower panel. See REMOVAL , Instrument Panel Assembly.
Remove the control wires.

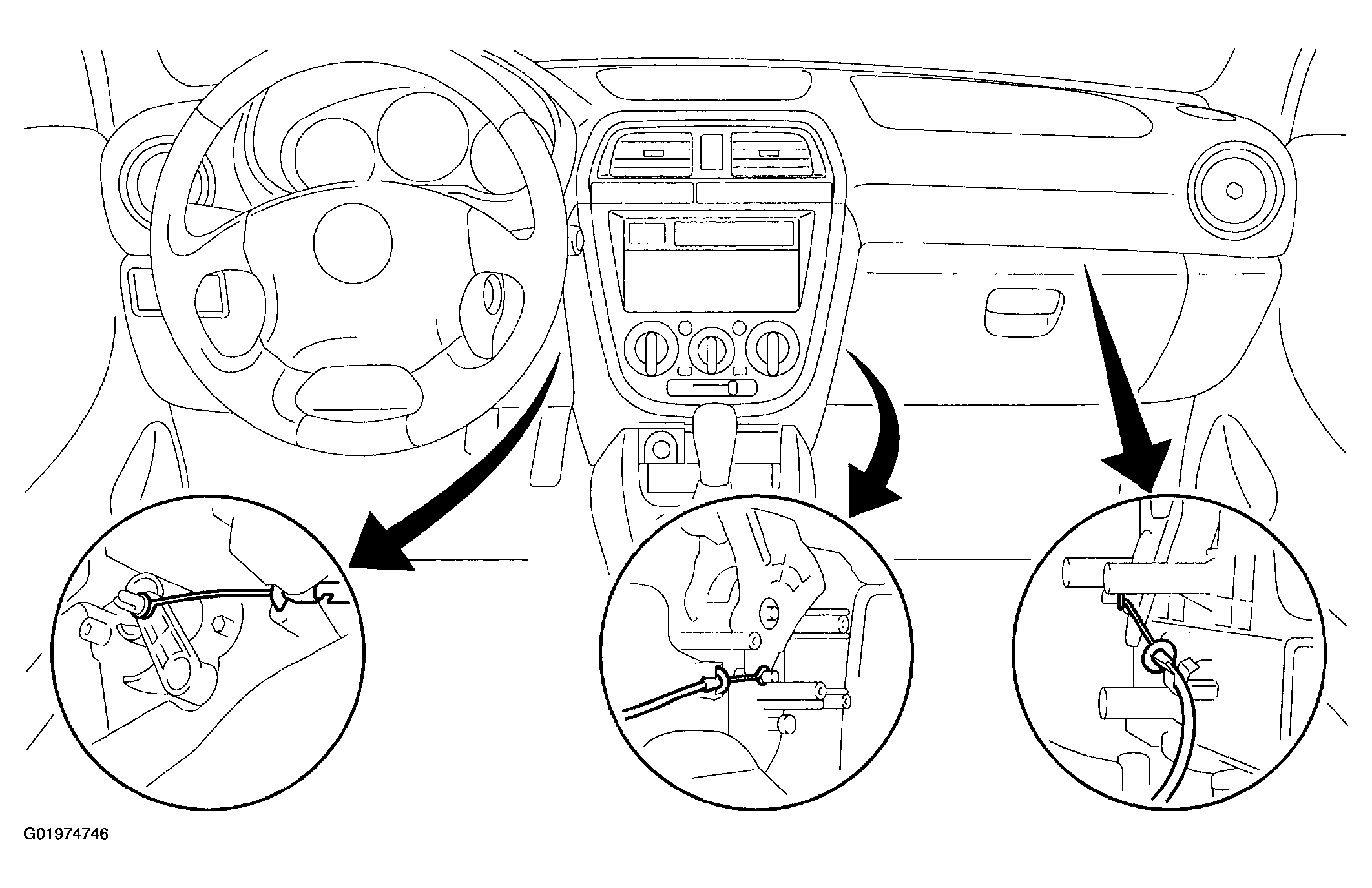

Fig 1: Removing Control Wires
Courtesy of SUBARU OF AMERICA, INC.
Remove the center console panel.

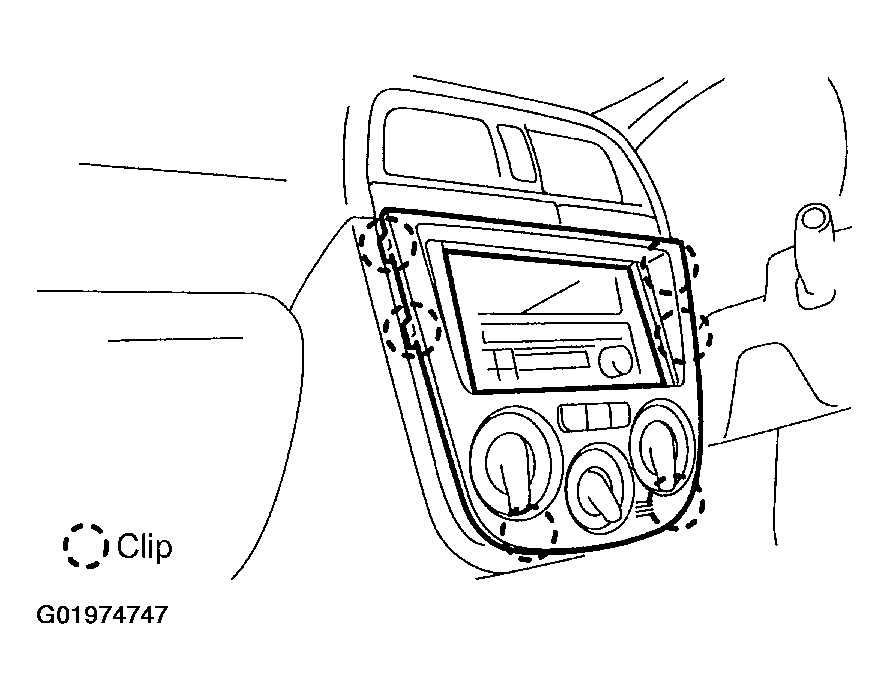

Fig 2: Removing Center Console Panel
Courtesy of SUBARU OF AMERICA, INC.
Remove four screws.

Fig 3: Removing Four Screws
Courtesy of SUBARU OF AMERICA, INC.
Pull out the control unit and disconnect connectors.
