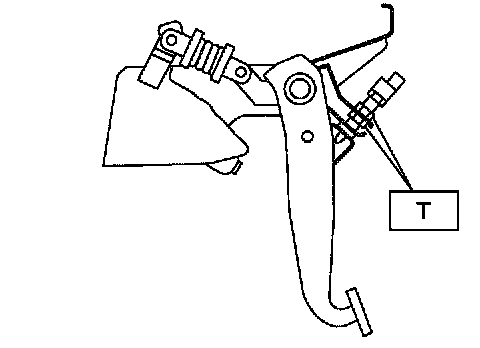

Clutch Switch: Service and Repair

A: REMOVAL
1. Remove battery ground terminal.
2. Disconnect connector from clutch switch.
3. Remove clutch switch.

B: INSTALLATION





Install in the reverse order of removal.
Tightening torque:
T: 8 Nm (0.8 kgf-m, 5.8 ft. lbs.)
