Legacy Outback LL Bean Ed. AWD F6-3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters
A: ELECTRICAL SPECIFICATION

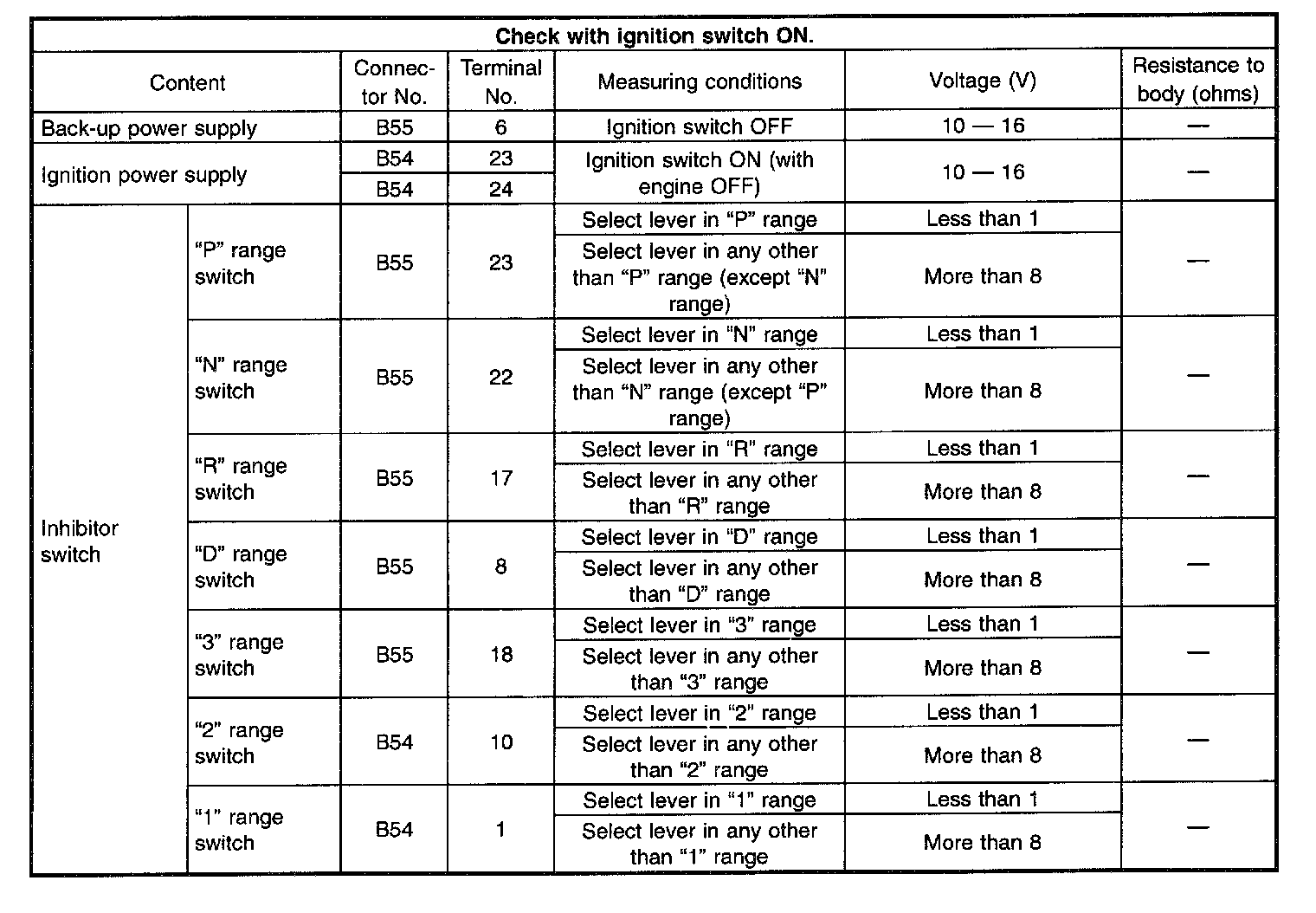

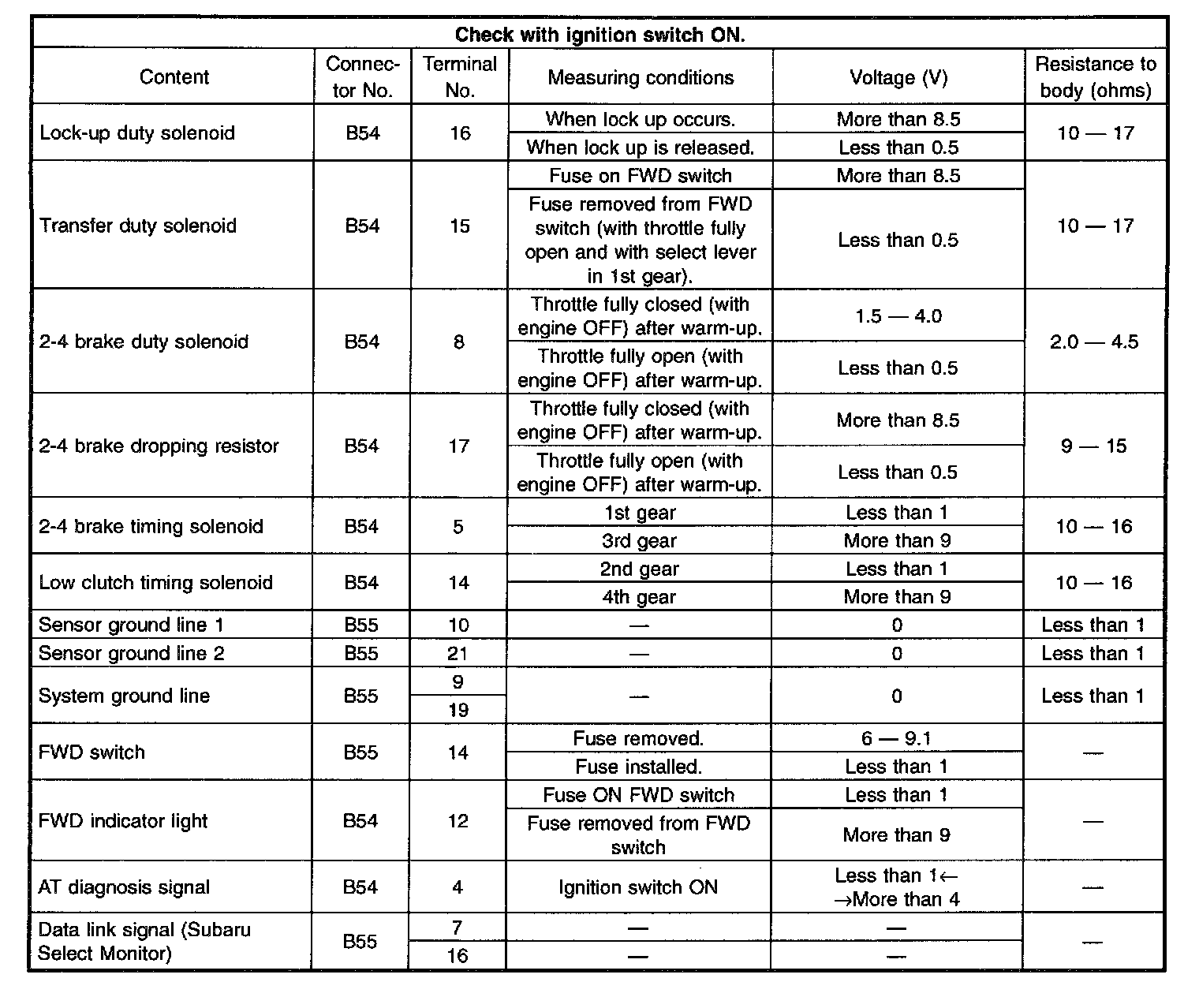

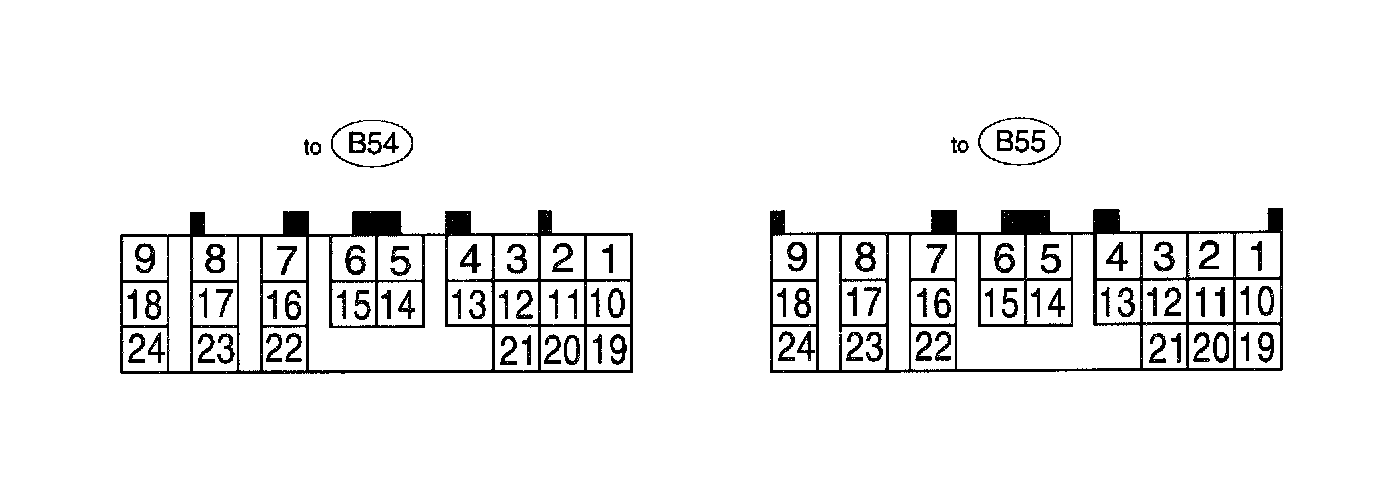

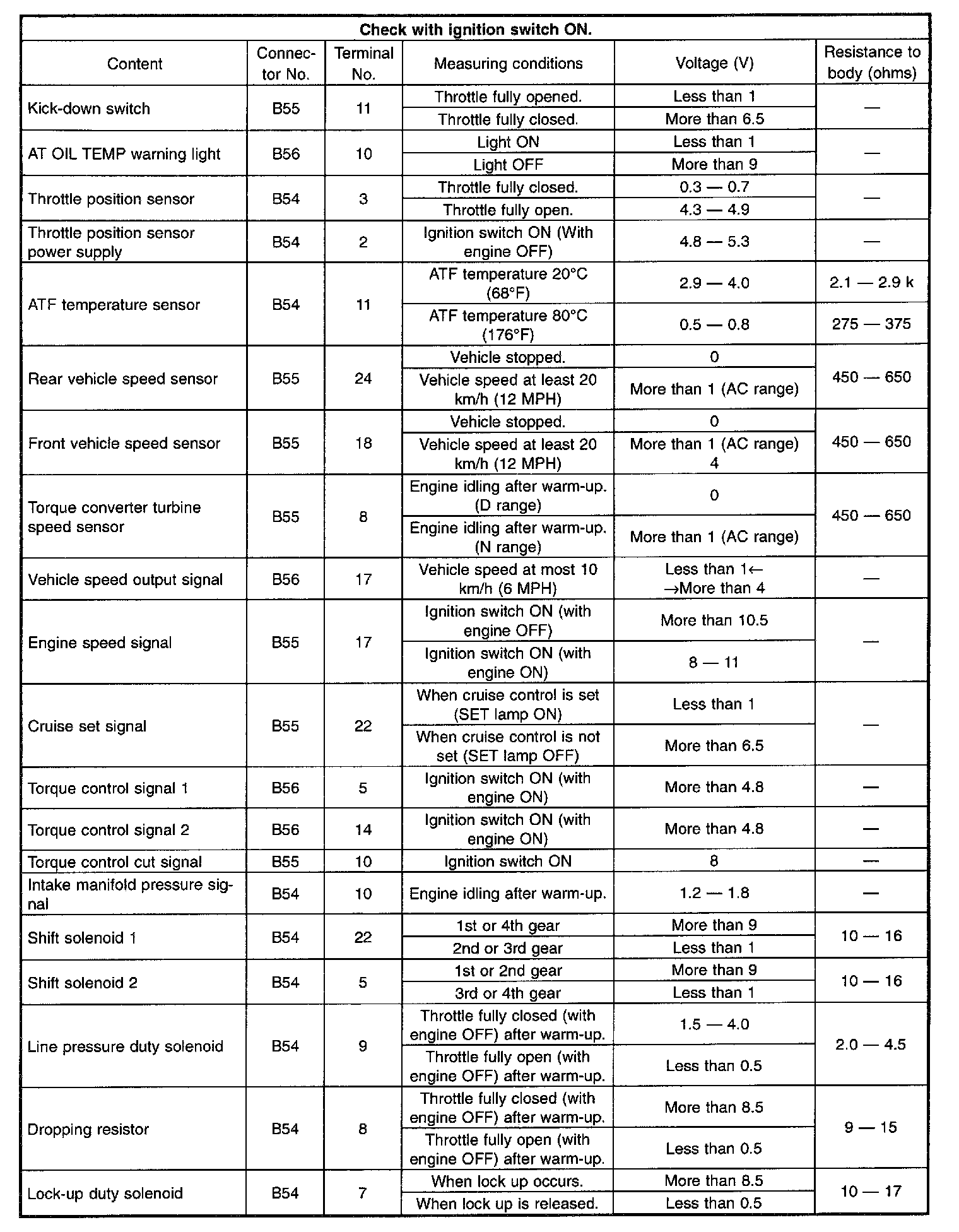

1. WITHOUT VDC SYSTEM

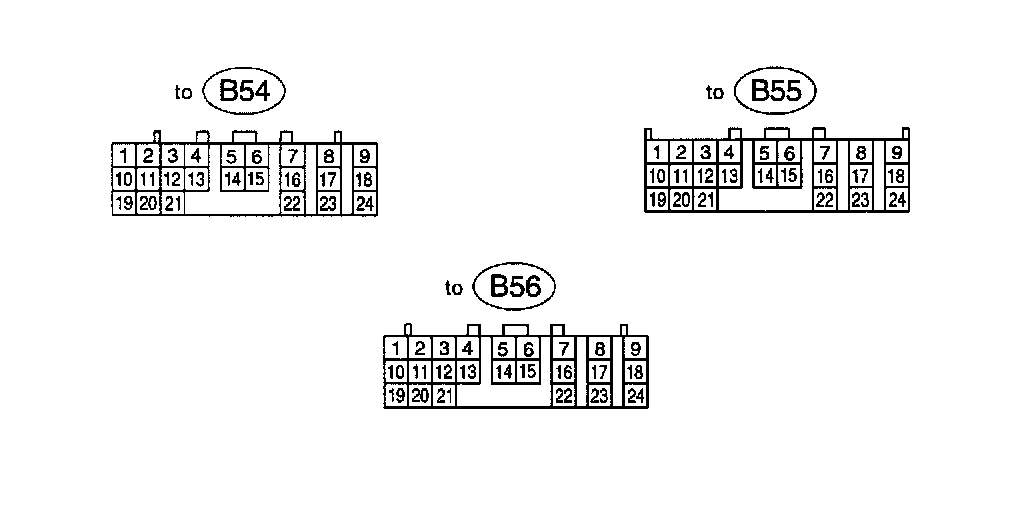

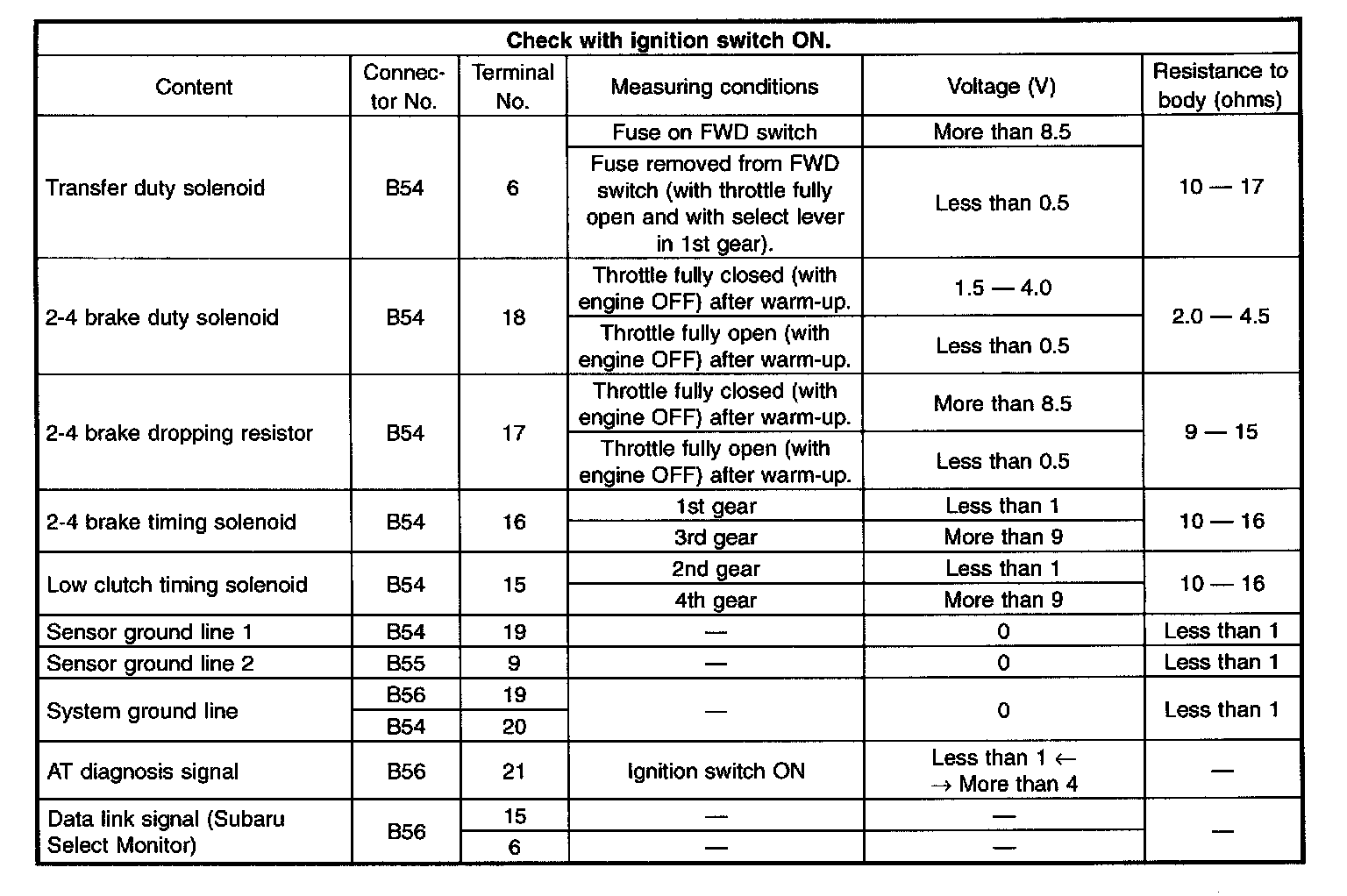

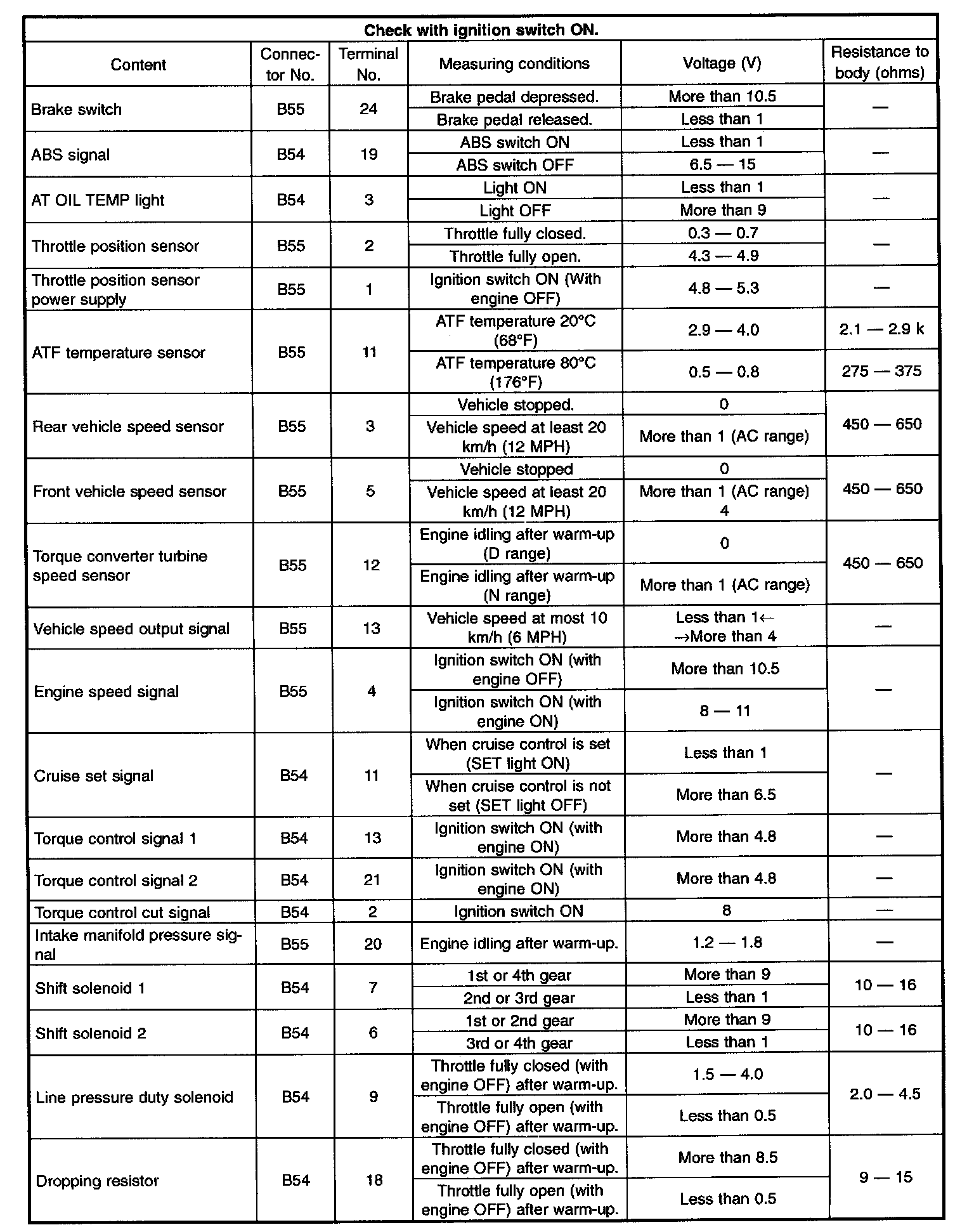

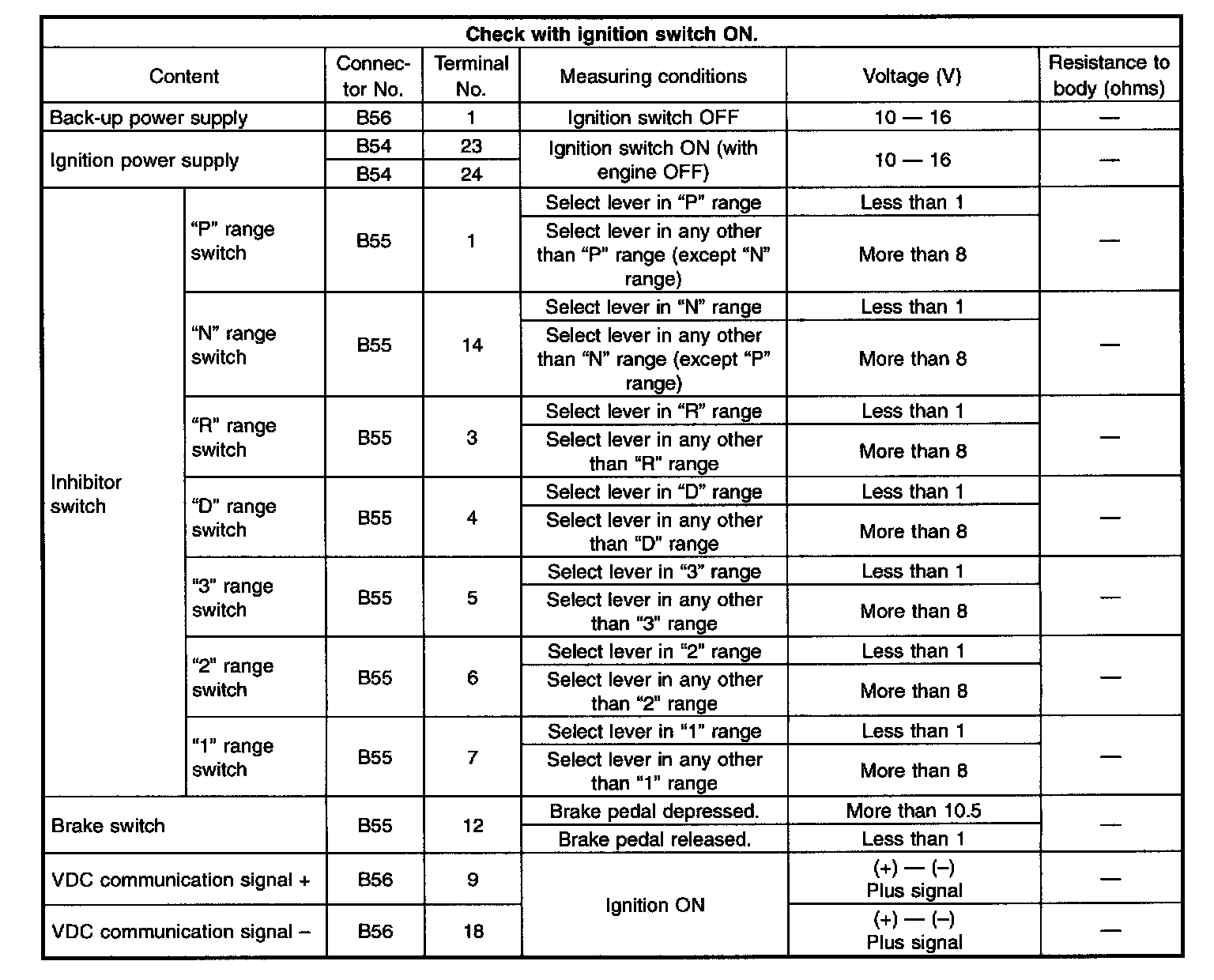

2. WITH VDC SYSTEM
