Shift Interlock Control Module: Testing and Inspection

1. AT SHIFT LOCK CONTROL MODULE POWER SUPPLY AND GROUND LINE

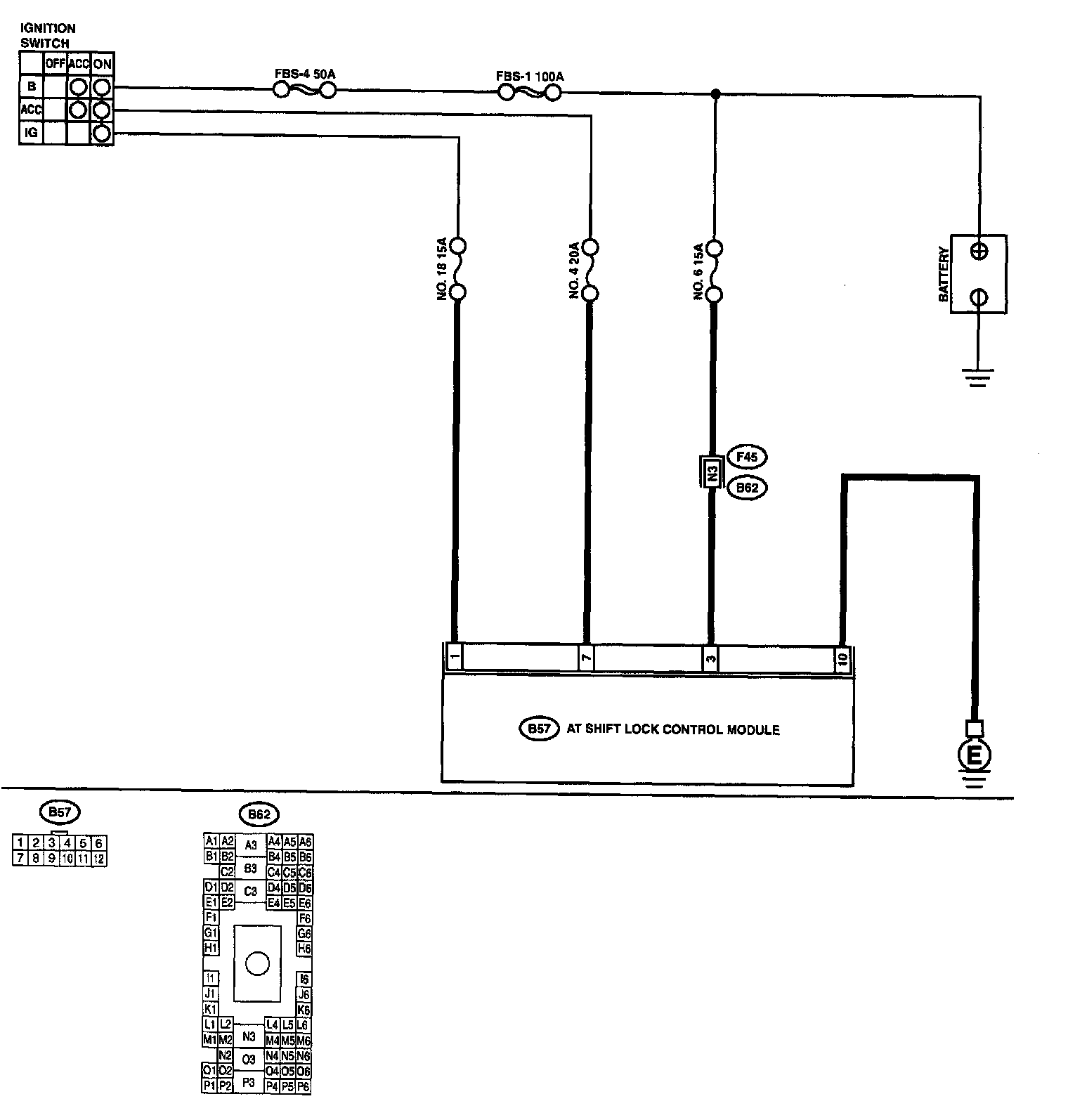

WIRING DIAGRAM

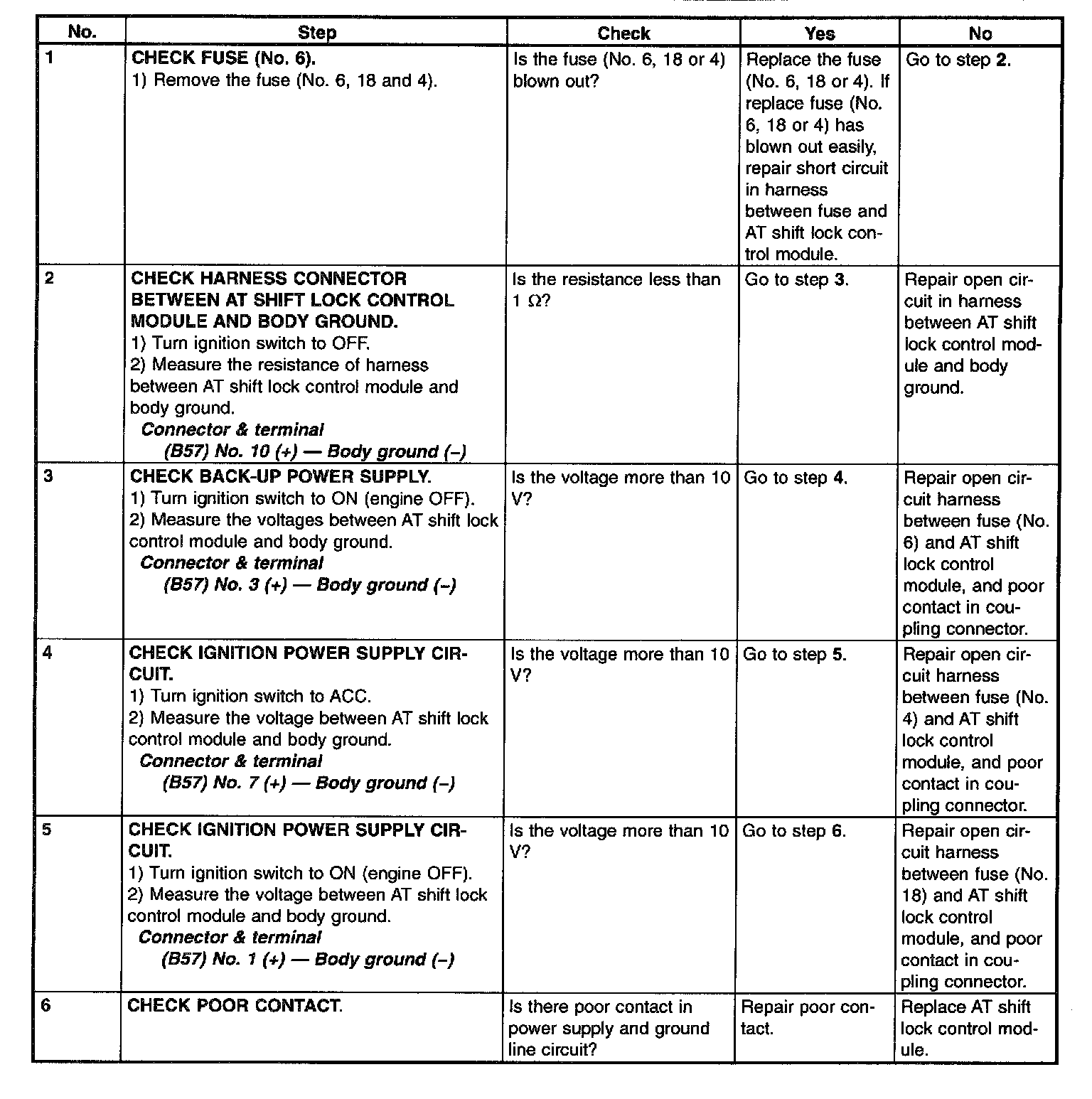

DIAGNOSTIC PROCEDURE
