Heater Core: Service and Repair

Heater Core

REMOVAL

1. Remove heater unit.

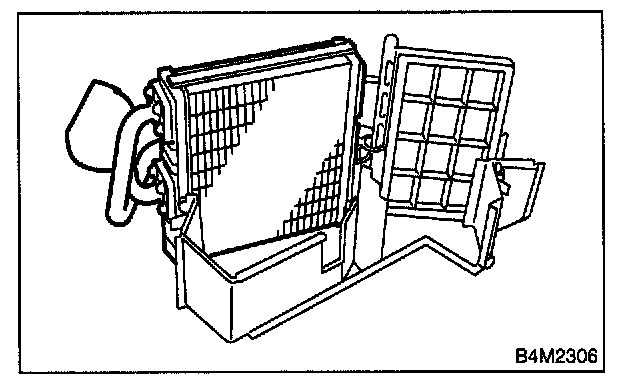

2. Remove screws to separate heater unit case.




3. Remove heater core.

INSTALLATION
Install in the reverse order of removal.
