System Diagram

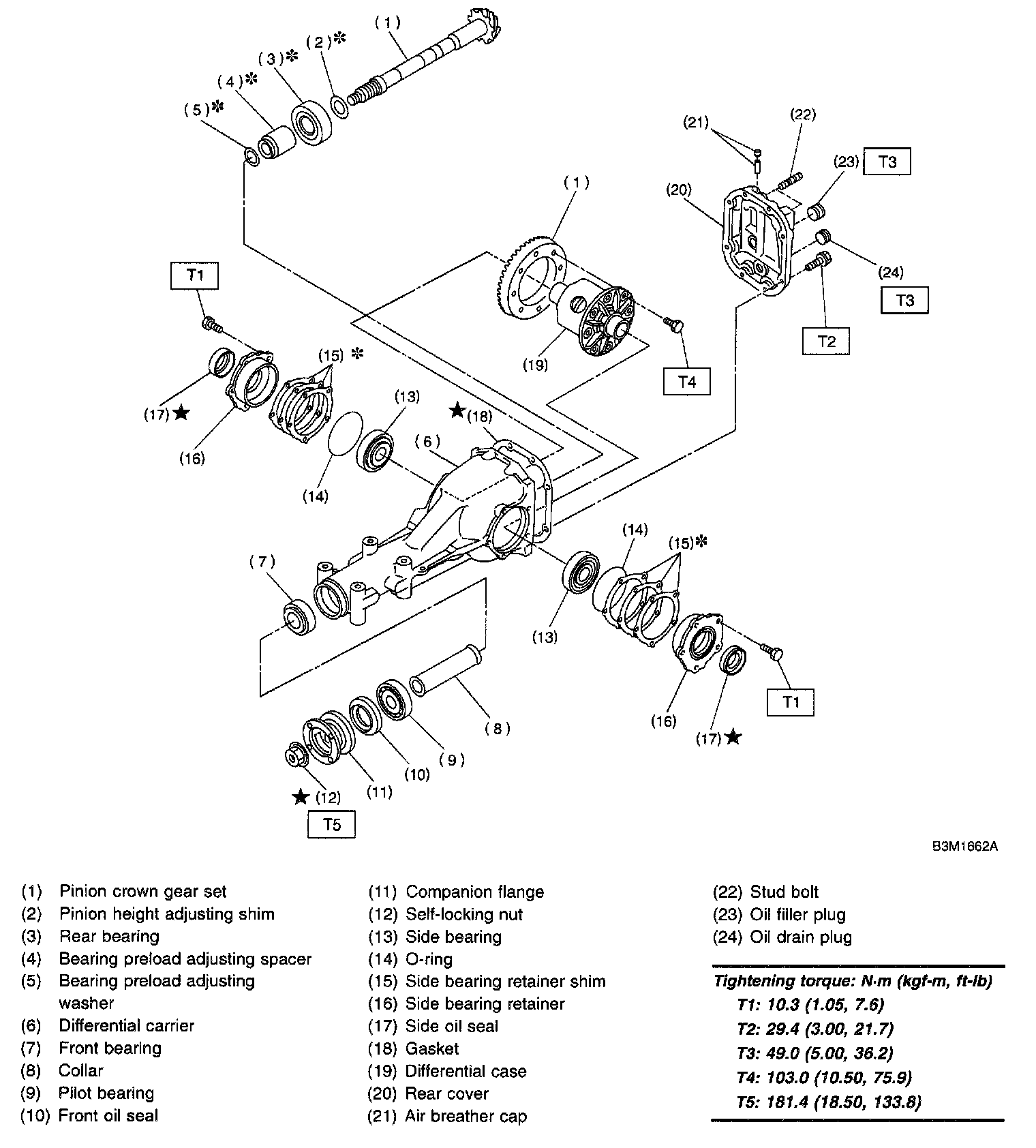

1. REAR DIFFERENTIAL FOR T-TYPE WITHOUT LSD





2. REAR DIFFERENTIAL FOR T-TYPE WITH LSD





3. REAR DIFFERENTIAL FOR VA-TYPE
