Home >> Subaru >> 2001 >> Forester L F4-2.5L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Module >> Testing and Inspection

Alarm Module: Testing and Inspection

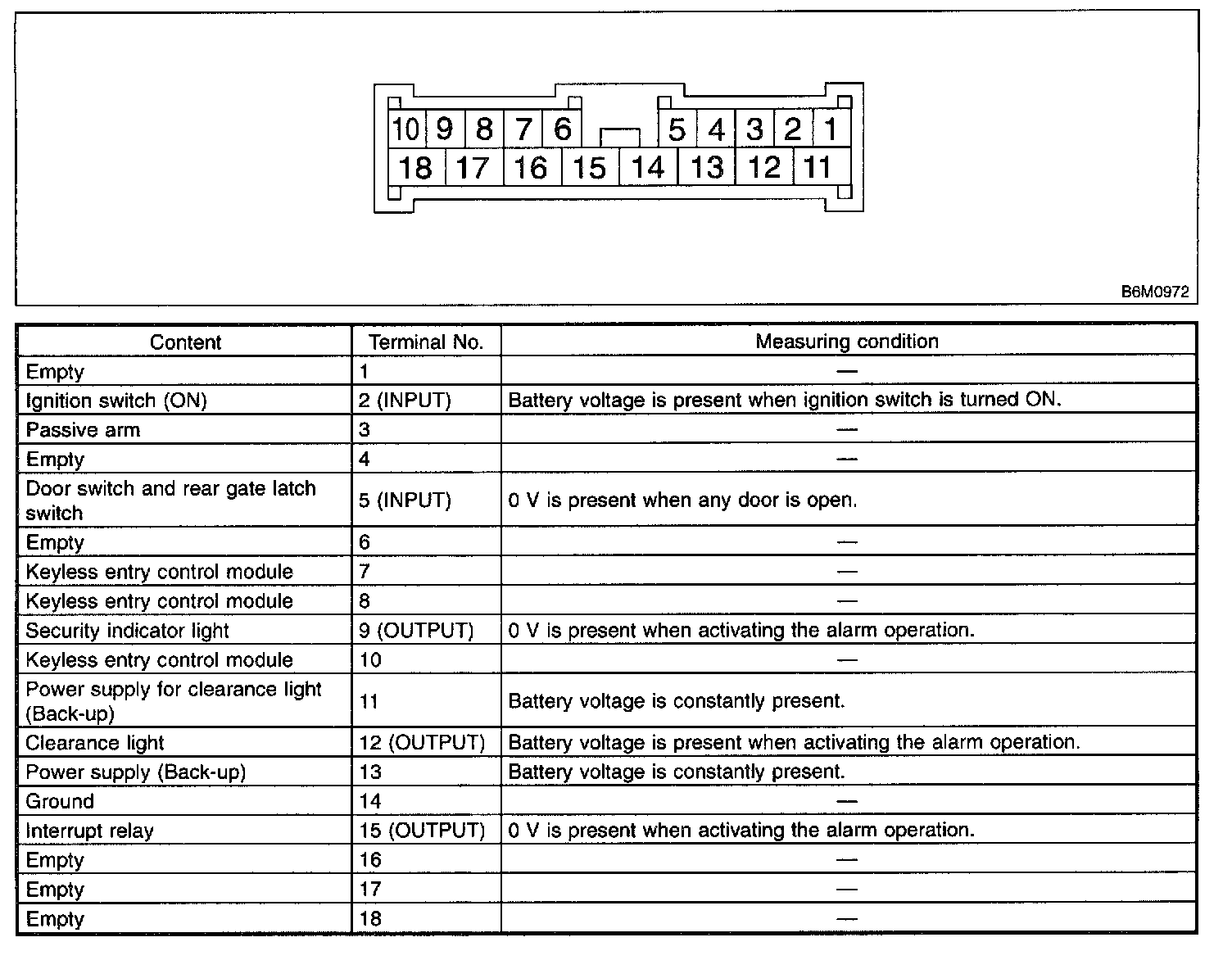

Control Module I/O Signal:
