Control Valve And Harness Routing

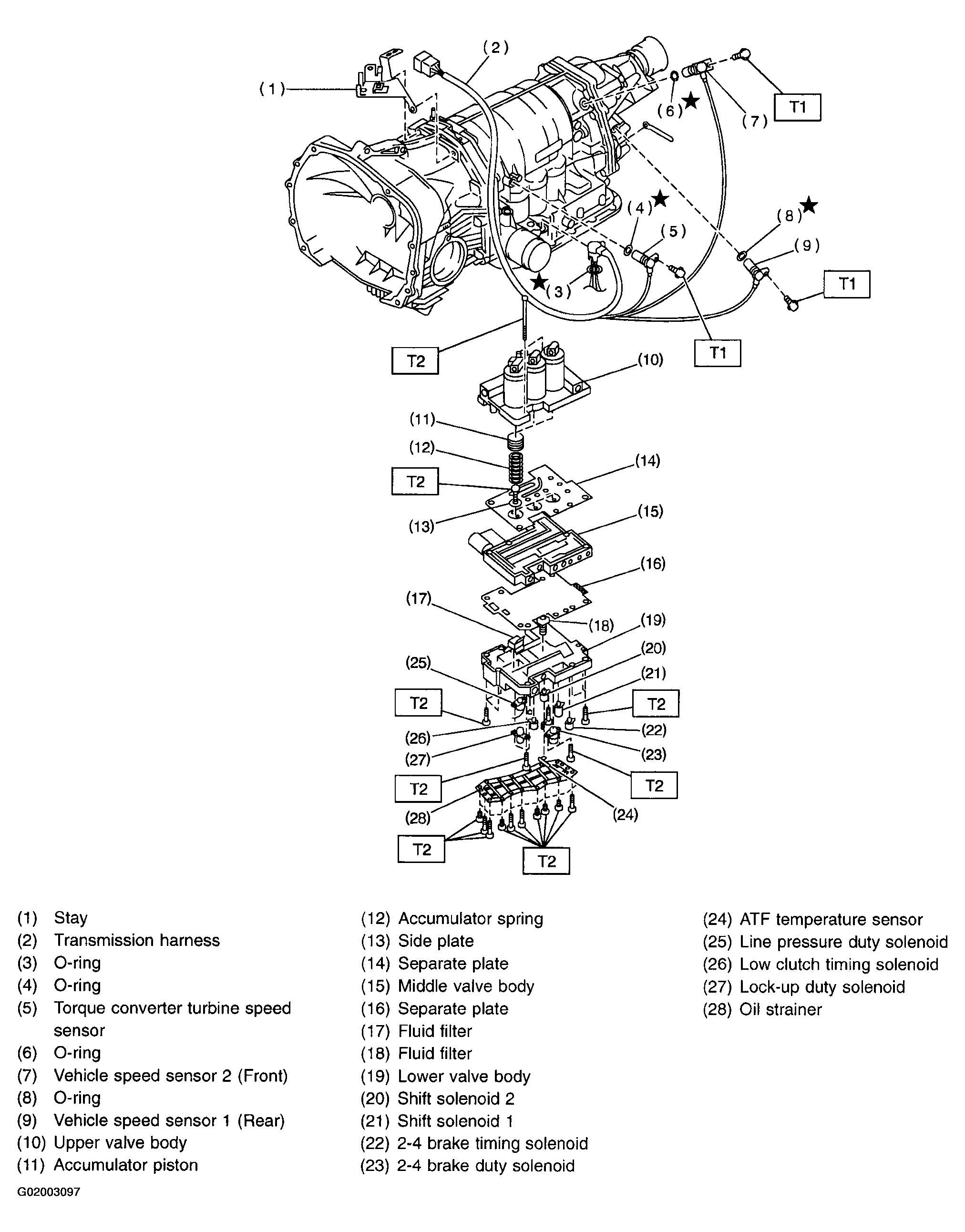

Fig 1: Identifying Control Valve & Harness Routing Components

G02003097

Tightening torque: N.m (kg-m, ft-lb)

T1: 7+/-1 (0.7+/-0.1, 5.1+/-0.7)

T2: 8+/-1 (0.8+/-0.1, 5.8+/-0.7)
