Control Valve Body Assembly: Installation

WARNING: This page is about a different car, the 2001 Subaru Outback, 2001 Subaru Legacy, 2001 Subaru Impreza, and 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Set the select lever in range "N".
Align the groove of the manual valve to the protrusion of the manual lever, and then install the control valve body assembly.
Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)

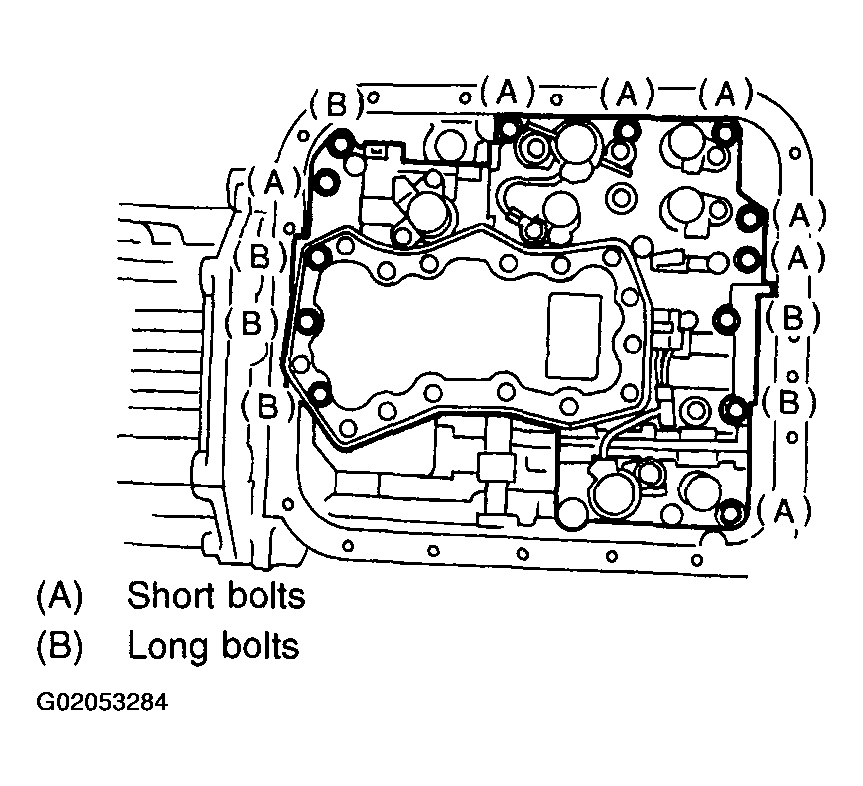

Fig 1: Identifying Valve Body Bolts
Tighten the valve body to the specified torque.
CAUTION: Tighten the control valve mounting bolts evenly.

Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Connect all connectors.

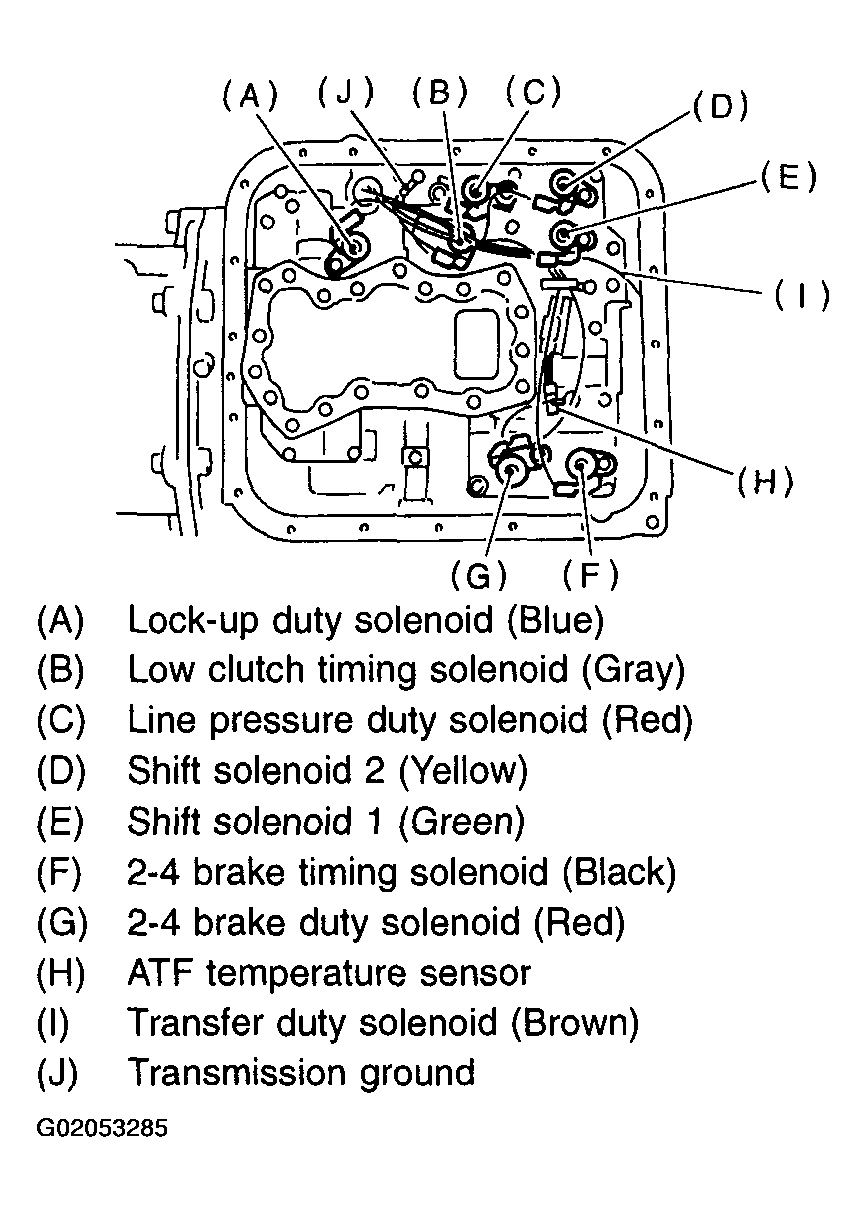

Fig 2: Connecting All Connectors
Attach the magnet at the specified position.

Fig 3: Attaching Magnet At Specified Position
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Liquid gasket:
1. THREE BOND 1217B
Fig 4: Applying Liquid Gasket
Install the oil pan to the transmission case assembly, and secure with 20 bolts.
NOTE: Tighten the bolts evenly.

Tightening torque:
1. 4.9 N.m (0.50 kgf-m, 3.6 ft-lb)
Fig 5: Installing Oil Pan
Turn over the transmission case to its original position.
Install air breather hose. See INSTALLATION .
Install inhibitor switch and adjust the inhibitor switch. See INHIBITOR SWITCH .
Insert inhibitor switch and transmission connector into stay.

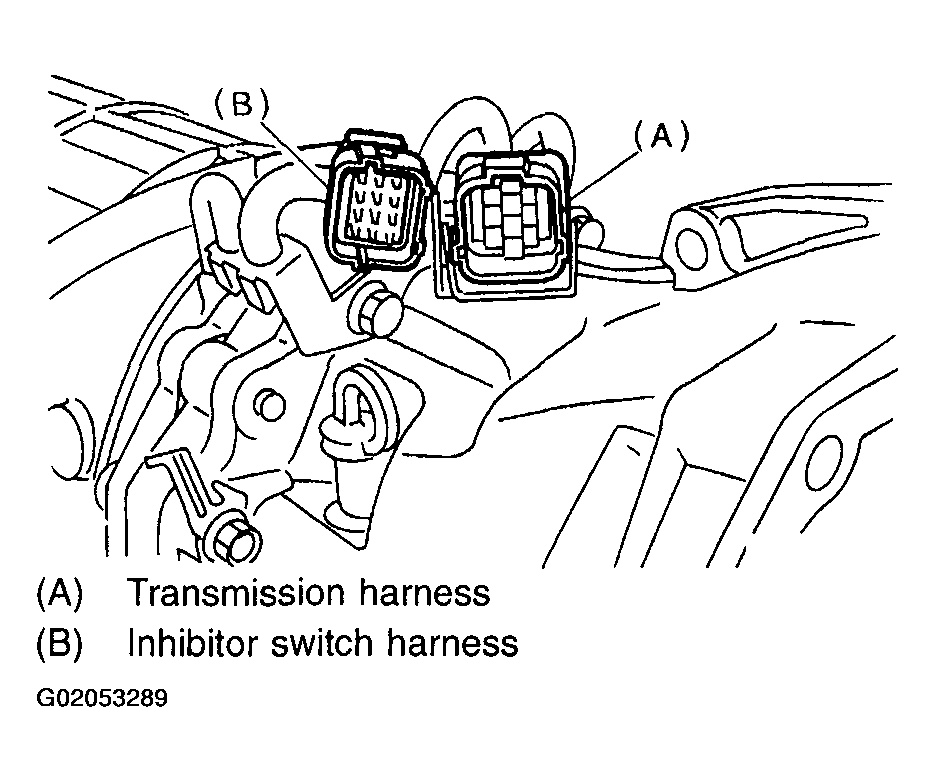

Fig 6: Inserting Inhibitor Switch & Transmission Connector
Insert the input shaft while turning lightly by hand.
CAUTION: Be careful not to damage the bushing.

Normal protrusion A:
1. 50 - 55 mm (1.97 - 2.17 in)

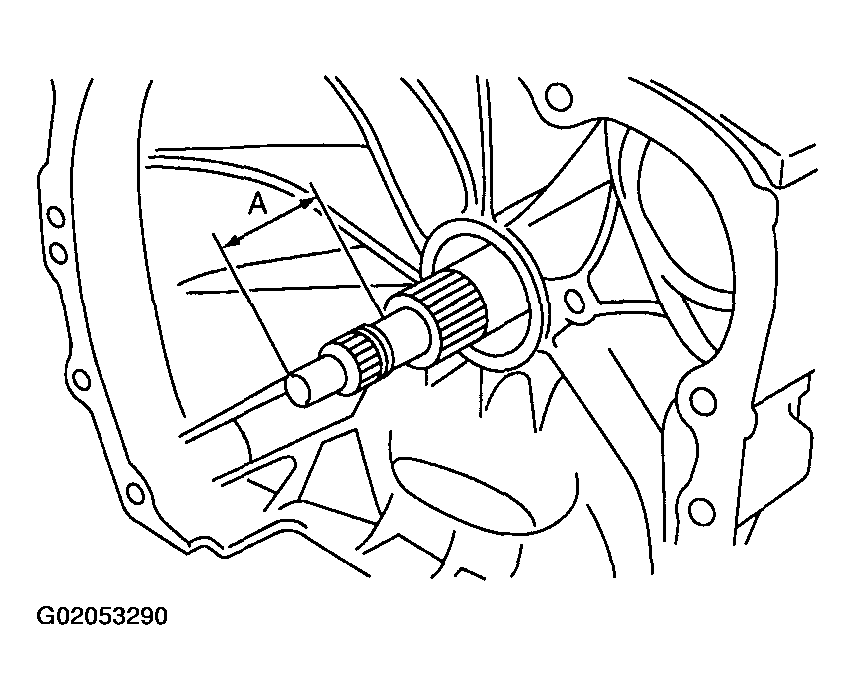

Fig 7: Identifying Protrusion "A"
Install the torque converter clutch assembly. See INSTALLATION .
