Control Valve Body Assembly: Assembly

WARNING: This page is about a different car, the 2001 Subaru Outback, 2001 Subaru Legacy, 2001 Subaru Impreza, and 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

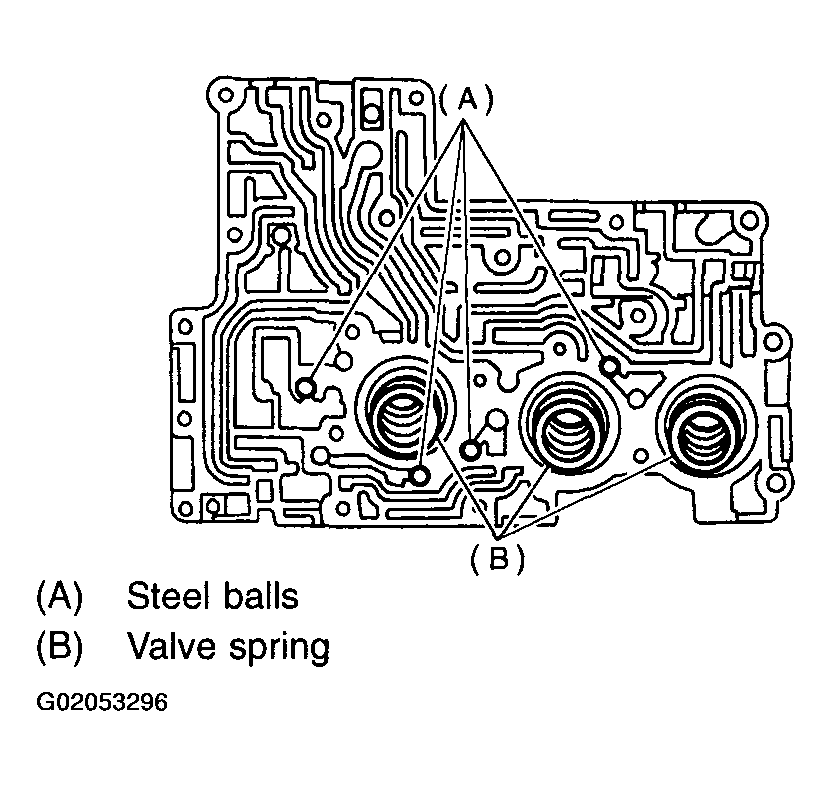

Install accumulator pistons, valve springs and steel balls to upper valve body.
NOTE: Insert steel balls in their proper positions.

Fig 1: Installing Accumulator Valve Springs & Steel Balls To Upper Valve Body

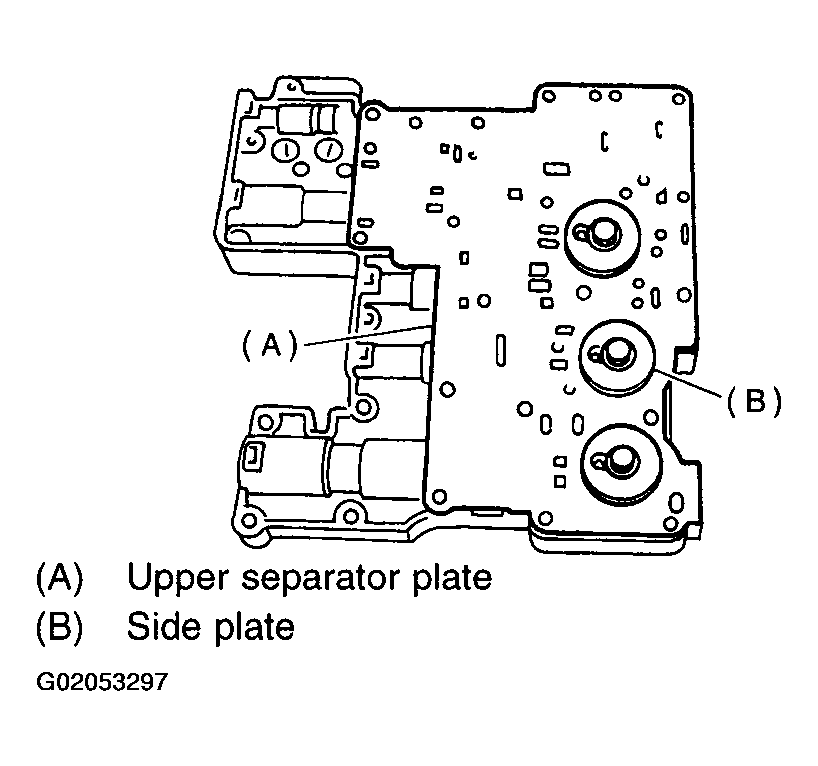

Install support plate and upper separator plate to middle valve body.
NOTE: Align the hole in side plate with the hole in separator plate.

Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Fig 2: Installing Support Plate & Upper Separator Plate

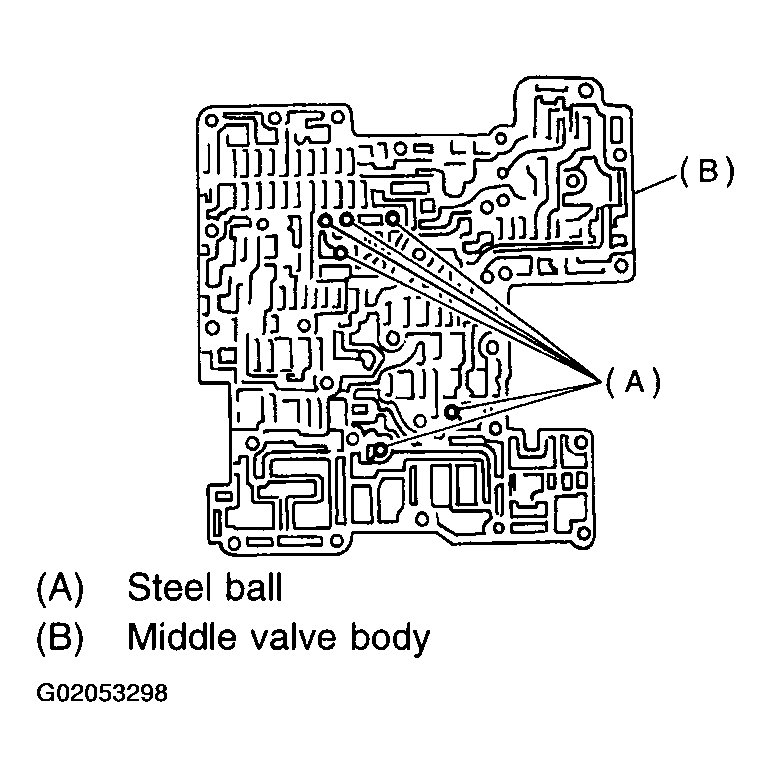

Install steel balls to middle valve body.
NOTE: Insert steel balls in their proper positions.

Fig 3: Installing Steel Balls To Middle Valve Body

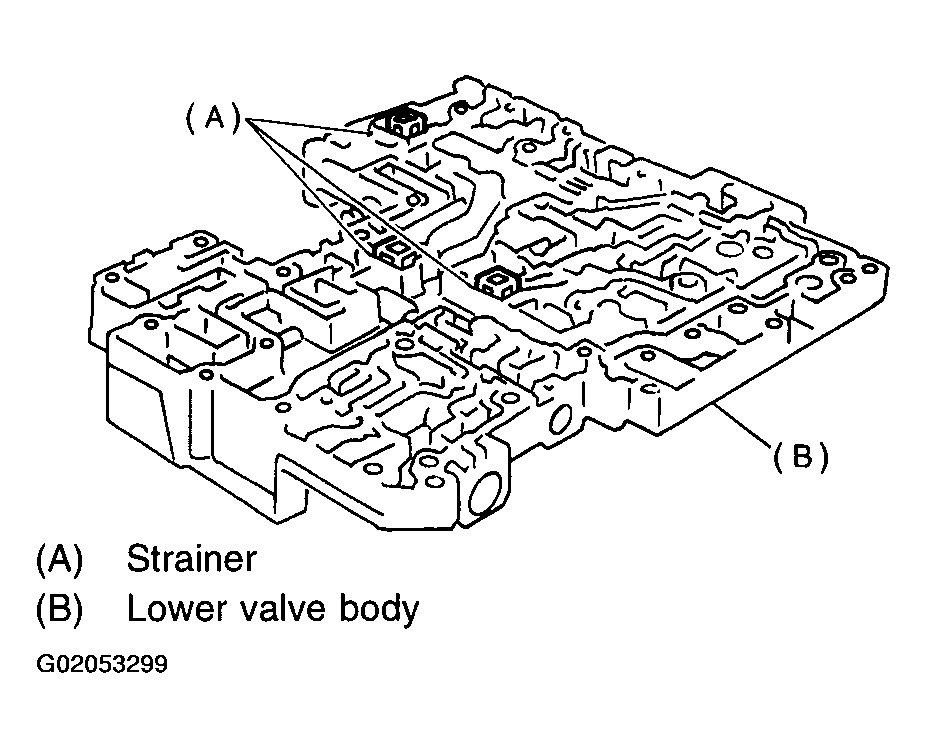

Install three filters to lower valve body.
CAUTION: Pay attention to the location of filters.

Fig 4: Installing Filters To Lower Valve Body

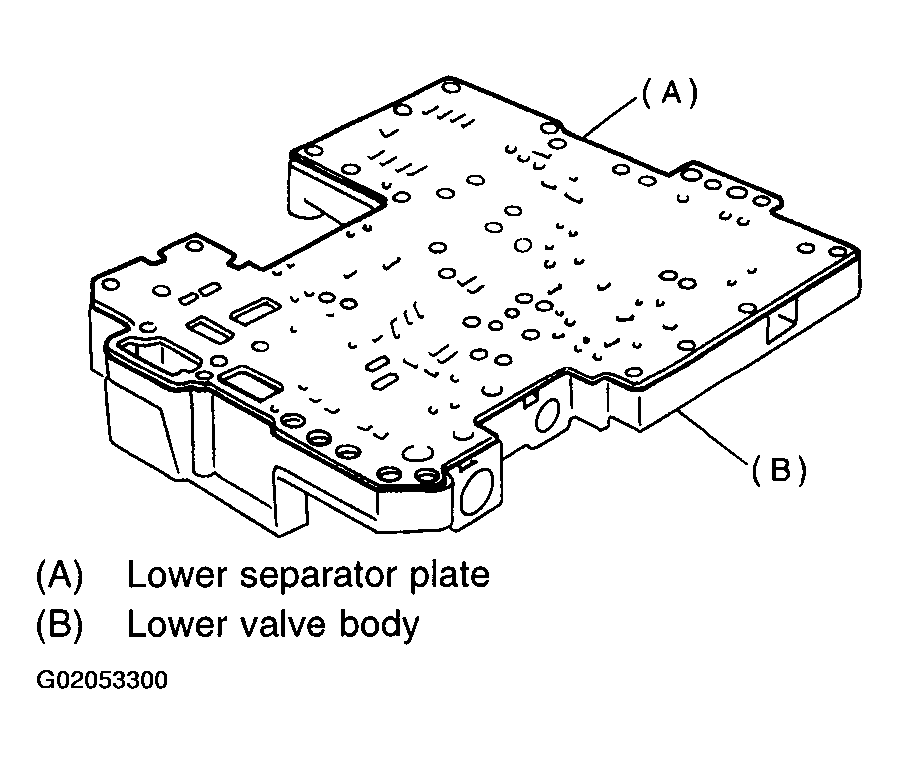

Install lower separate plate to lower valve body.

Fig 5: Installing Lower Separate Plate

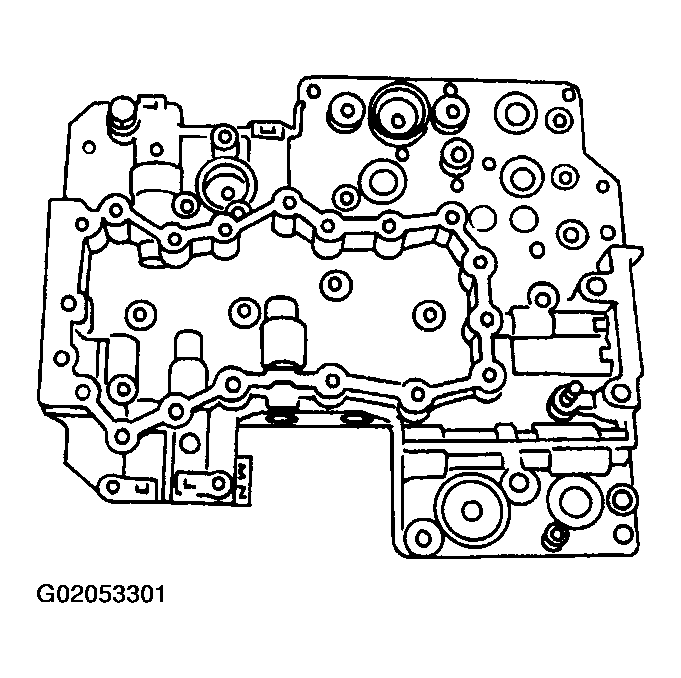

Temporarily assemble valve body.
CAUTION: Be careful not to drop the middle valve body and upper body interior steel ball, or the lower body filter.

Fig 6: Temporarily Assembling Valve Body

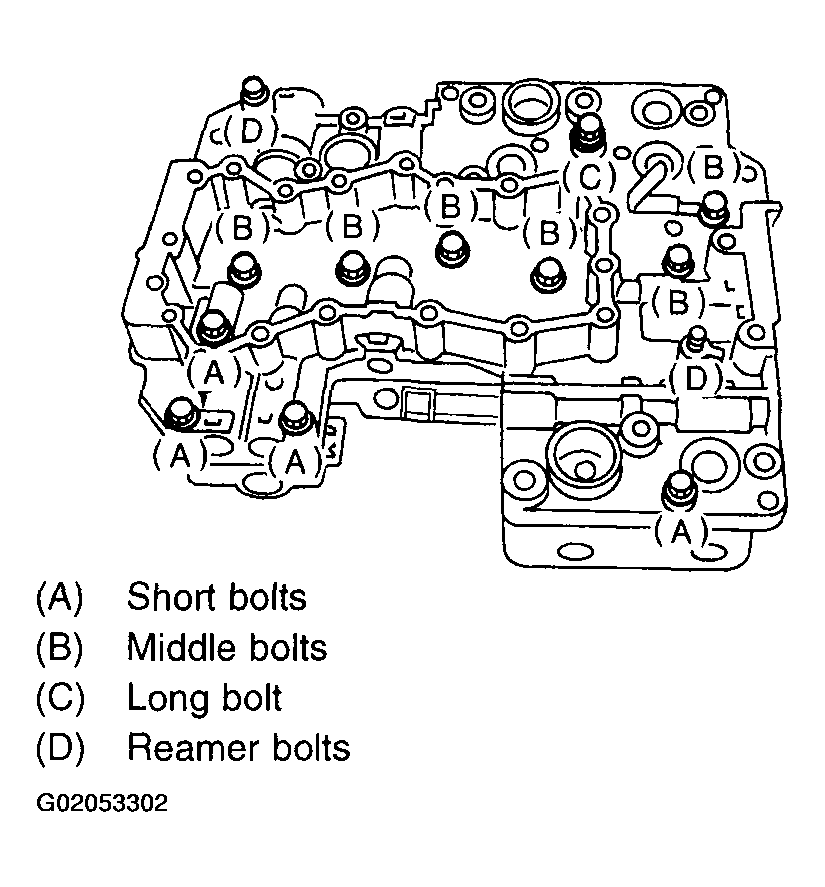

Tighten bolts.
Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Fig 7: Tightening Bolts

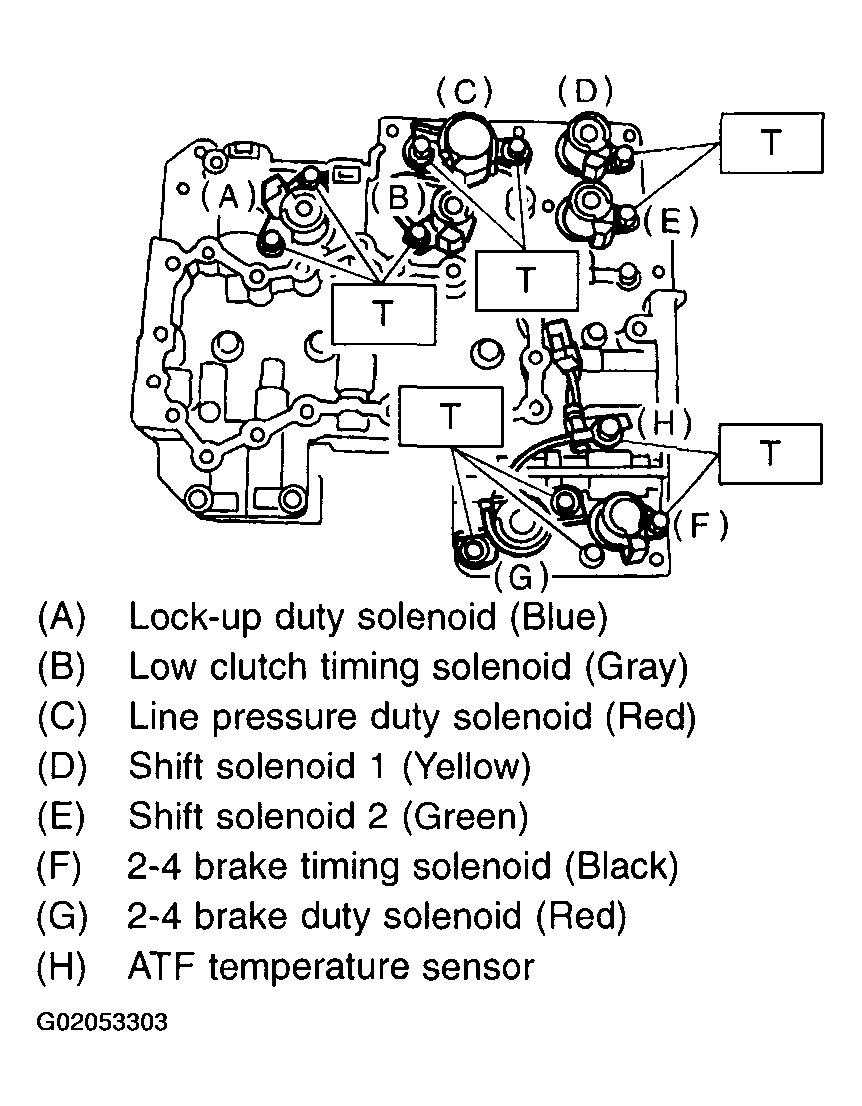

Install the sensor, solenoids and duty solenoids.
Tightening torque:
1. T: 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Fig 8: Installing Sensor, Solenoids & Duty Solenoids
Install oil strainer to lower valve body.
Tightening torque:
1. 8 N.m (0.8 kgf-m, 5.8 ft-lb)
