AT Vehicles
AT Vehicles
ECM Connector View:

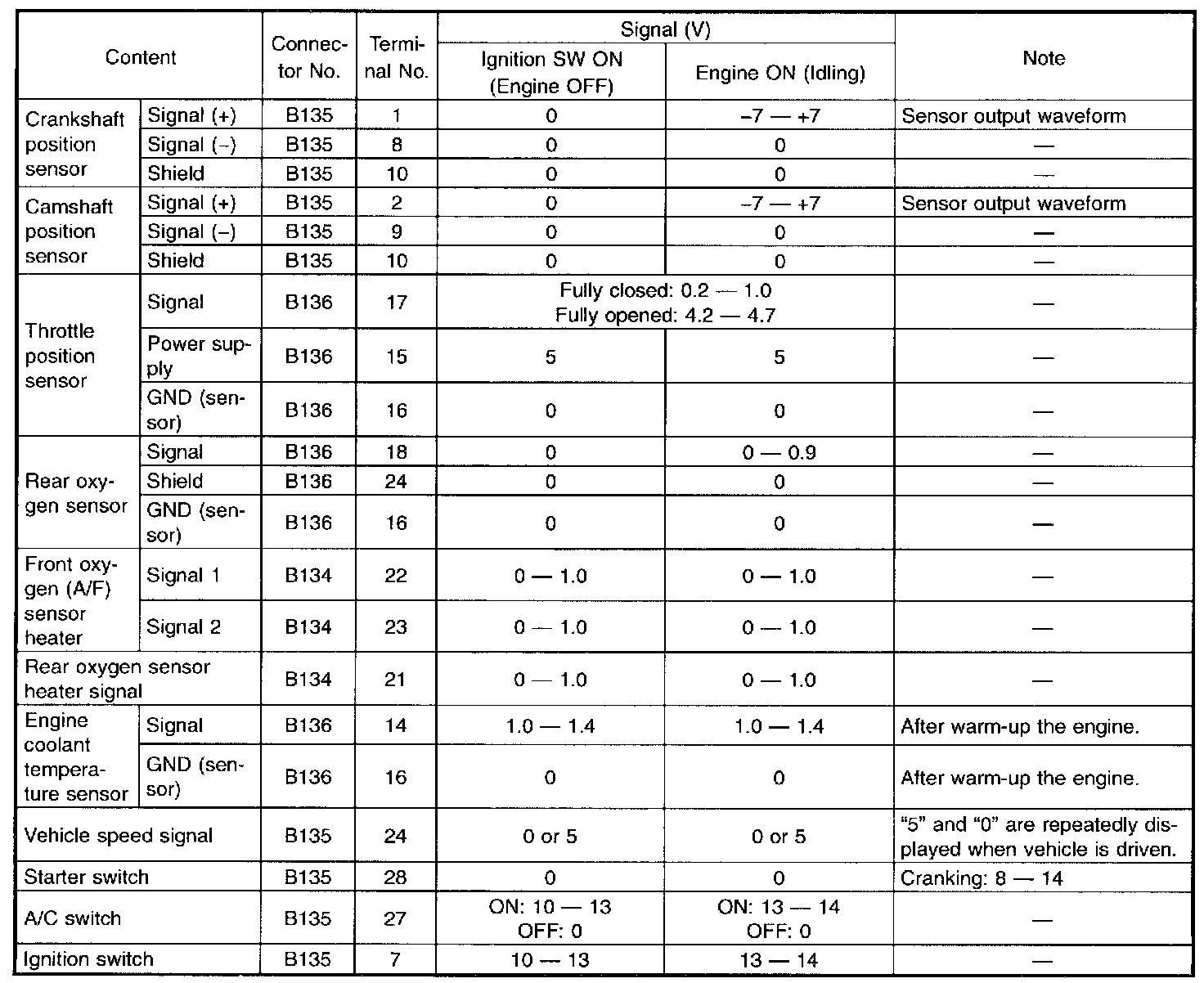

ECM Connector Pin-Outs (Part 1 Of 3):

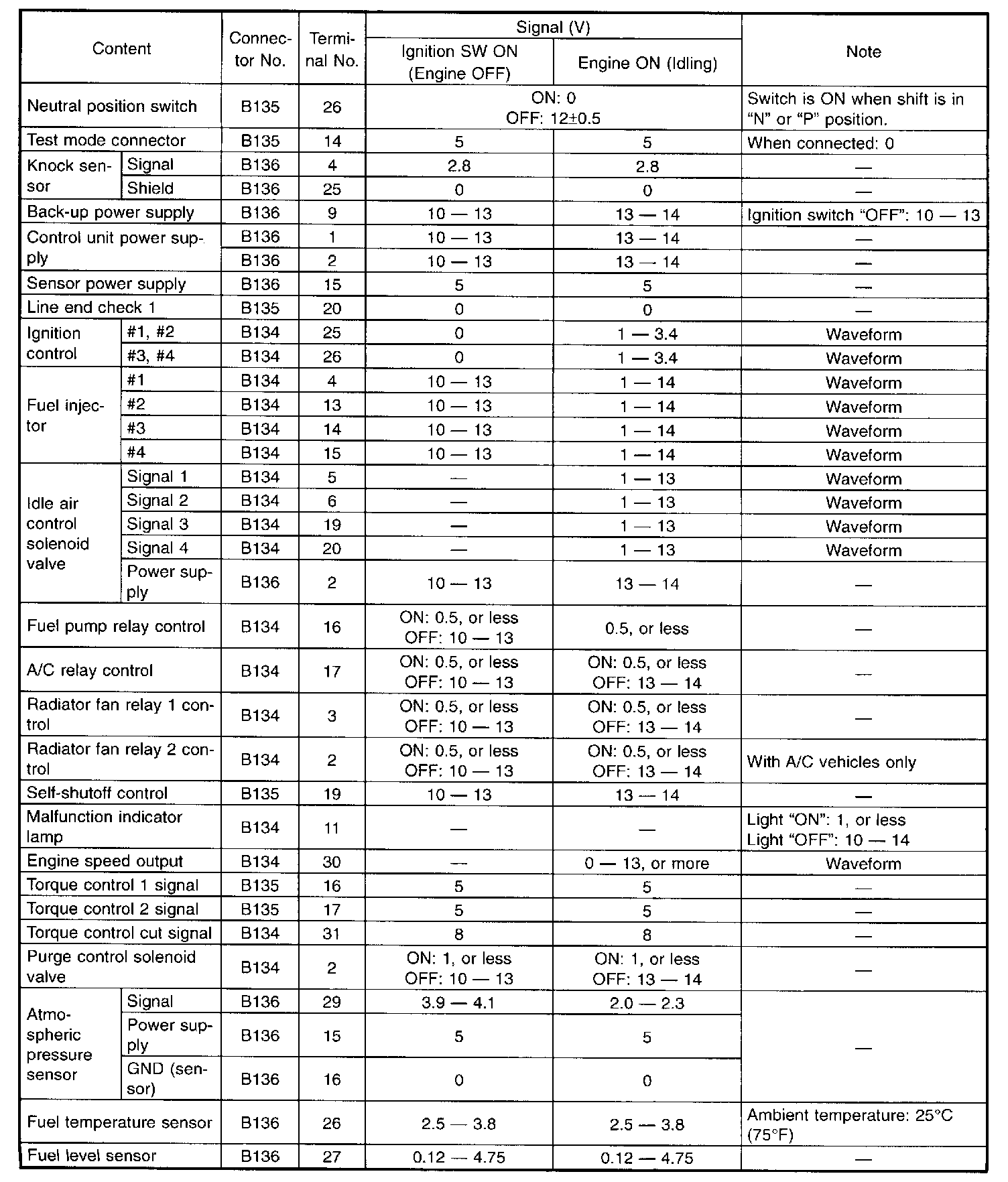

ECM Connector Pin-Outs (Part 2 Of 3):

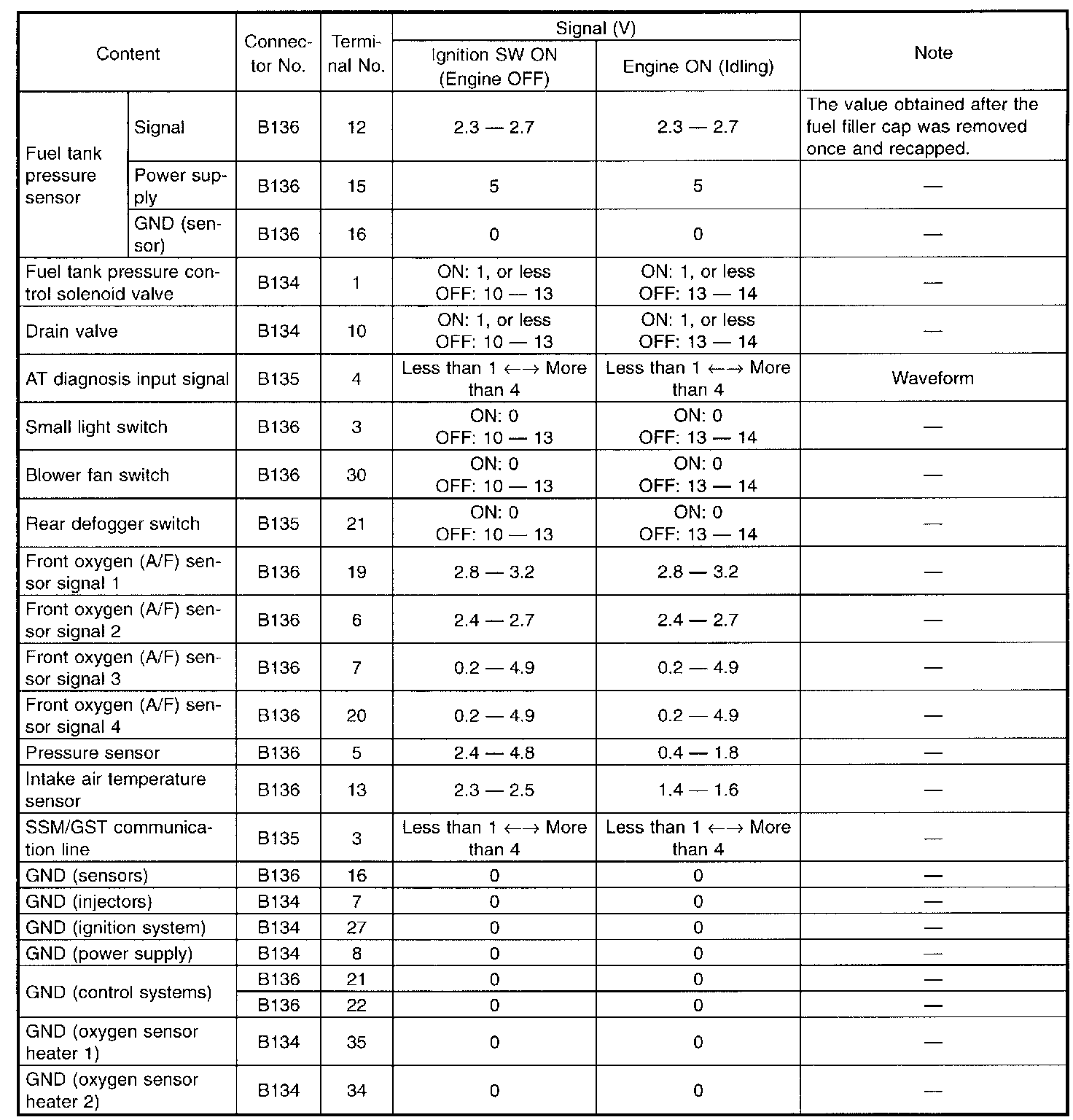

ECM Connector Pin-Outs (Part 3 Of 3):
