Differential Assembly

2. Rear Differential Assembly

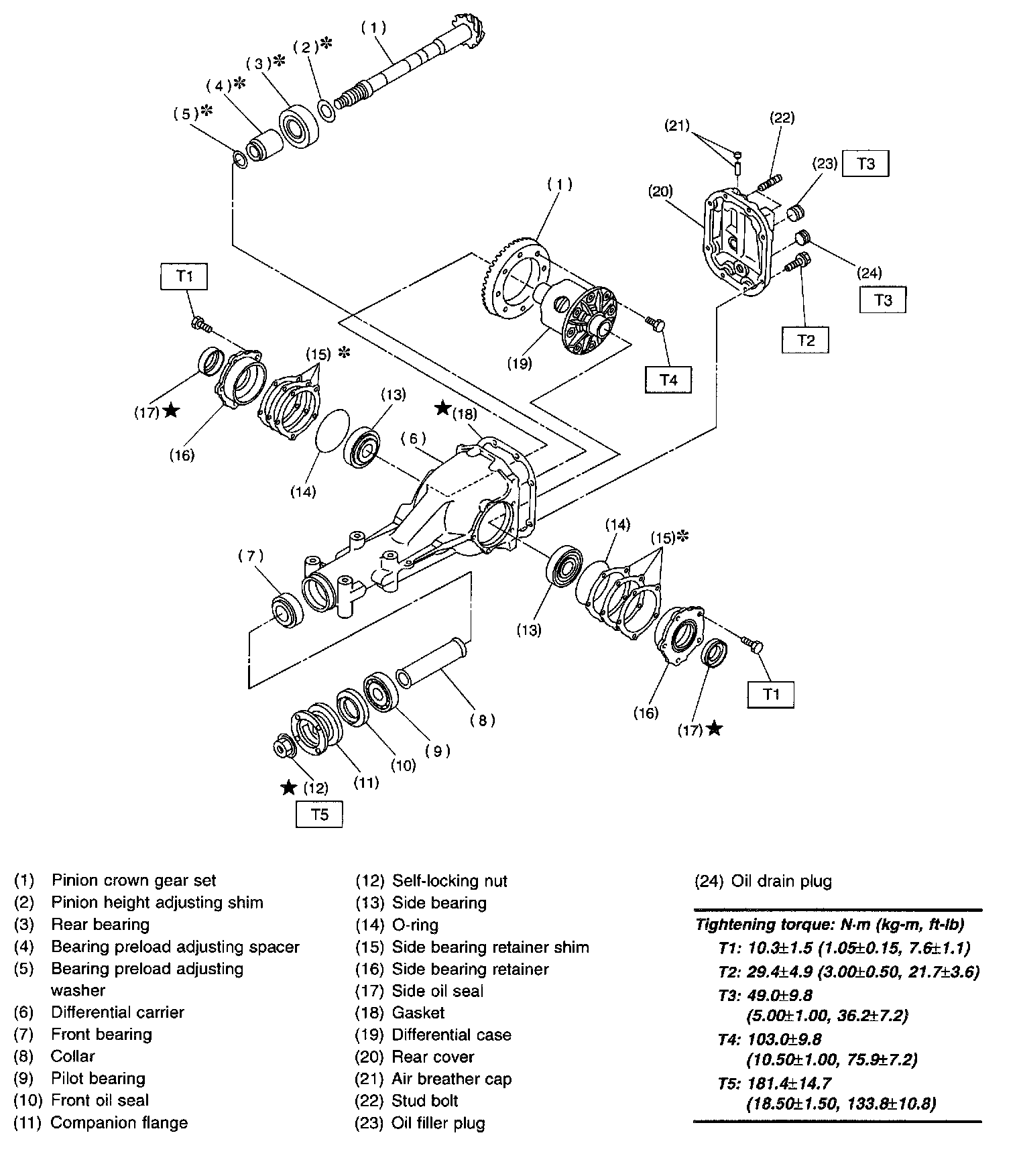

A: WITHOUT LSD

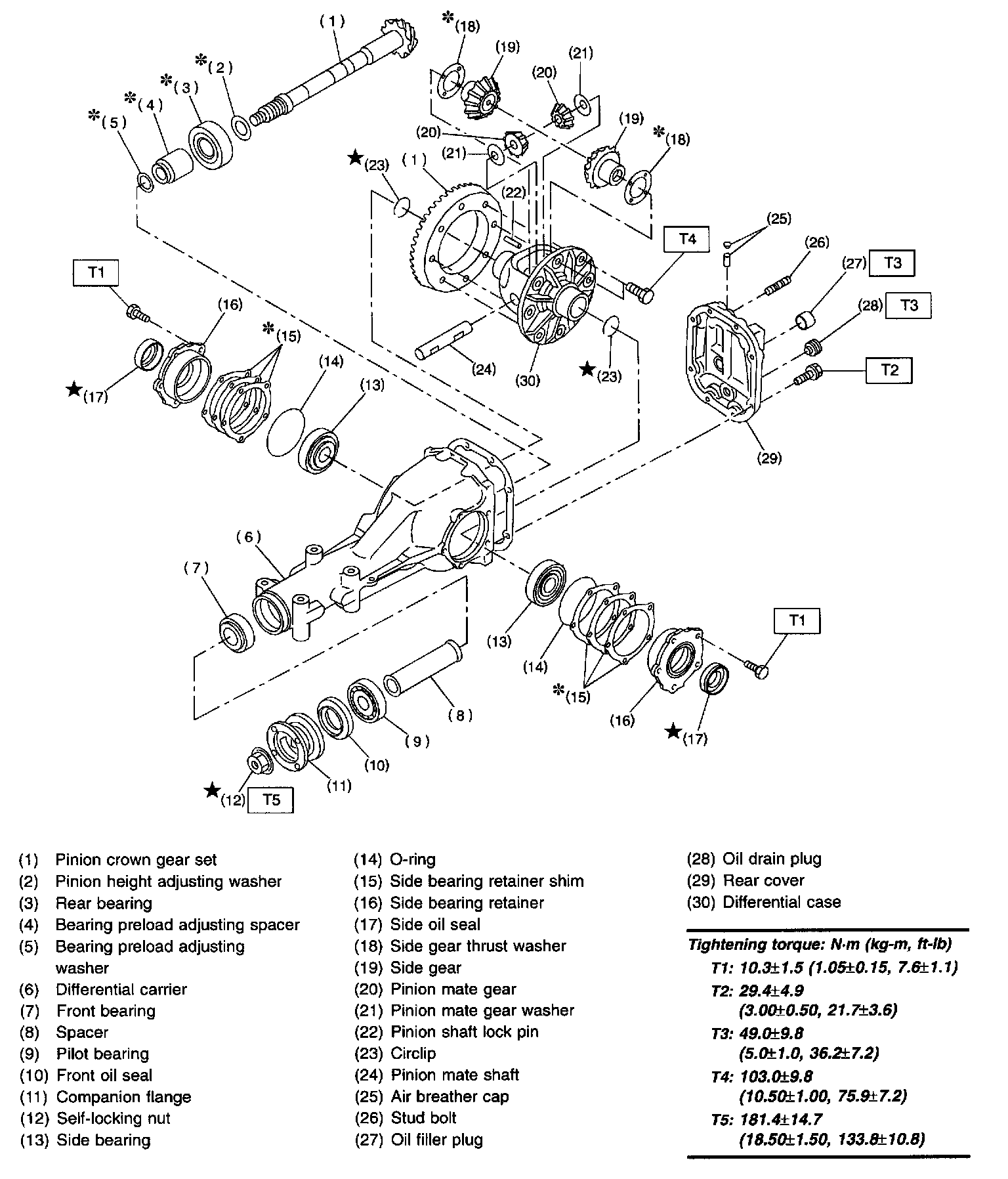

B: WITH LSD

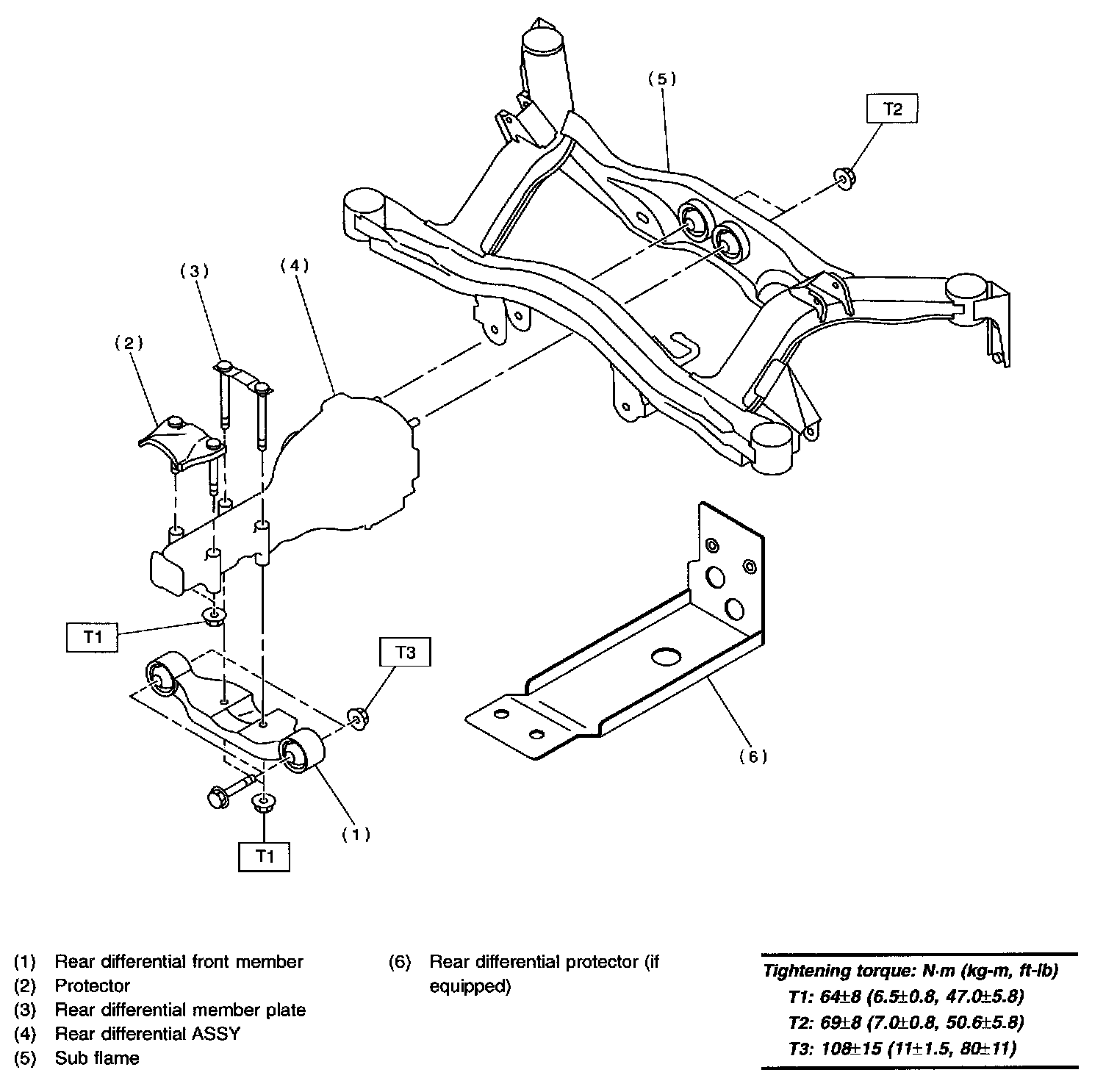

3. Rear Differential Mounting System
